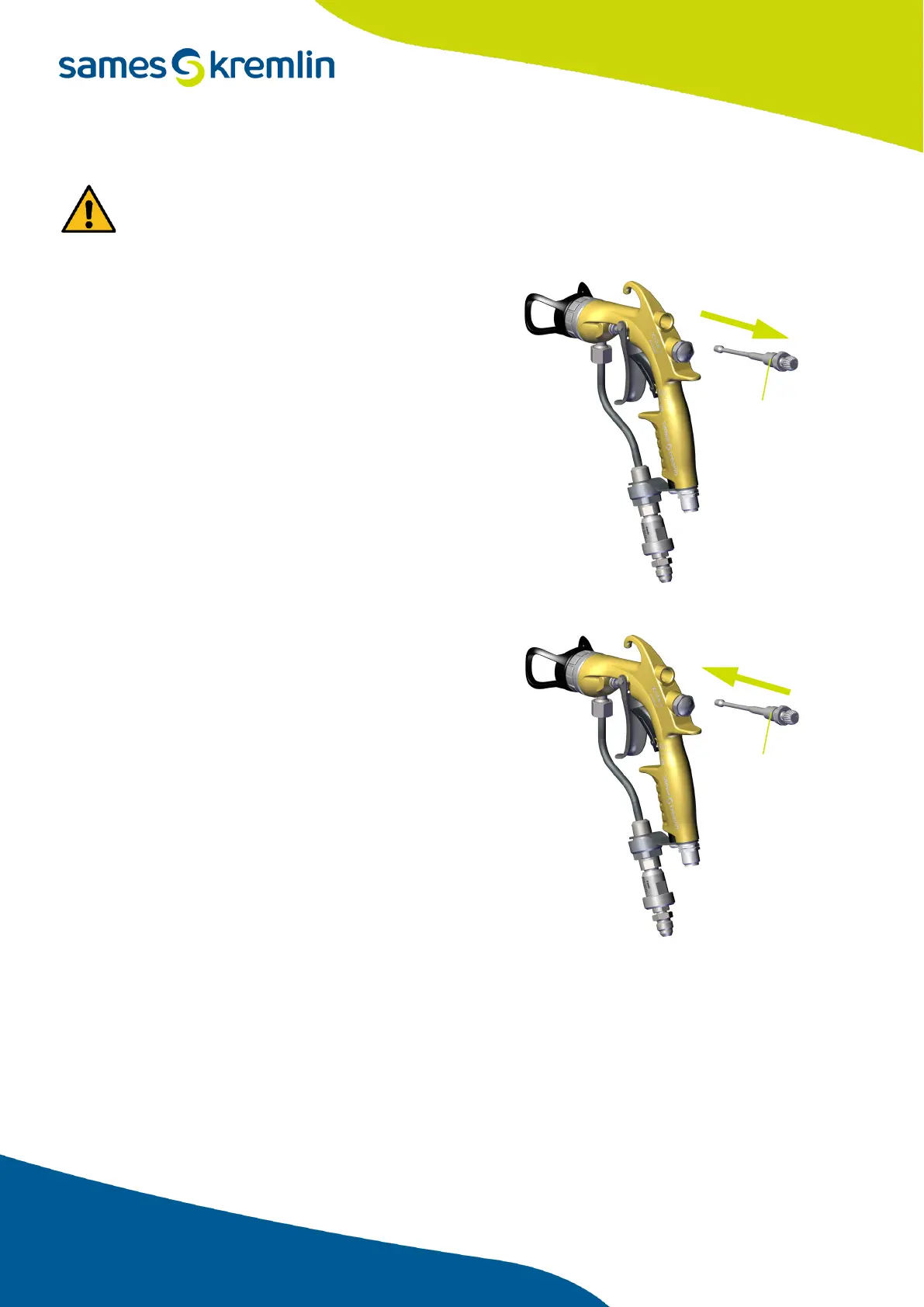

6.4.7. Procedure D1: Disassembly of the fan adjustment valve (15)
ATTENTION: Before each installation or disassembly of the fan adjustment valve (15) in the gun, check that
it is in the open position.
• Step 1:
Unscrew the fan adjustment valve (15) by means of the
wrench supplied with the gun.
6.4.8. Procedure D2: Reassembly of the fan adjustment valve
(15)
• Step 1:
Screw the new fan adjustment valve (15) by means of the
wrench.
Tightening torque: 10 Nm / 7.37 ft-lb.
15
15
