27
Member of Exel group
DRT582221110
B - 2023/01
5.2. Installation
Note: The equipments are tested in air and water to check the correct operation and the tightness of all components.
ATTENTION: The 1 m / 39.37’’ distance indicated in this diagram is given as for information purposes only
and hold harmless to Sames.
The exact delimitation of the zones is the express responsibility of the user, depending on the materials
used, the environment and the conditions of use.
The 1 m / 39.37’’ distance can be modified if the analysis conducted by the user requires it.
By means of an antistatic hose, connect the gun to an air regulator capable of supplying at least 2 bar / 29
psi and a maximum of 6 bar / 87 psi.

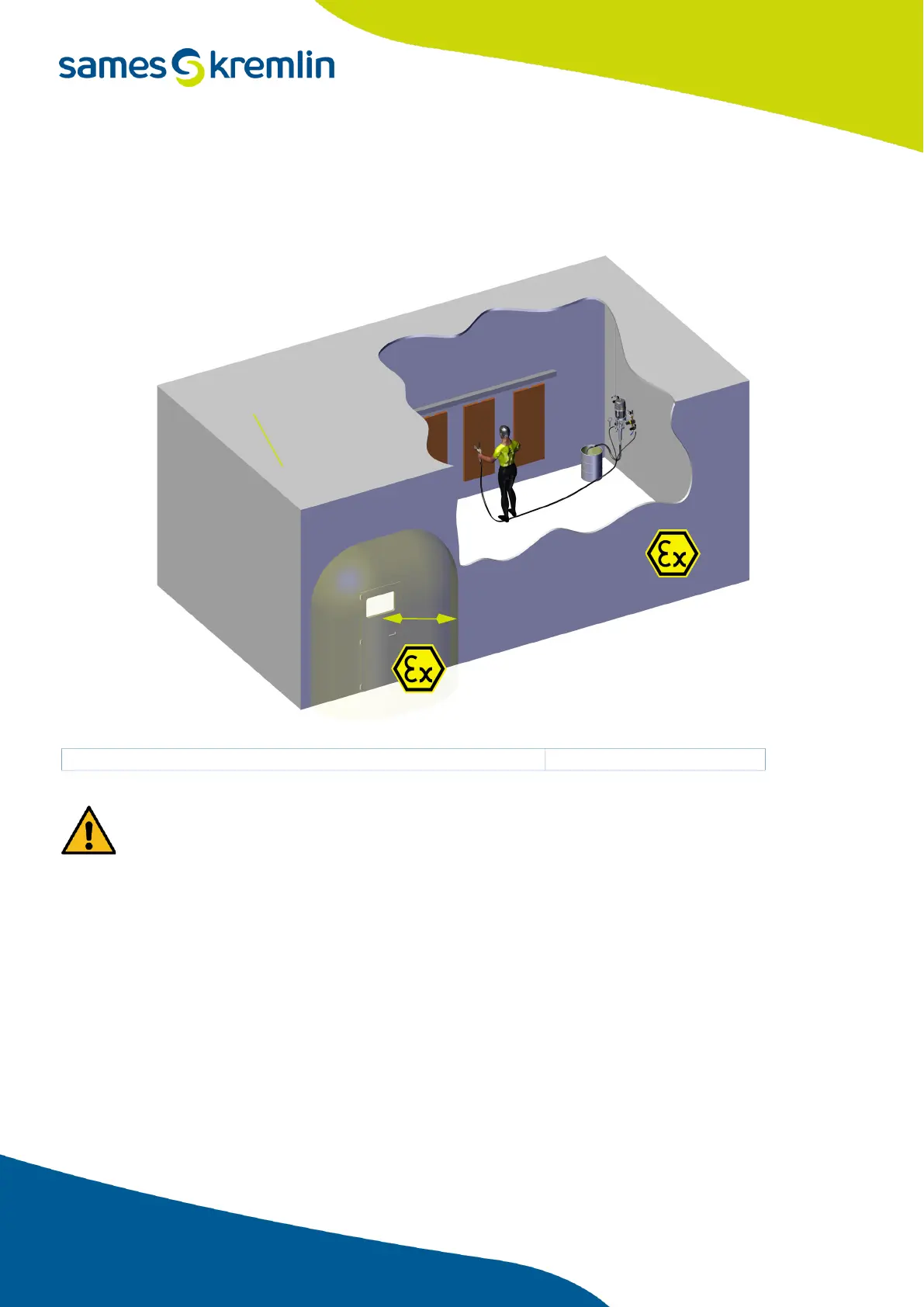

A - Zone 1 (Z1) or zone 2 (Z2) explosive zone: spray booth B - Non-explosive zone
A
Inside the spray
booth Zone 1
Outside the
spray booth
Safe zone
B
1m
