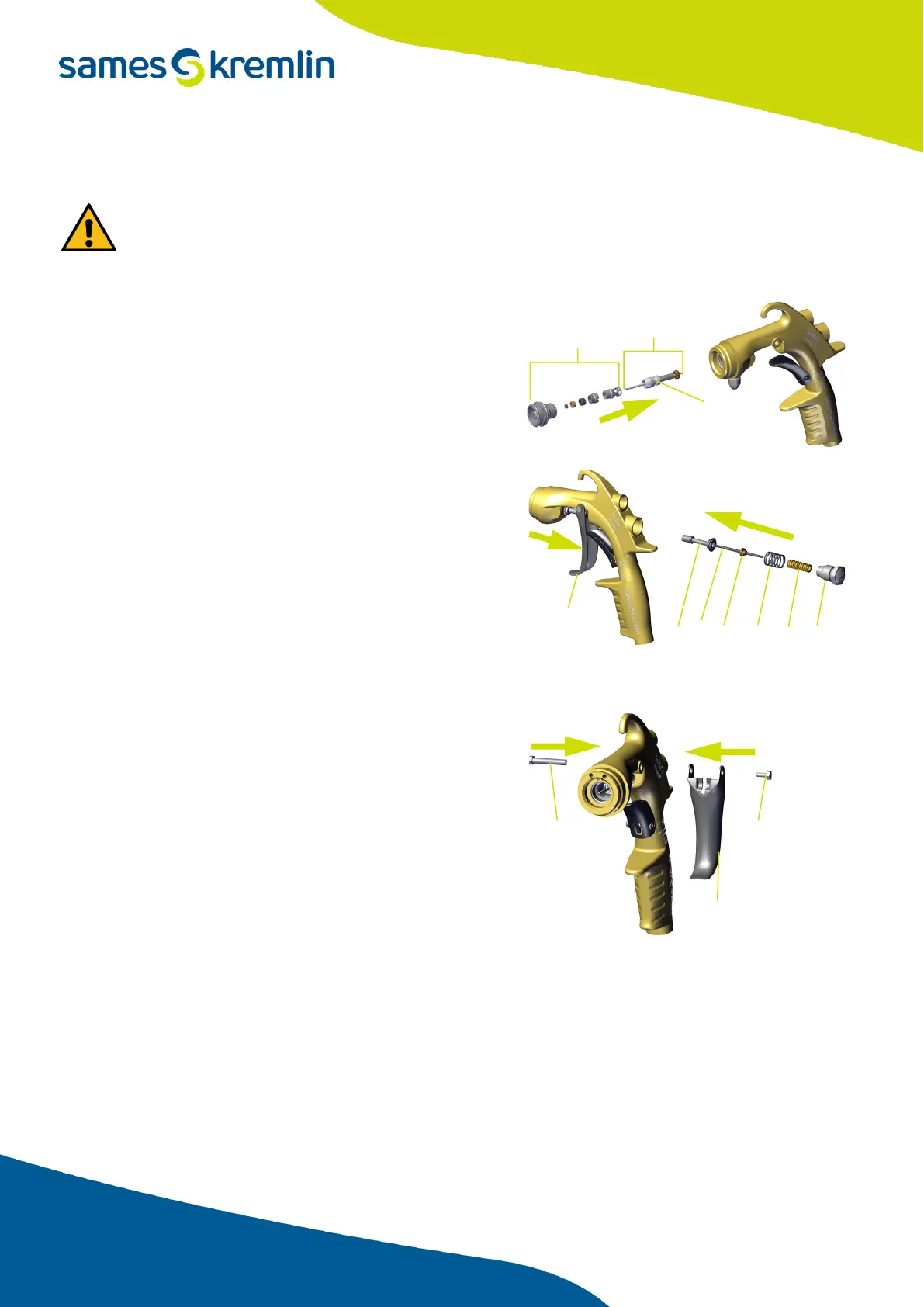

6.4.6. Procedure C2: Reassembly of the needle assembly (9) and the air valve (10)
ATTENTION: If necessary, change the seal (14) or the
complete needle assembly (9).
• Step 1:
Lubricate (PTFE) the seal (14).
• Step 2:
Insert the new needle assembly (9) from the front.
• Step 3:
When mounting the seat-holder (4), the needle assembly
(9) must come to a stop.
• Step 4:
Grease (PTFE) springs (9.1 & 10.1), the needle rod (13),
the air valve (10) and the needle stop thread (11).
• Step 5:
Install the air valve (10), the needle rod (13), the needle
carrier (12) and the springs (9.1 & 10.1).
• Step 6:
Screw the needle stop thread (11).
Tightening torque: 10 Nm / 7.37 ft-lb.
• Step 7:
Apply glue (Loctite 222) on the screw thread (5.1).
Replace the trigger (5.3) and the trigger spindle (5.2).
• Step 8:
Tighten the screw (5.1).
4
9
14
11
5
9.1
10.1
12
10
5.2 5.1
5.3
13
