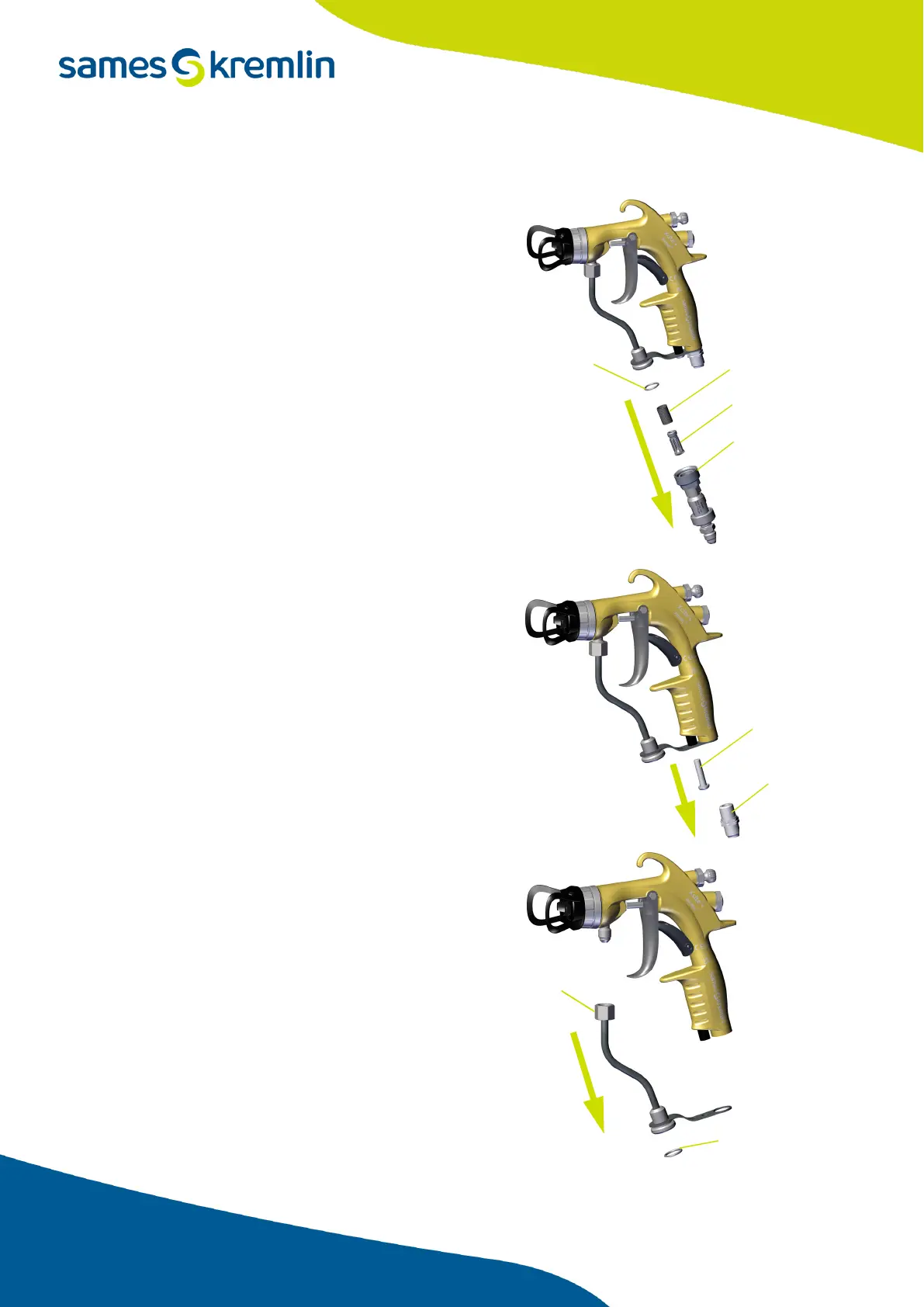

6.4.13. Procedure G1: Disassembly of the protective tube assembly (21)
(for
Xcite
®
+ guns)
• Step 1:
Unscrew the nut (20.1) by means of the wrench supplied
with the gun.
• Step 2:
Remove the screen support (21.1) and the screen (21.2).
• Step 3:
Remove the seal (21.3).
• Step 4:
Unscrew the fitting (19).
• Step 5:
Loosen the screw (21.4) with a 4 mm hex key.
• Step 6:
Unscrew the fluid tube (21.5).
• Step 7:
Check the condition of the parts as well as the seal (21.3).
Change them if necessary.
20.1
21.3
21.5
21.1
21.2
19
21.4
21.3
