6.4. Replacement
ATTENTION: Before any intervention, carry out a pressure relief procedure see § 5.3.2 page 25
and follow the health and safety instructions see § 1 page 7.

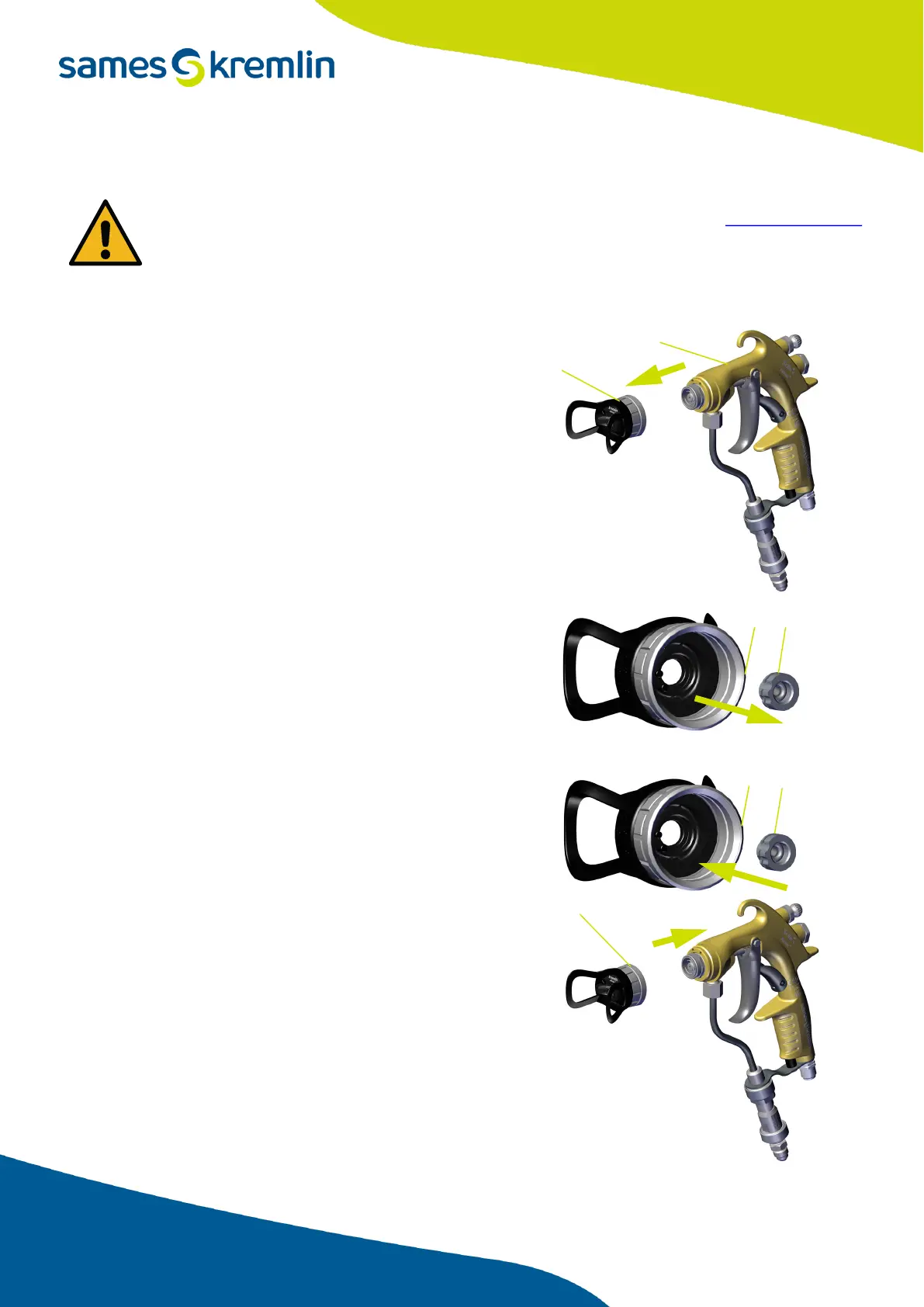

6.4.1. Procedure A1: Disassembly of the aircap (2) and of the tip (3)
• Step 1:
Unscrew the aircap ring (2.2) from the gun body (1).
• Step 2:
Remove the tip (3) from the aircap (2).
• Step 3:
Clean and/or change the parts.
6.4.2. Procedure A2: Reassembly of the aircap (2) and of the
tip (3)
• Step 1:
Install the tip (3) on the aircap (2).
• Step 2:
Tighten the aircap ring (2.2) on the gun body (1).
2.2
3
2.2
1
3
2
2
