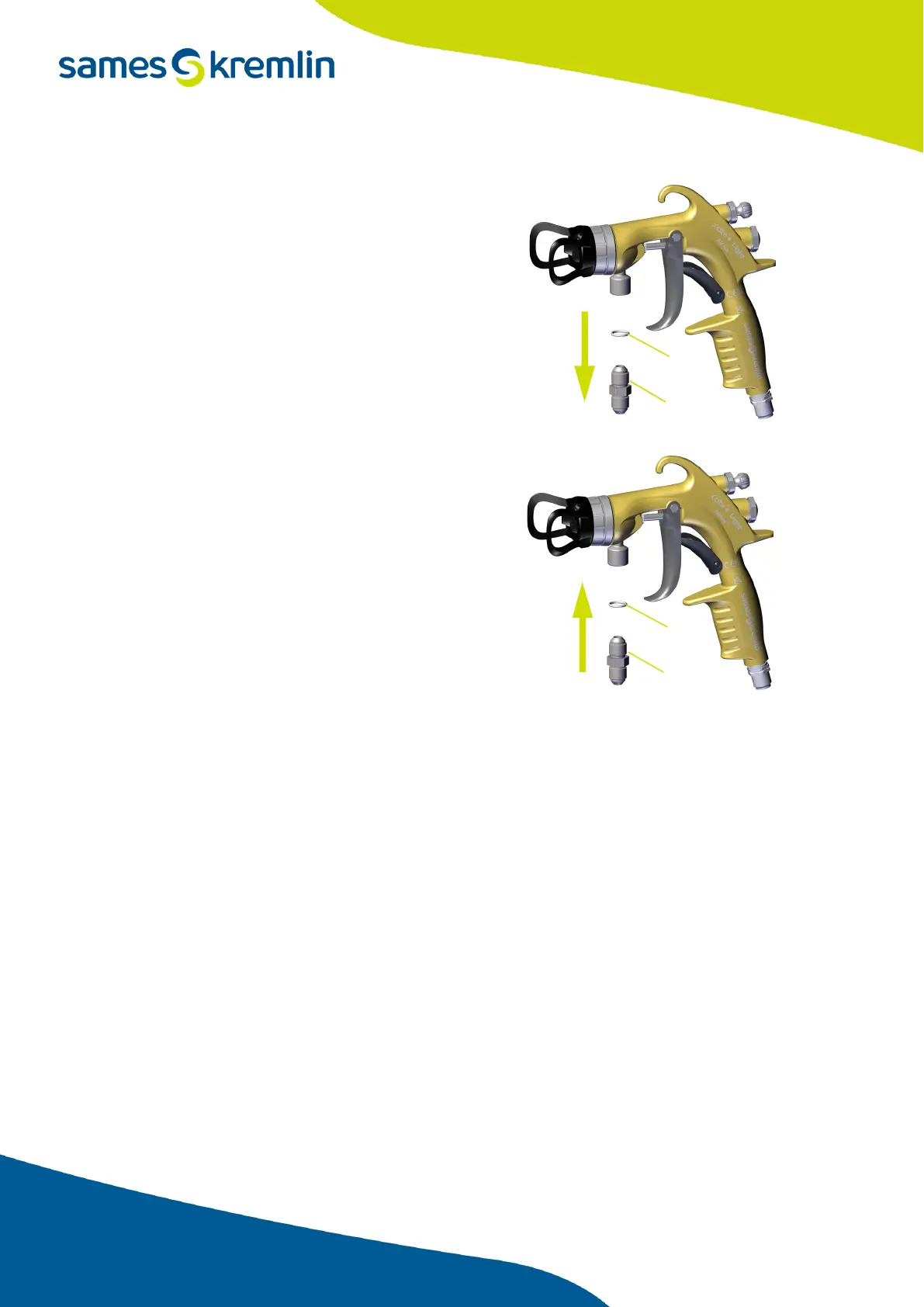

6.4.15. Procedure H1: Disassembly of the fitting (16) (for Xcite
®
+ Light guns)
• Step 1:
Unscrew the fitting (16).
• Step 2:
Remove the seal (17).
Check it and change it if necessary.
6.4.16. Procedure H2: Reassembly of the fitting (16) (for
Xcite
®
+ Light guns)
• Step 1:
Place the seal (17).
• Step 2:
Screw the fitting (16).
16
17
16
17
