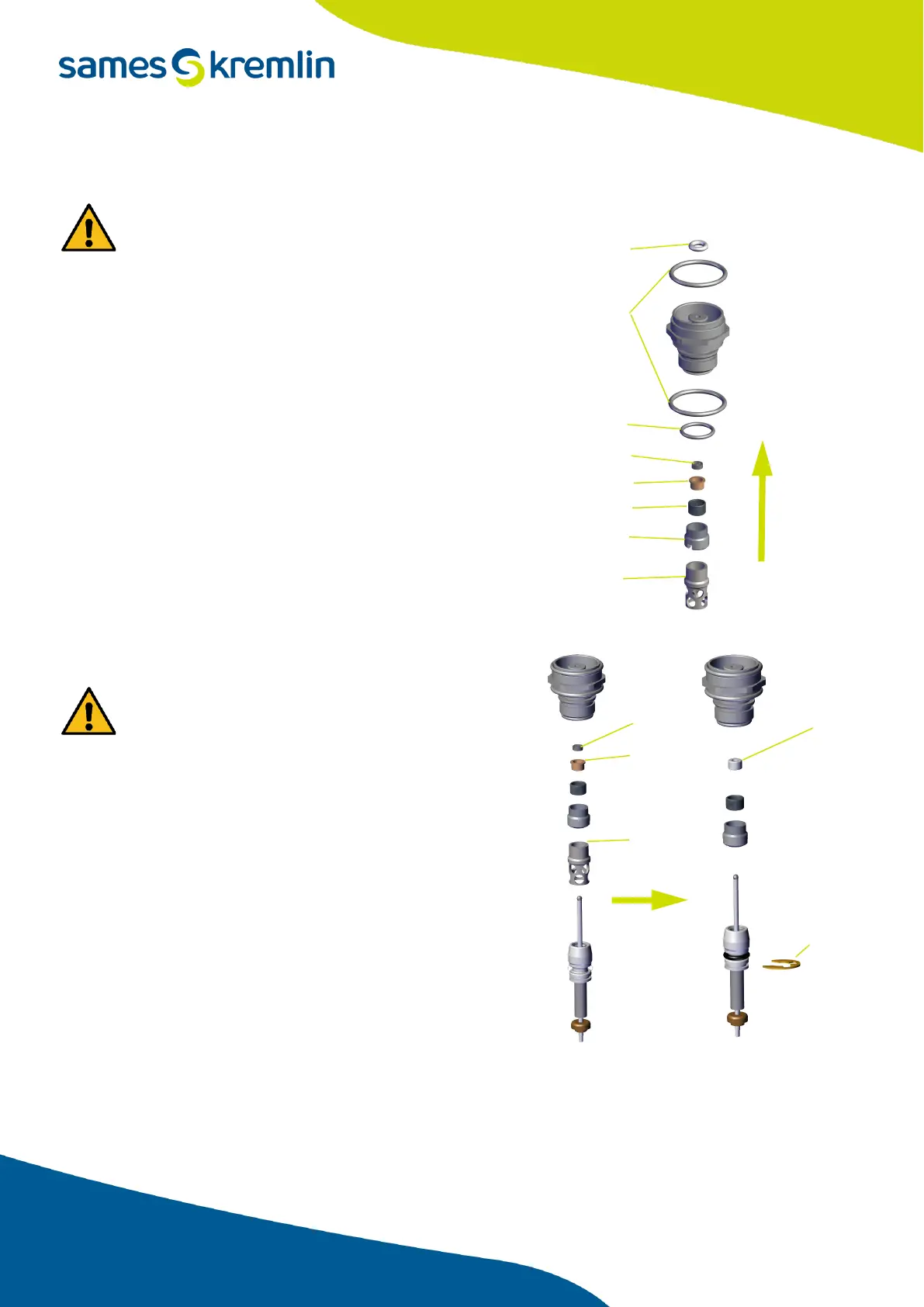

6.4.4. Procedure B2: Reassembly of the seat-holder assembly (4)
ATTENTION: for reassembly, present the parts vertically.
• Step 1:
Reinstall the diffusor (4.6), the seal (7.1) and the seat (7.2).
• Step 2:
Screw in the screw (4.5).
Tightening torque: 2 Nm / 1.47 ft-lb.
• Step 3:
Screw in the cartridge stop (6) until it stops.
ATTENTION: If the cartridge stop (6) and the diffusor (4.6)
are not used, the circlip (9.2) must be used instead of
the cartridge stop (6) and the seal (8) instead of the
diffusor (4.6) and the seal (7.1).
Kit part number 129 732 080.
6
4.6
9.2
8
7.1
4.4
4.3
4.2
6
4.5
7.2
7.1
4.6
6
