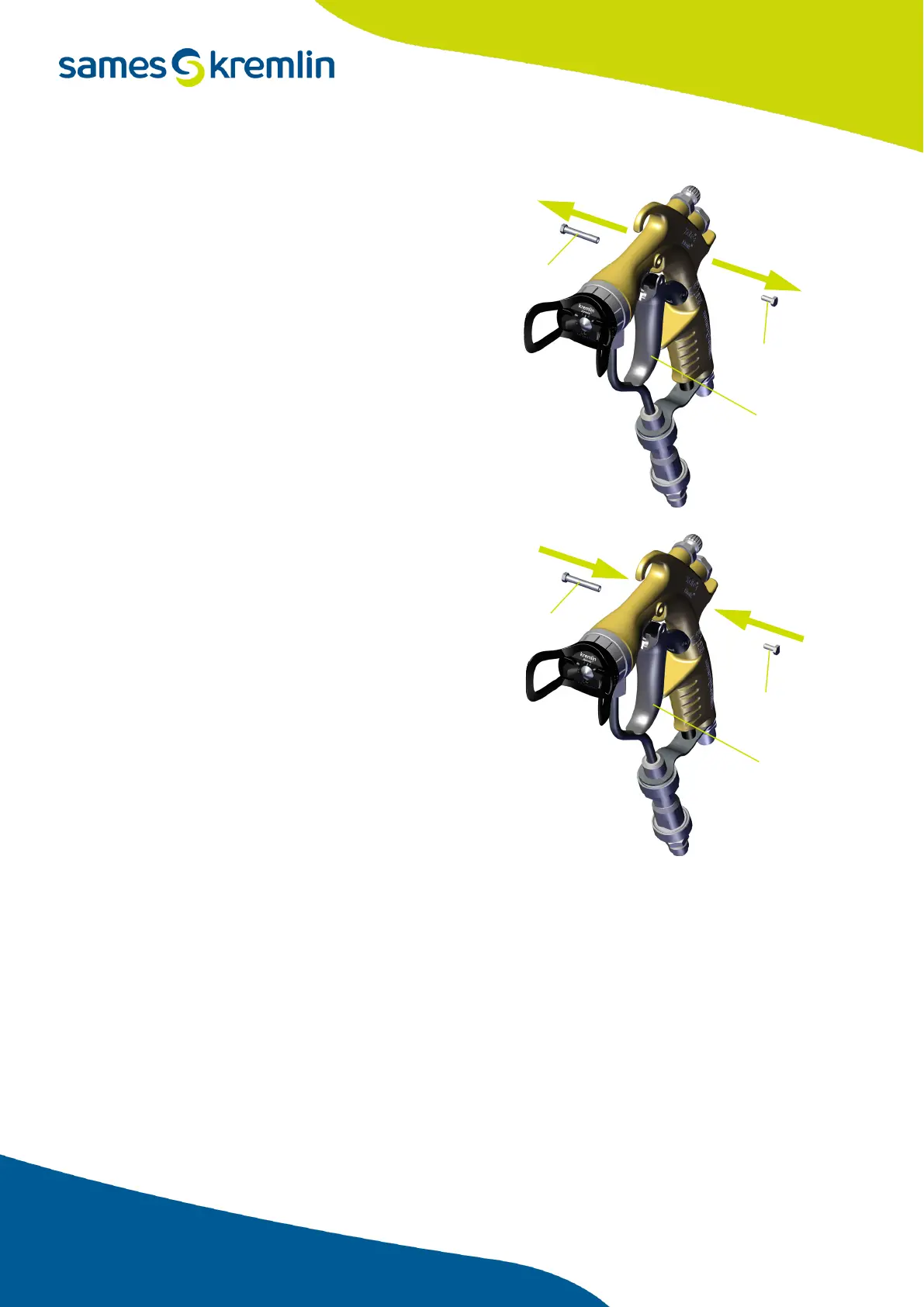

6.4.9. Procedure E1: Disassembly of the trigger (5)
• Step 1:
Loosen the screw (5.1) by means of a 5.5 mm wrench.
• Step 2:
Remove the trigger spindle (5.2).
• Step 3:
Remove the trigger (5.3).
6.4.10. Procedure E2: Reassembly of the trigger (5)
• Step 1:
Apply glue (Loctite 222) to the screw thread (5.1).
• Step 2:
Place the trigger (5.3) and the trigger spindle (5.2).
• Step 3:
Tighten the screw (5.1).
5.1
5.2
5.3
5.1
5.2
5.3
