SYSTEM CONTROLLER User’s Manual
33
ENGLISH
SYSTEM CONTROLLER User’s Manual
32

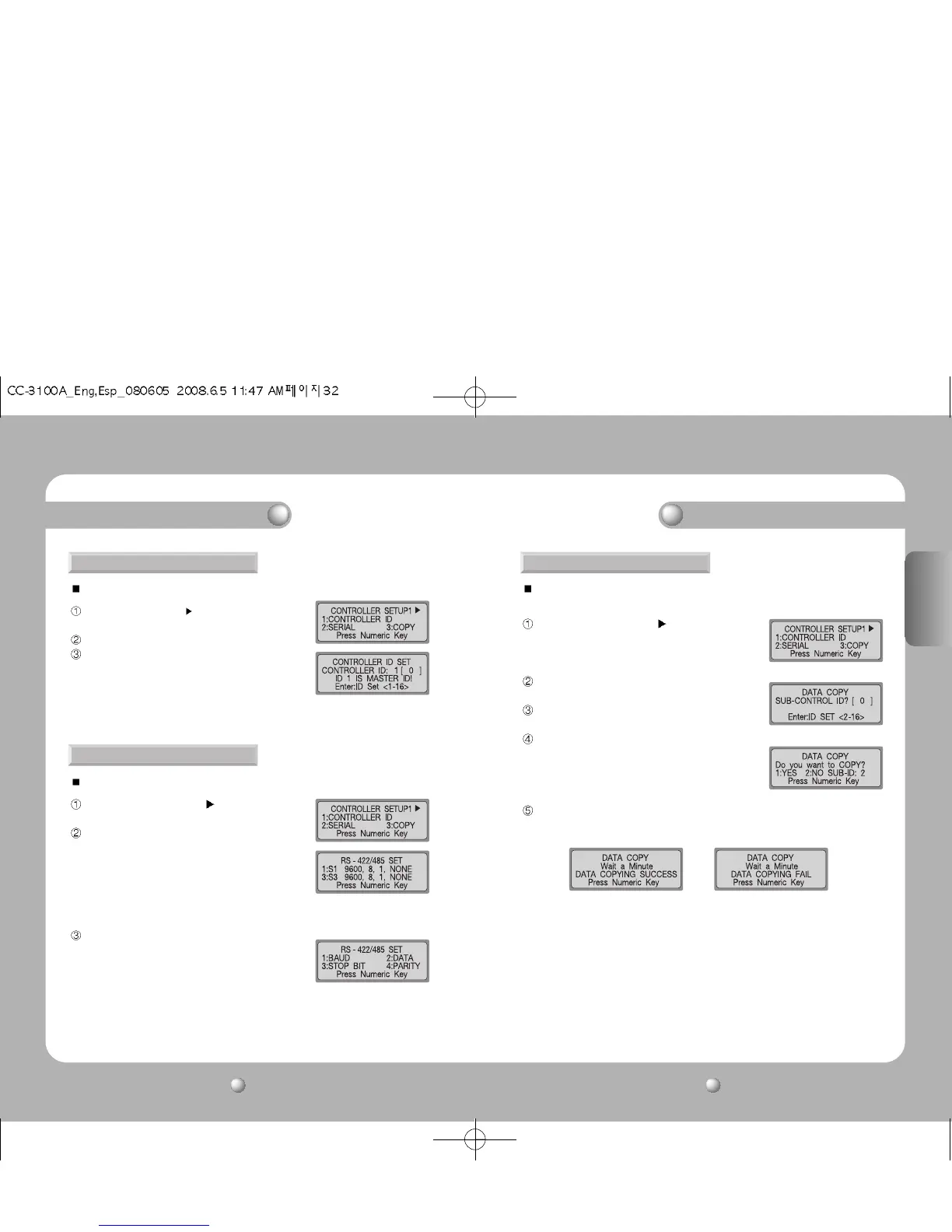

Controller Mode Controller Mode
At the [Controller SETUP 1 ] menu, press the 1 button
(see p.31).
Press a number on the number pad to enter a controller ID.
Press the ENTER button to set the controller ID.
• Assign number 1 for setting the controller ID for the
master controller.
• The lower the ID number, the higher the controller priority.
• Sub-controllers can be operated only when
connected to a master controller; Sub-controllers cannot be operated independently.
2. ID Setup
This menu is for setting controller ID.
3. SERIAL Setup
At the [CONTROLLER SETUP 1 ] menu, press the 2
button (see p.31).
Press the 1 button to activate the Serial 1 PORT Setup screen
(PTZ camera/DVR connection PORT). Press the 2 button to
activate the Serial 2 PORT Setup screen (reserved PORT).
• The value displayed at step indicates the current
setup value.
• The BAUD RATE/ DATA BIT/ STOP BIT/ PARATY BIT
for PORT 2, which connects to the sub-controller, are fixed and cannot bechanged.
The PORT Setup screen will be displayed. Press the
number for a setup menu.
1: Sets the BAUD RATE. (4800, 9600, 19200, 38400)
2: Sets the DATA BIT. (8BIT, 7BIT)
3: Sets the STOP BIT. (1BIT, 2BIT)
4: Sets the PARITY BIT. (NONE, ODD, EVEN)
• Default values for controller SERIAL are 9600 (BAUD RATE), 8BIT (DATA BIT), 1BIT (STOP
BIT) and NONE (PARITY BIT).
At the [CONTROLLER SETUP 1 ] menu, press the 3
button (see p.31).
Press a number on the number pad to enter the ID number
for the subcontroller where the data will be copied.
Press the ENTER button to set the controller ID.
Press the 1 button to start coping data.
Press the 2 button to return to the previous menu.
The [DATA COPYING SUCCESS] message appears when data copying is complete.
The [DATA COPYING FAIL] message appears if data copying failed.
• Data copy takes approximately 7~10 seconds.
This menu is available only for the master controller (ID: 1).
4. DATA COPY
This menu is for copying master controller menu data to a sub-controller.
The controller ID value is not copied.
This menu is for setting the serial port for connecting external devices to the controller.
[DATA COPY SUCCESSFUL] [DATA COPY FAILURE]
