SYSTEM CONTROLLER User’s Manual
43
SYSTEM CONTROLLER User’s Manual
42

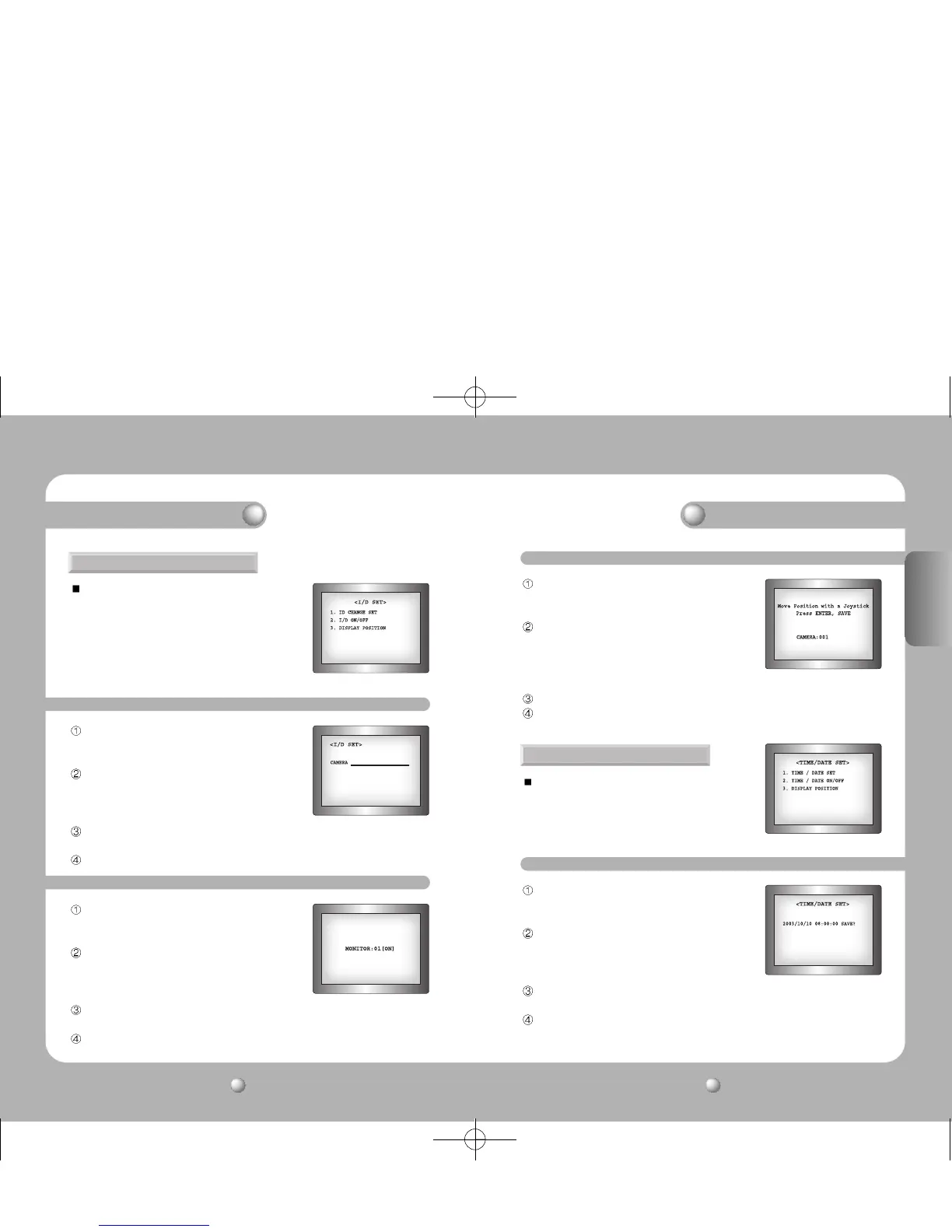

4. ID SET
This is a function to enter text on the corresponding
camera.
From the initial screen, press the MATRIX button, and
then press the MENU button to display the [MATRIX
CONTROL] menu.
Press button 3 to display the [CAMERA ID SET] menu.
(In MATRIX, wait for data loading completion.)
Move the joystick to select the ID CHANGE SET from the
MATRIX screen, and then press the
“ FOCUS + “ button.
Move the joystick up/down to change letters or
numbers, use the joystick's ZOOM to change letters/numbers/vowels/consonants.
Press the “FOCUS +“ button to save.
4-1 Select ID SET
[MATRIX screen]
5. TIME/DATE SET
This is a function to modify the TIME and DATE on
the corresponding camera.
[MATRIX screen]
[MATRIX screen]
From the initial screen, press the MATRIX button, and
then press the MENU button to display the [MATRIX
CONTROL] menu.
Press the 3 button to display the [CAMERA ID SET]
menu. (In MATRIX, wait for data loading completion.)
Move the joystick to select the DISPLAY POSITION
from the MATRIX screen, and then press the “FOCUS
+“button.
Move the joystick up/down/left/right to move the ID location.
Press the “FOCUS +“button to save.
[MATRIX screen]
From the initial screen, press the MATRIX button, and
then press the MENU button to display the [MATRIX
CONTROL] menu.
Press the 3 button to display the [CAMERA ID SET]
menu. (In MATRIX, wait for data loading completion.)
Move the joystick to select the DISPLAY POSITION from the
MATRIX screen, and then press the “FOCUS +“button.
Move the joystick up/down to select a monitor, move
it left/right to select ON/OFF.
Press the “FOCUS +“button to save.
4-2. Setting ID SET ON/OFF
[MATRIX screen]
4-3. Setting the DISPLAY POSITION
From the initial screen, press the MATRIX button, and
then press the MENU button to display the [MATRIX
CONTROL] menu.
Press the 4 button to display the [TIME SET] menu. (In
MATRIX, wait for data loading completion.)
Move the joystick to select the TIME/DATE SET from the
MATRIX screen, and then press the “FOCUS +“button.
Move the joystick up/down to change the TIME or
DATE, move it left/right to move the location.
Move the joystick to select the “SAVE?” and wait for it to blink, and then press the
“FOCUS +“ button to save.
[MATRIX screen]
5-1. Setting TIME/DATE
MATRIX Mode MATRIX Mode
