What to do when the product malfunctions

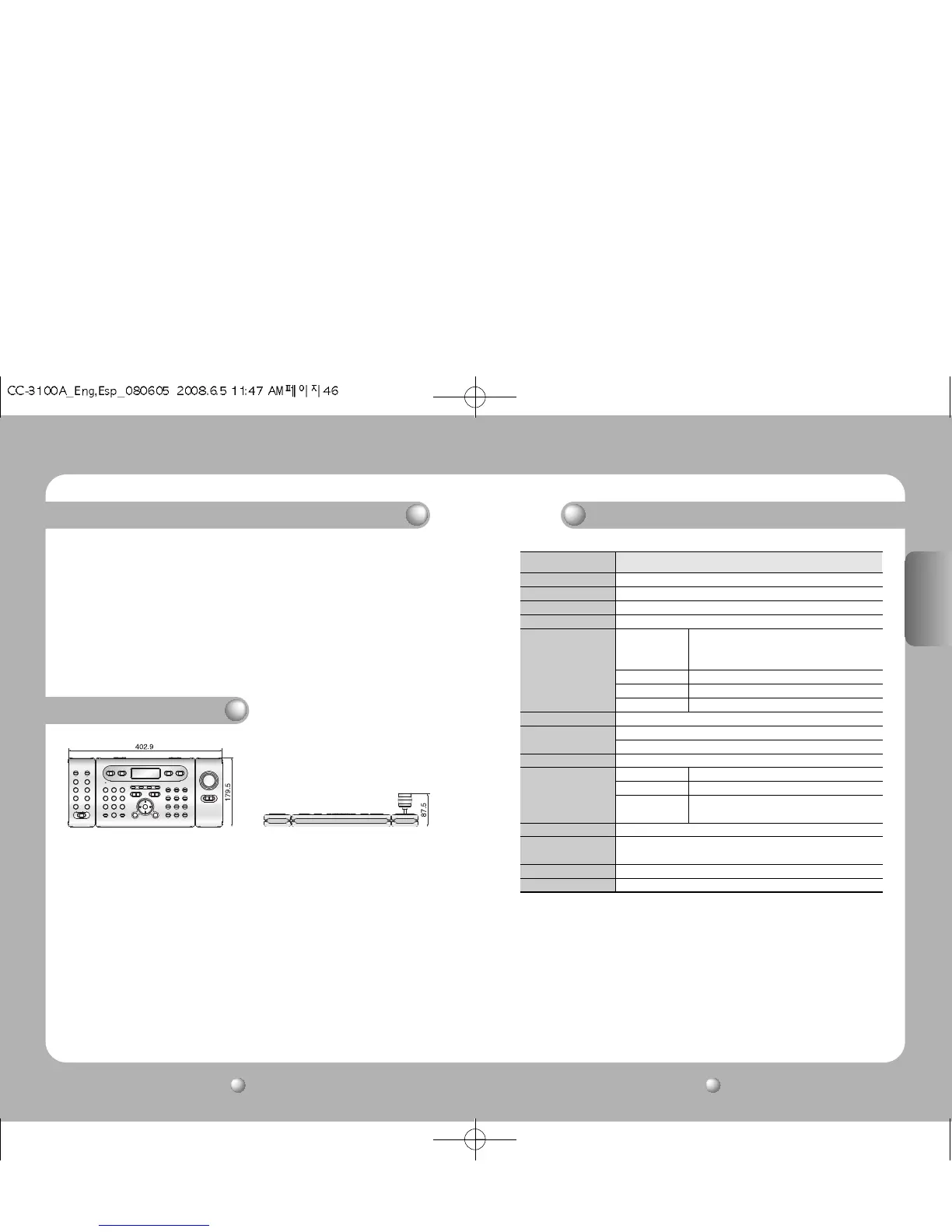

Appearance
SCC-3100A
3 Port
20 x 4 Character LCD
Joystick (3 axis Twist Zoom)
Max. 16 things connection
SPD-3300/3000/2300,SPD-2500/2200/1600,
Speed Dome PELCO-D, PELCO-P, PANASONIC (WV-CS854),
SAMSUNG ELECTRONICS (SCC-643/641), BOSCH(G3A series)
DVR SVR-1650/1640/950, SVR-1630/430/440, SVR-5416/5116
Receiver SRX-100B
MATRIX SMX-25632
PTZ & DVR Max. 255
- Tour, Group, Swing, Preset etc.
- Selection of PTZ, DVR: Each ID input
RS-485/ RS-422 (Remote control 1.2km above possibility)
Communication set Asynchronism SERIAL, 1 Start Bit, No Parity, 1 Stop Bit
Transmission method Half Duplex / Full Duplex
Baud Rate (bps)
- 4,800~38,400 bps (9,600 bps Promotion)
- Sub-controller communication 56,400bps fixation
12V DC, 700mA
0~40˚C / 10~75%
400(W) x 180(H) x 88(D)mm
About 1.5kg (Adapter Exclusion)
MODEL
Connector
LCD Display
PTZ Operation
Sub Keyboard
Control
Control Quantity
Auto Surveillance
Remote Control
RS-485/422 Spec.
Power (Consumption)
Operating Temperature/
Humidity
Size
Weight
• Power button is pressed, but nothing is happening
Check if the Adapter is connected to its proper location on the Junction Box.
Check the cable that connects the Controller to the Junction Box.
• System is not operating
If the Initial Setup menu does not display correctly, update the firmware.
• Joystick and/or keys are not working
There might be a problem with the Controller, please contact our agency nearby.
Controller Specifications
SYSTEM CONTROLLER User’s Manual
