REFERENCE
From the initial screen, press the MATRIX button, and
then press the MENU button to display the [MATRIX
CONTROL] menu.
Press the 4 button to display the [TIME SET] menu. (In
MATRIX, wait for data loading completion.)
Move the joystick to select the TIME/DATE ON/OFF
from the MATRIX screen, and then press the
“FOCUS
+“
button.
Move the joystick up/down to select a monitor, move it left/right to select ON/OFF.
Press the “FOCUS +“ button to save.
5-2. Setting ON/OFF
[MATRIX screen]
From the initial screen, press the MATRIX button, and
then press the MENU button to display the [MATRIX
CONTROL] menu.
Press the 4 button to display the [TIME SET] menu. (In
MATRIX, wait for data loading completion.)
Move the joystick to select the DISPLAY POSITION
from the MATRIX screen, and then press the
“FOCUS
+“
button.
Move the joystick up/down/left/right to move the display position.
Press the “FOCUS +“ button to save.
5-3. Setting DISPLAY POSITION
[MATRIX screen]
SYSTEM CONTROLLER User’s Manual
45
ENGLISH
SYSTEM CONTROLLER User’s Manual
44

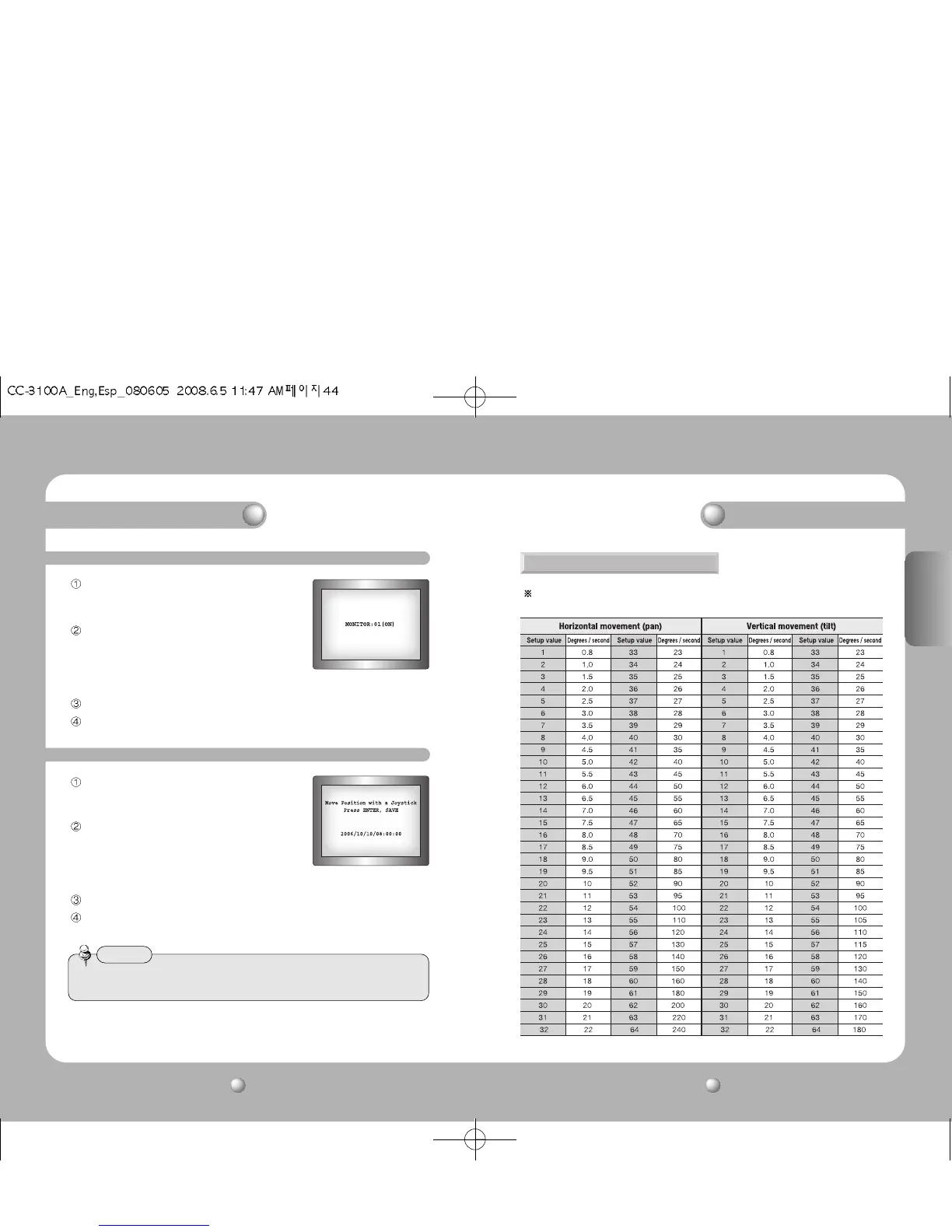

1. Swing, Group Movement Speed
• ERROR may occur if operated before data is fully loaded.
Caution
For Swing setup, the speed setup value can be 240 /second for pan, and 180 /second
for tilt.
MATRIX Mode
