SYSTEM CONTROLLER User’s Manual
17
ENGLISH
SYSTEM CONTROLLER User’s Manual
16

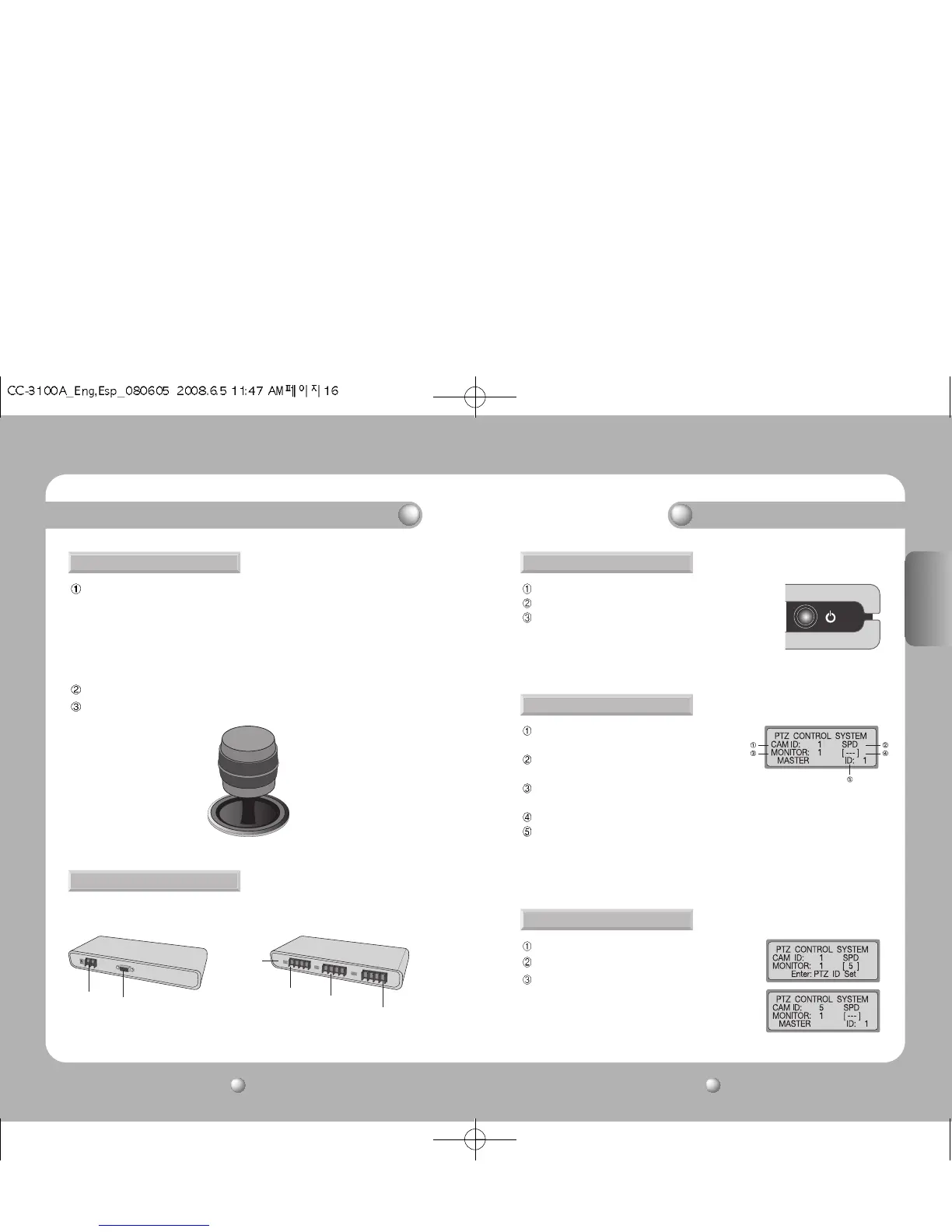

6. Camera Controller
Joystick : Used for moving the camera up, down, left, and right, and for zoom control (see p.18).
1) Tilt up (Up button) : Moves the camera up.
2) Tilt down (Down button) : Moves the camera down.
3) Tilt left (Left button) : Moves the camera left.
4) Tilt right (Right button) : Moves the camera right.
5) Turn stick clockwise : Performs telephoto-zoom.
6)
Turn stick counter-clockwise : Performs wide zoom.
ESC(PTZ) : Same as ESC in SPEED DOM OSD MENU.
ENTER(PTZ) : Same as ENTER in SPEED DOM OSD MENU.
1. Power-On
Power on the connected external devices before turning the controller on.
Press the power button at the back of the controller to power on the controller.
The [SYSTEM Controller] message and F/W version will be displayed
in the LCD monitor, and the message will disappear when the
controller is ready for use.
• The [JOYSTICK ERROR] error will be displayed in the LCD monitor if
the joystick is not placed in the center during power-on.
2. Initial Screen Display
CAM ID : Shows the currently selected camera ID.
Default is 1.
SPD : Shows the currently selected camera model
name. Default is SPD.
MONITOR : Shows the currently selected monitor.
Default is 1.
[- - -] : Shows the numbers (ID) entered when entering numbers with the number pad.
ID : Shows the current controller ID. If the ID is 1, it acts as the master controller. If the ID is 2
or higher, it acts as a sub -controller. Sub-controllers cannot be used independently
without a master controller.
• Always assign a unique ID to ensure that the controller IDs do not conflict with each other.
• SPD : SPD-3300/SPD-3000/SPD-2300/SPD-2500/SPD-2200/SPD-1600(Samsung Techwin Co., Ltd.)
PTZ CONTROL
7. Junction Box
[ Joystick ]
Power Input
Connector
PTZ/DVR Connector
MATRIX Connector
Sub-Controller
Connector
DIP Switch
Junction Box Connector
[Front] [Back]
3. Camera ID Setup
Enter a number using the number pad.
The number entered will be shown in the [- - -] display.
Press the CAMERA or ENTER button to set the camera ID
with the number entered.
• Any number from 1 to 255 can be selected. If the number
entered is not within the selectable range, the last entered
number is taken as the first number.
[ power button ]
Names and Functions of Each Part
