Samwontech TEMP2500 User Manual

SAMWONTECH
2nd Edition of TEMP2000_Series IM : July. 16. 2010 Page 9 / 87

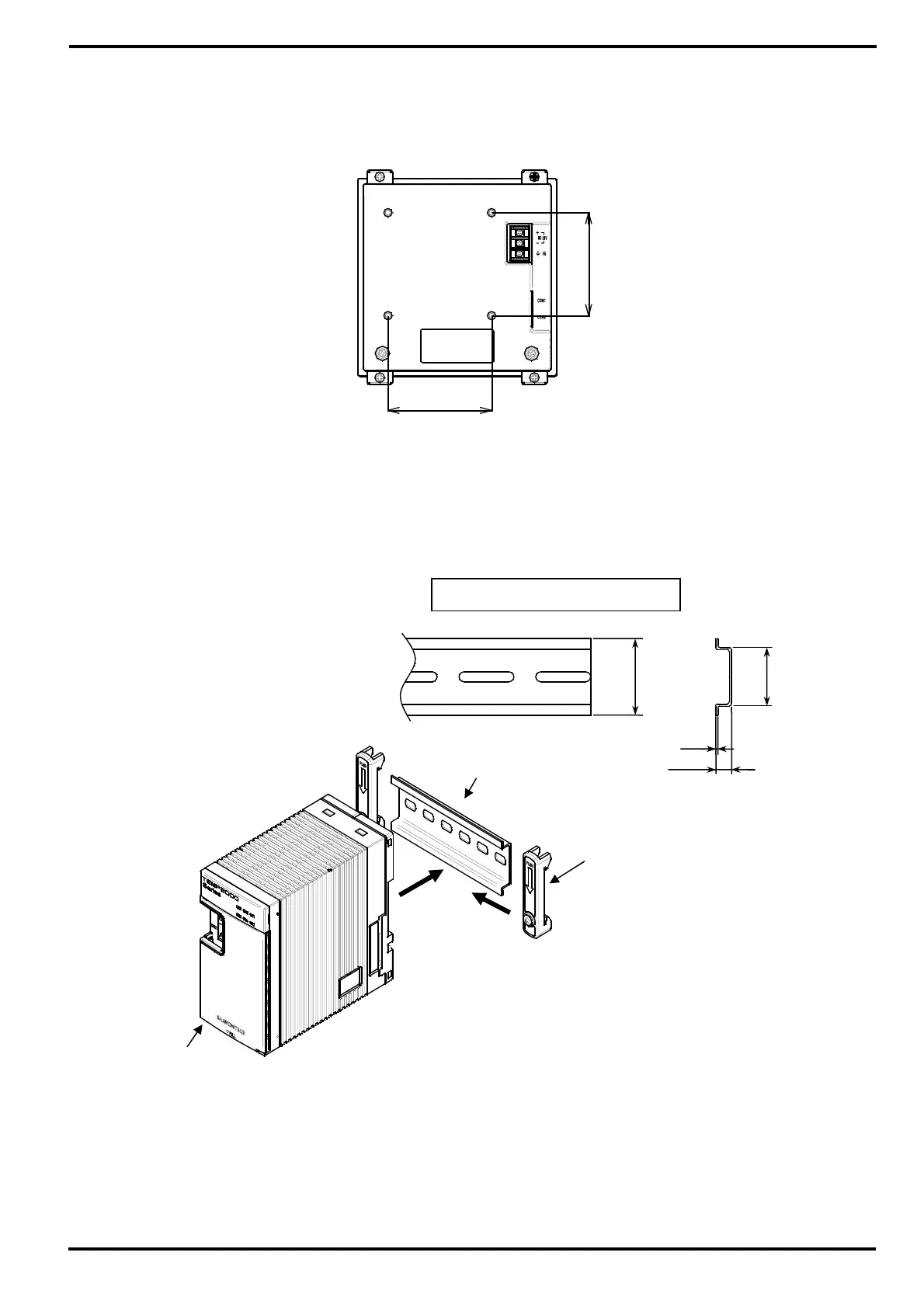

▶ VESA Mount installation
☞ 75*75, VESA standard size applies to all TEMP2000 series.
1.2.4.2 CONTROL UNIT Mount
▶ DIN RAIL Mount
75
75
VESA Standard (75*75)
※Required bolt for jointing
VESA HOLE is M4*4L ~ 6L
35
1
7.3
27
Required DIN RAIL Dimension
CONTROL
U
NIT
DIN RAIL
End Bar
①
②
☞ Put the CONTROL UNIT in the DIN RAIL
by pressing to ① direction.
☞ Mount an End-Bar at both side of
CONTROL UNIT to keep it immovable on
the DIN RAIL.
