Table 6-1 Communication Setup Screen-1 Par
ameter
Parameter
Range
Unit
Default
PROTOCOL
PC LINK, PC LI
NK + SUM,
MODBUS ASC,
MODBUS RTU
ABS
PC LINK + SUM
BAUD RATE
9600, 19200, 38
400, 57600, 115200
ABS
9600
STOP BIT
1, 2
ABS
1
PARITY
NONE, EVEN, ODD
ABS
NONE
DATA LENG
TH
7, 8
ABS
8
ADDRESS
1 ~99
ABS
1
RESPONSE TIME
0~10
ABS
0

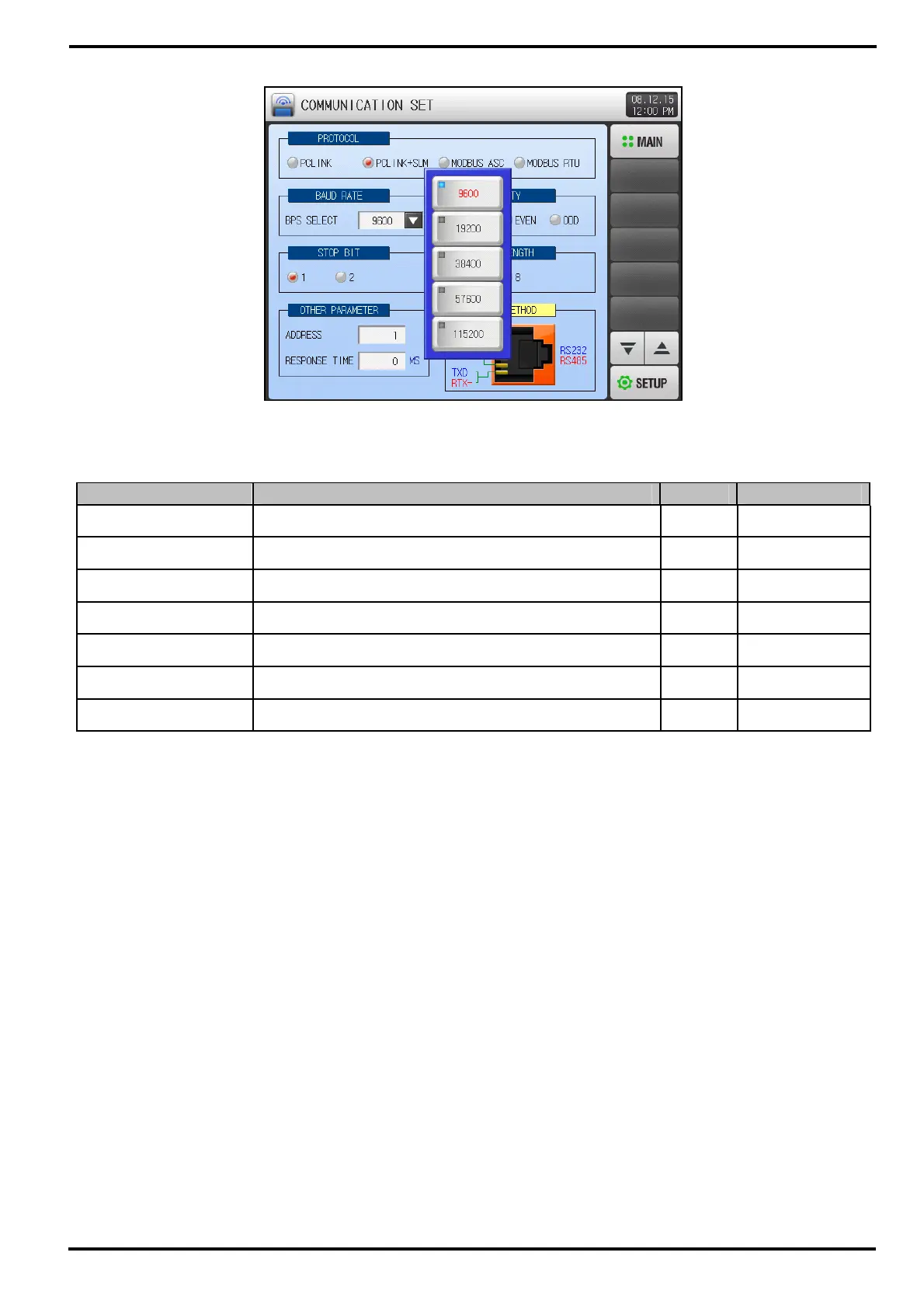

[Figure 6-4] Communi
cation Setup Screen-1/2
55
57
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Precautions
4
Package Checklist
6
Dimension & Installation
8
Wiring
14
Display Unit Description
25
Control Unit LED Description
26
2 System Setting Configuration
27
MAIN MENU Screen
27
SYSTEM PARAMETER Setting Sequence
29
3 Input Set
30
Sensor Input Setting
30
PIECE BIAS Setting
36
4 Control & Retransmission Output
38
Control Output Setting
38
Retransmission Output Setting
40
Output Terminals Displays / Settings
44
5 Digital Output (Do) Configuration
46
DO Parameters & RELAY Number Setting
46
UP, SOAK, down Signal Operation
53
6 Communication
54
Communication Interface Setting
54
Communication Configuration
55
7 Inner Signal (Is) Configuration
58
Inner Signal Setting
58
Inner Signal Operation
60
8 On/Off Signal
61
ON/OFF Signal Setting
61
ON/OFF Signal Operation
63
9 Alarm Signal
64
Alarm Signal Setting
64
Alarm Signal Operation
68
10 Pid Group
69
PID Range Setting
69
PID Group Setting
72
11 Digital Input (DI) Configuration
74
DI Operation Setting
74
DI Error Name Setting
78
DI Error Screen
81
12 Pictures View
82
User Screen Setting for Digital Album
82
User Screen Operation
85
13 Initial System Setting
86
Initial Display Setting
86
Status Lamp Setting
88
Initial Logo Screen
89
Engineering Units
90
