9.1.2 Alarm Signal Setup Screen-2
▶ This is the screen where you can set the alarm signal.
▶ Alarm Signal can be set up to a maximum of 4.
▶ Alarm Signal operates according to Alarm Type setup, and there are 20 Alarm Types.
① Set Alarm Signal object.
② Move screen up/down by 2 alarm signals.
③ Select Alarm Type for the setup Alarm Signal.
☞ Refer [Table 9-4 Alarm Type]
②
①

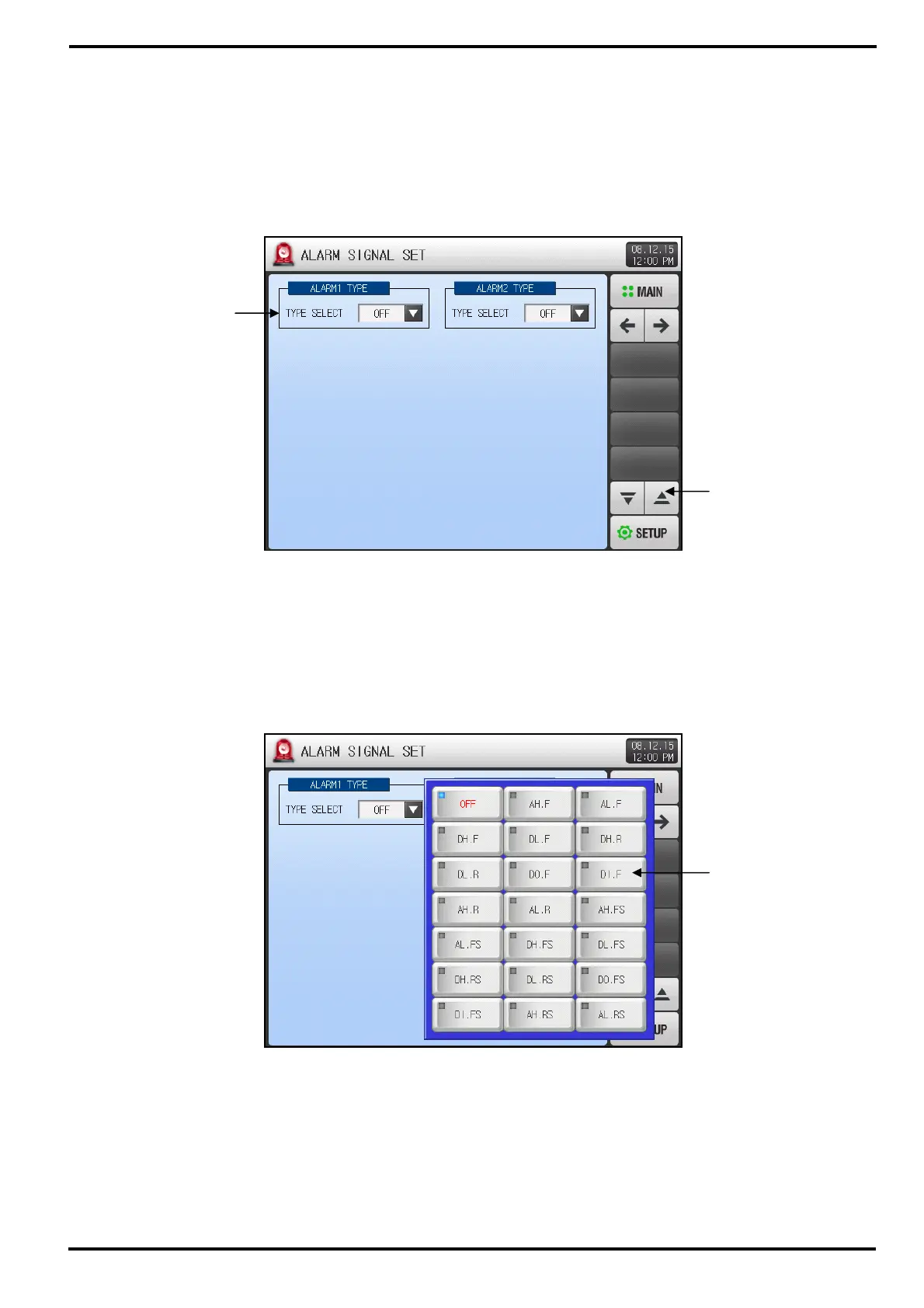

[Figure 9-2] Alarm Signal Setup Screen-2/1
[Figure 9-3] Alarm Signal Setup Screen-2/2
③
To Next Page
