520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 18

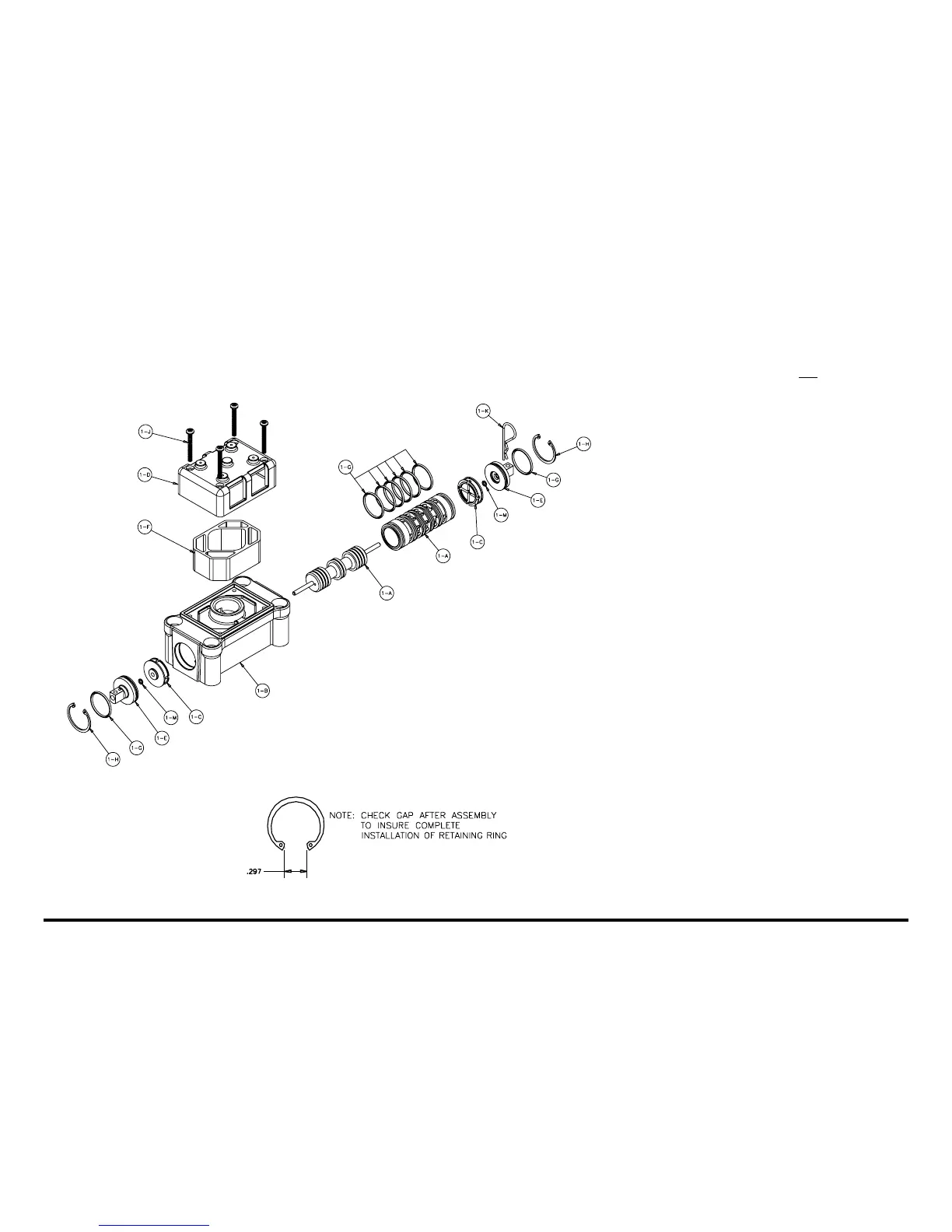

Air Valve with Stroke Indicator Assembly Drawing, Parts List

AIR VALVE ASSEMBLY PARTS LIST

ITEM PART NUMBER DESCRIPTION QTY

1 031-146-000 Air Valve Assembly 1

1-A 031-143-000 Sleeve and Spool Set 1

1-B 095-094-551 Body, Air Valve 1

1-C 132-029-552 Bumper 2

1-D 165-096-551 Cap, Muffler 1

1-E 165-098-147 Cap, End 2

1-F 530-028-550 Muffler 1

1-G 560-020-360 O-Ring 8

1-H 675-044-115 Ring, Retaining 2

1-J 710-015-115 Screw, Self Tapping 4

1-K 210-008-330 Clip, Safety 1

1-M 560-001-360 O-Ring 2

For Pumps with Alternate Mesh, Sound Dampening Mufflers

or Piped Exhaust:

1 031-147-000 Air Valve Assembly 1

(includes all items on 031-146-000 minus 1-D, 1-F, & 1-J).

**Note: Pumps equipped with this valve assembly are not ATEX compliant
