PULSE OUTPUT KIT OPTION

This pump can be fitted with a Pulse Output Kit. This converts the mechanical

strokes of the pump to an electrical signal which interfaces with the RuppTech®

Stroke Counter/ Batch Controller or user control devices such as a PLC.

The Pulse Output Kits mount directly onto the Muffler Cap on the Air Distribution

Valve Assembly or onto the Air Distribution Valve Assembly when the threaded

exhaust port or an auxiliary muffler is being used.

See the individual kits listed on the Pump Repair Parts List for further information.

**RuppTech

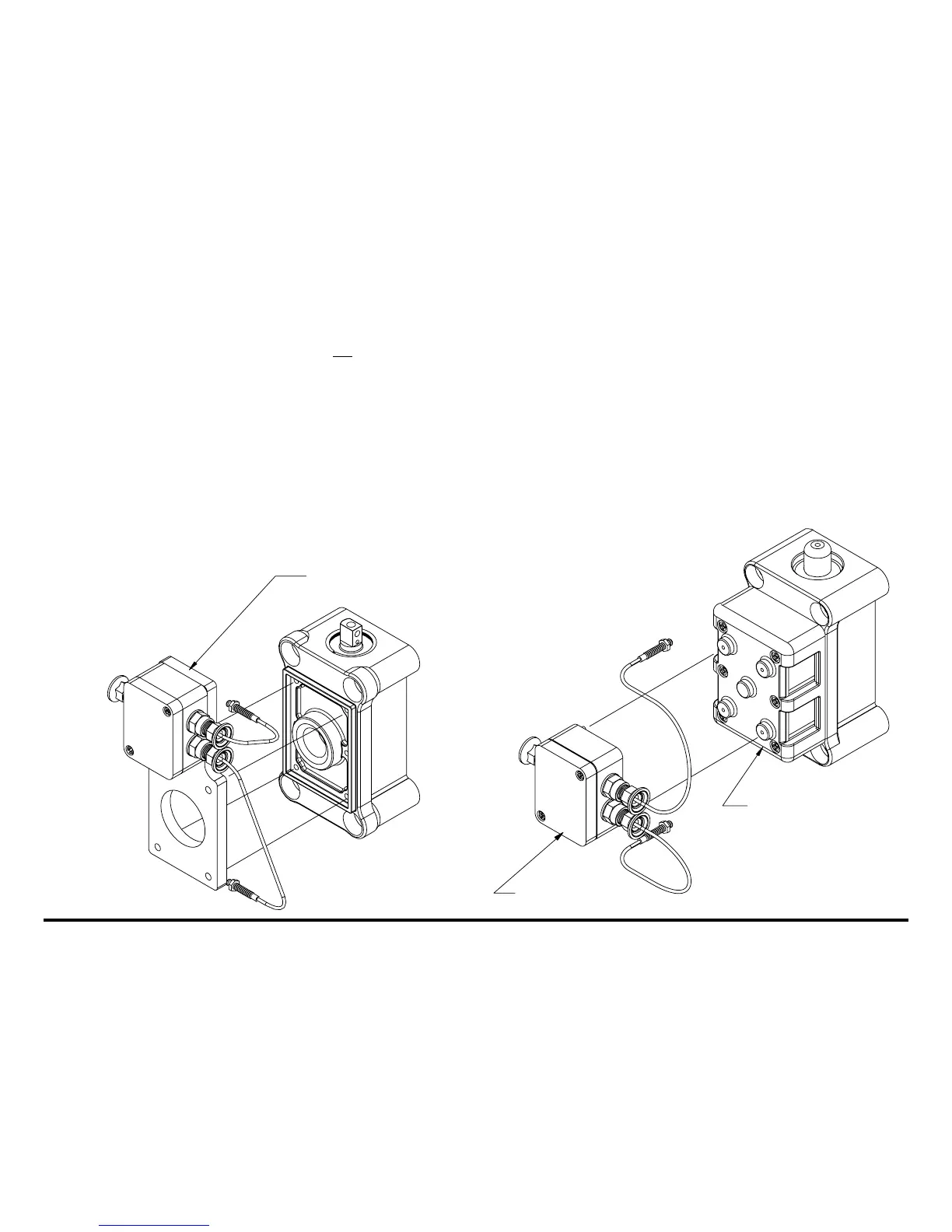

Pulse Output Kit Drawing & Options

Exhaust Port or Auxiliary

Muffler Setup

Integral Muffler Setup

Muffler Cap

Pulse Output Kit

**Note: Pumps equipped with Pulse Output Kits are not ATEX compliant.
