Sandpiper S30 Operating And Service Manual

520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 4

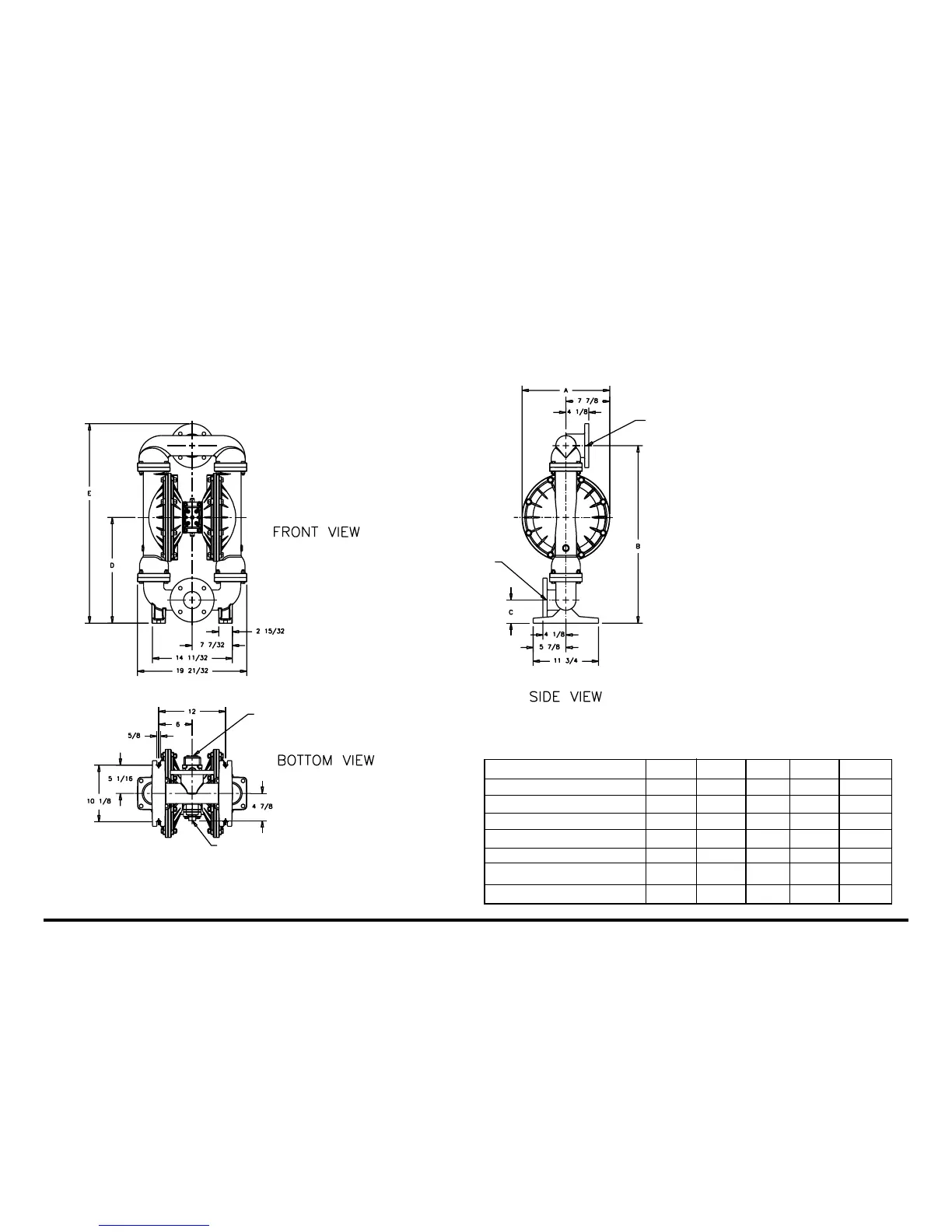

Dimensions: S30 Metallic (Flanged)
Dimensions in Inches
Dimensional Tolerance:±
1
/8"
Discharge Port
3" 150 LB. FF ANSI Flange
Ø3/4 4 Holes Equally Spaced
On A Ø6 Bolt Circle
Suction Port
3" 150 LB. FF ANSI Flange
Ø3/4 4 Holes Equally Spaced
On A Ø6 Bolt Circle
1" NPT Exhaust Port
For Optional Piping Exhaust
Air In Submerged Applications
Air Inlet
3/4" NPT
Pulse Output Kit
Aluminum
Sound Dampening Muffler
Encapsulated Muffler
Stainless Steel
Metal Muffler
DIMENSION
B
C
D E
15 3/4
16 1/32
31 3/4
4 1/8 18 29/32 35 11/16
30 27/32 4 7/32 19 35 25/32
Mesh Muffler
16 5/8
16 5/8
16 1/8
A
