520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 28

Configuration "B"

Configuration "A"

TO CONTROL BOX

LEAK DETECTORS

**RuppTech

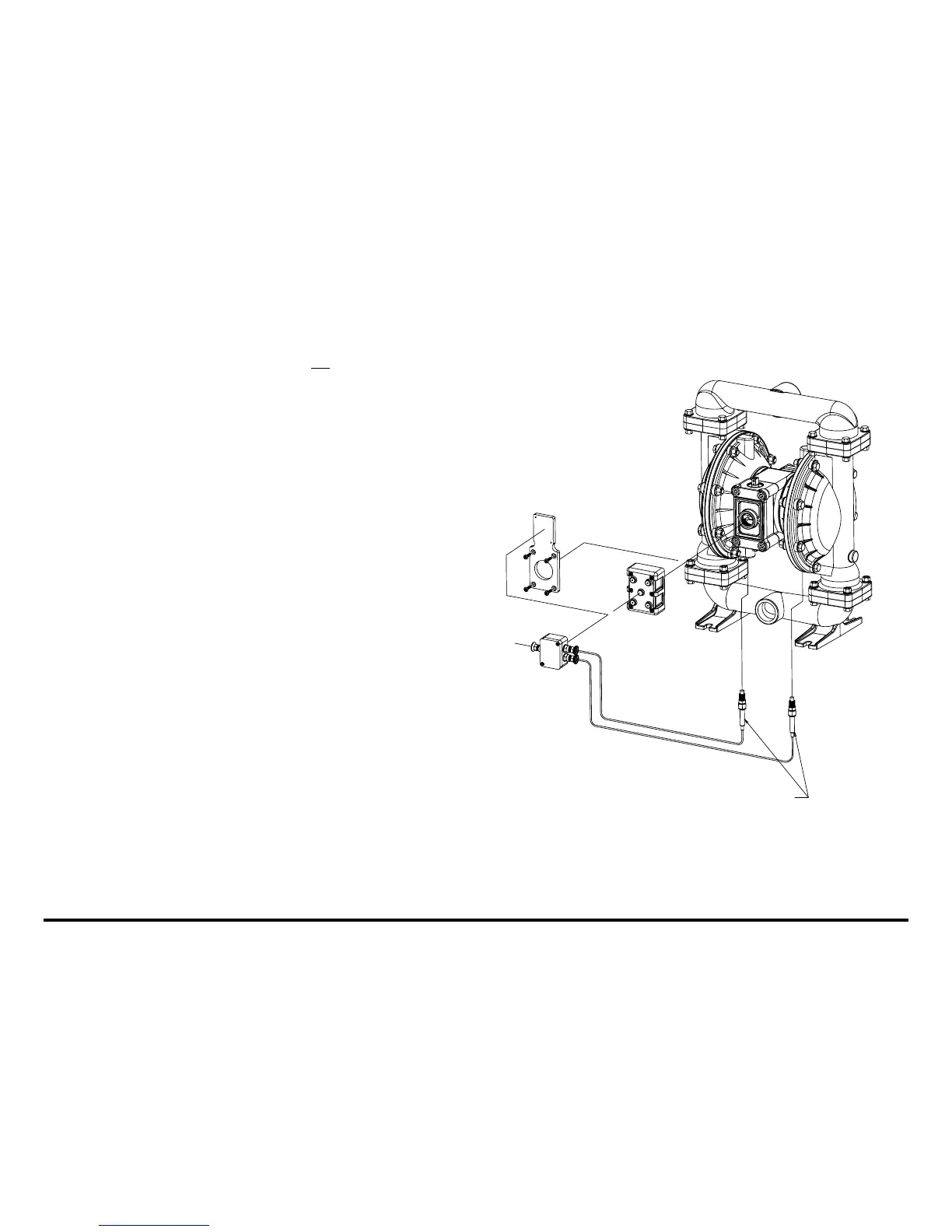

Leak Detection Options, Drawing

RuppTech

Electronic Leak Detector

Kit 032-037-000 100VAC 50Hz

or 110-120VAC 50/60Hz

or 220-240VAC 50/60Hz

Kit 032-045-000 12-32VDC

Configuration A

To be used with the Encapsulated muffler option. You

will need to mount the terminal box directly to the

muffler cap on the air valve using the (2) 710-014-330

self tapping screws. Then insert the leak detectors

into the bottom port in the inner chambers.

Configuration B

To be used with either of the muffler options or if your

exhaust is piped away. You will need to mount the

terminal box to the 612-185-552 mounting plate using

the (2) 710-014-330 self tapping screws. Then mount

the mounting plate directly to the air valve body using

the (4) 710-009-115 self tapping screws. Then insert

the leak detectors into the bottom port in the inner

chambers.

Mechanical Leak Detector

Kit 031-023-110

Insert the leak detectors into the bottom part in the

inner chambers.

**Note: Pumps equipped with these options are not ATEX compliant.
