Sandpiper S30 Operating And Service Manual

520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 7

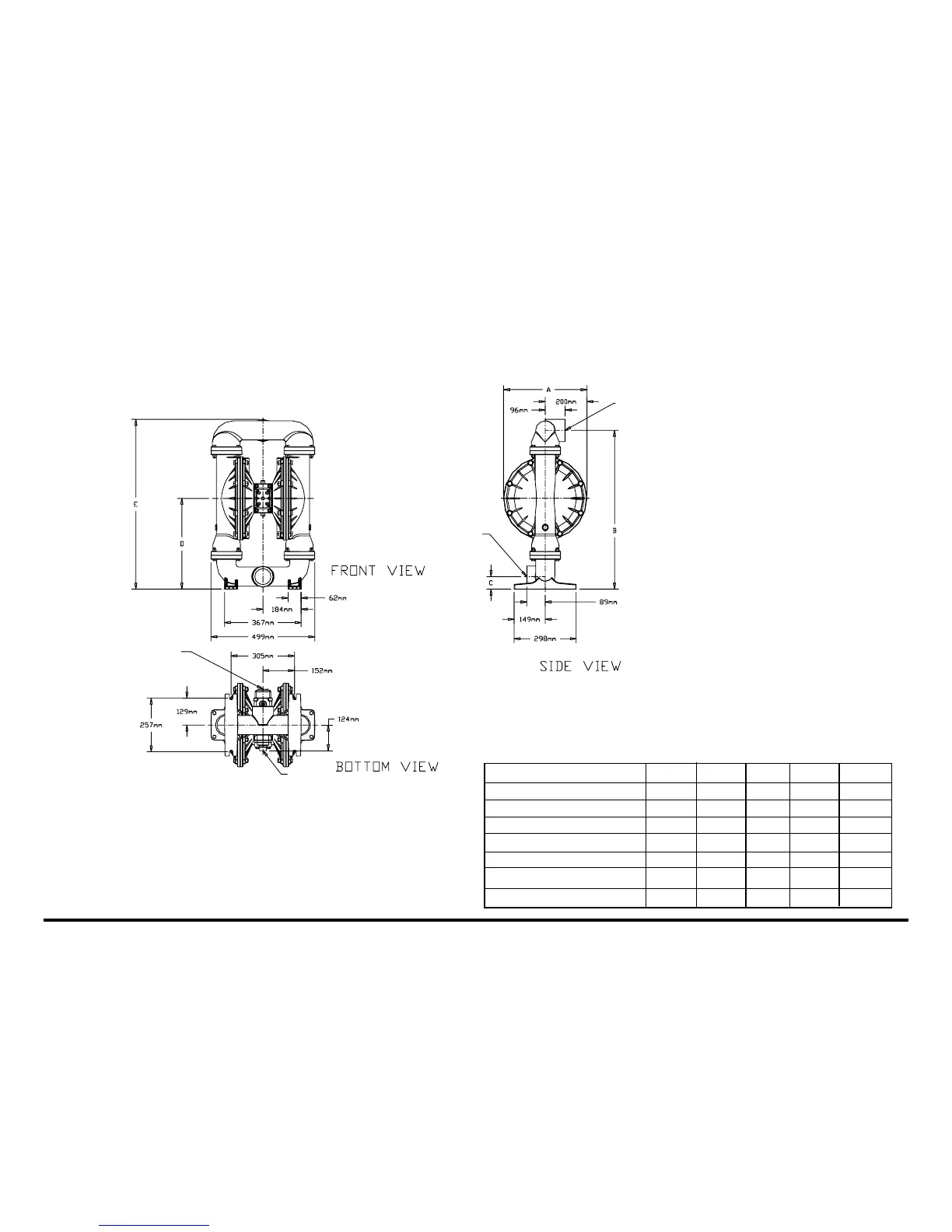

Metric Dimensions: S30 Metallic
Dimensions in Millimeters
Dimensional Tolerance:± 3mm
Discharge Port
3" NPT
Suction Port
3" NPT
Both Suction And
Discharge Ports Are
Available With
3" BSP Tapered Connection
Air Inlet
3/4" NPT
Standard Encapsulated Muffler
1" NPT Exhaust Port
For Optional Muffler
Styles Or Piping Exhaust
Air In Submerged
Applications
Pulse Output Kit
Aluminum
Sound Dampening Muffler
Encapsulated Muffler
Stainless Steel
Metal Muffler
DIMENSION
B
C
D E
400
407
761
60 435 815
767 66 441 821
Mesh Muffler
437
437
425
A
