520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 14

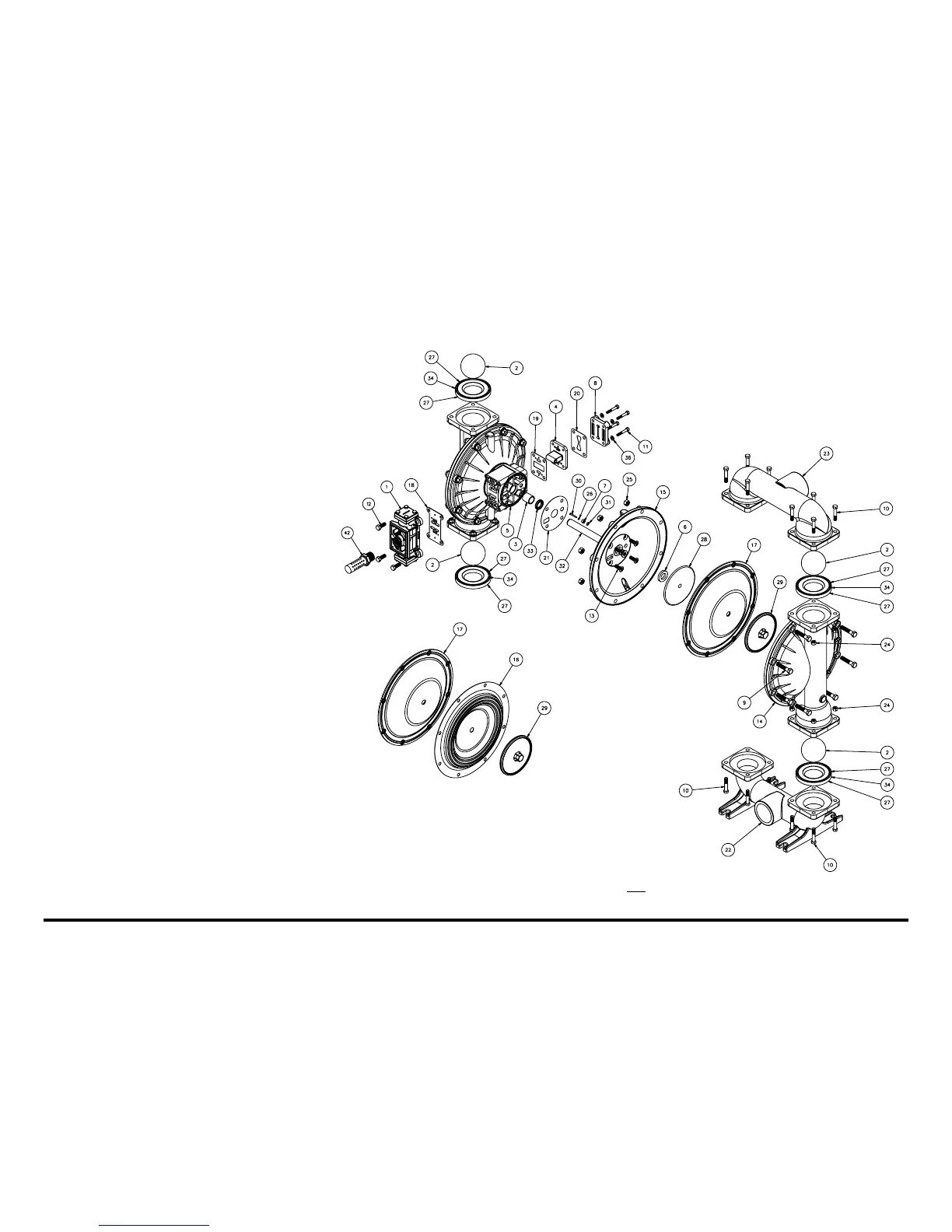

Composite Repair Parts Drawing
476-227-000 AIR END KIT (Use with Aluminum Centers)
Air Valve Assembly, Pilot Valve Assembly, Seals,
O-rings, Gaskets, Plungers
**476-170-000 AIR END KIT (Air Valve with Stroke Indicator Pin)
Seals, O-ring, Gaskets, Retaining Rings, Air Valve
Sleeve and Spool Set, and Pilot Valve Assembly
476-171-360 WET END KIT
Buna Diaphragms, Balls, and Seats.
476-171-656 WET END KIT
Santoprene Diaphragms, Balls and EPDM Seats.
476-171-364 WET END KIT
EPDM Diaphragms, Balls and Seats.
476-171-365 WET END KIT
Neoprene Diaphragms, Balls, and Seats.
476-171-633 WET END KIT
Viton Diaphragms, PTFE Balls and PTFE Seats.
476-171-635 WET END KIT
Neoprene Diaphragms, PTFE Overlay,
PTFE Balls and PTFE Seats.
475-217-000 MIDSECTION CONVERSION KIT
(Replaces Aluminum Midsection with Cast Iron
Components) Air Inlet Cap, Intermediate Bracket,
Inner Chambers, and Inner Diaphragm Plates
HARDWARE KITS
475-197-330 Zinc Plated Capscrews, Washers, and Hex Nuts
475-197-115 Stainless Steel Capscrews, Washers, and Hex Nuts
**PULSE OUTPUT KITS
(For use with 530-010-000 mufflers,
or piped exhaust)
475-198-001 DC Kit
475-198-002 DC Intrinsically Safe Kit
475-198-003 110/120VAC or 220/240VAC Kit
475-198-004 110/120VAC Intrinsically Safe Kit
475-198-005 220/240VAC Intrinsically Safe Kit
(For use with encapsulated 530-028-550 muffler)
475-198-006 DC Kit
475-198-007 DC Intrinsically Safe Kit
475-198-008 110/120VAC or 220/240VAC Kit
475-198-009 110/120VAC Intrinsically Safe Kit
475-198-010 220/240VAC Intrinsically Safe Kit
**ELECTRONIC LEAK DETECTOR KITS
032-040-000 110VAC
032-037-000 220VAC
**Note: Pumps equipped with these components are not ATEX compliant
AVAILABLE SERVICE AND CONVERSION KITS
