Sandpiper S30 Operating And Service Manual

520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 20
SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes all items used on Composite Repair Parts List except as shown)
ITEM PART NUMBER DESCRIPTION QTY
37 893-097-000 Solenoid Valve, NEMA4 1
38 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
39 241-001-000 Connector, conduit 1
241-003-000 Conduit Connector with 1
Suppression Diode (DC Only)
40 170-029-330 Capscrew, Hex HD 5/16-18 x 1.50 4
41 618-051-150 Plug 2
For Explosion Proof Solenoid Valve
(Connector not required for explosion proof coil; coil is integral with valve)
37 893-098-001 Solenoid Valve, NEMA 7/9, 24VDC 1
893-098-002 Solenoid Valve, NEMA 7/9, 24VAC/12VDC 1
893-098-003 Solenoid Valve, NEMA 7/9, 120VAC 1
893-098-004 Solenoid Valve, NEMA 7/9, 220VAC 1

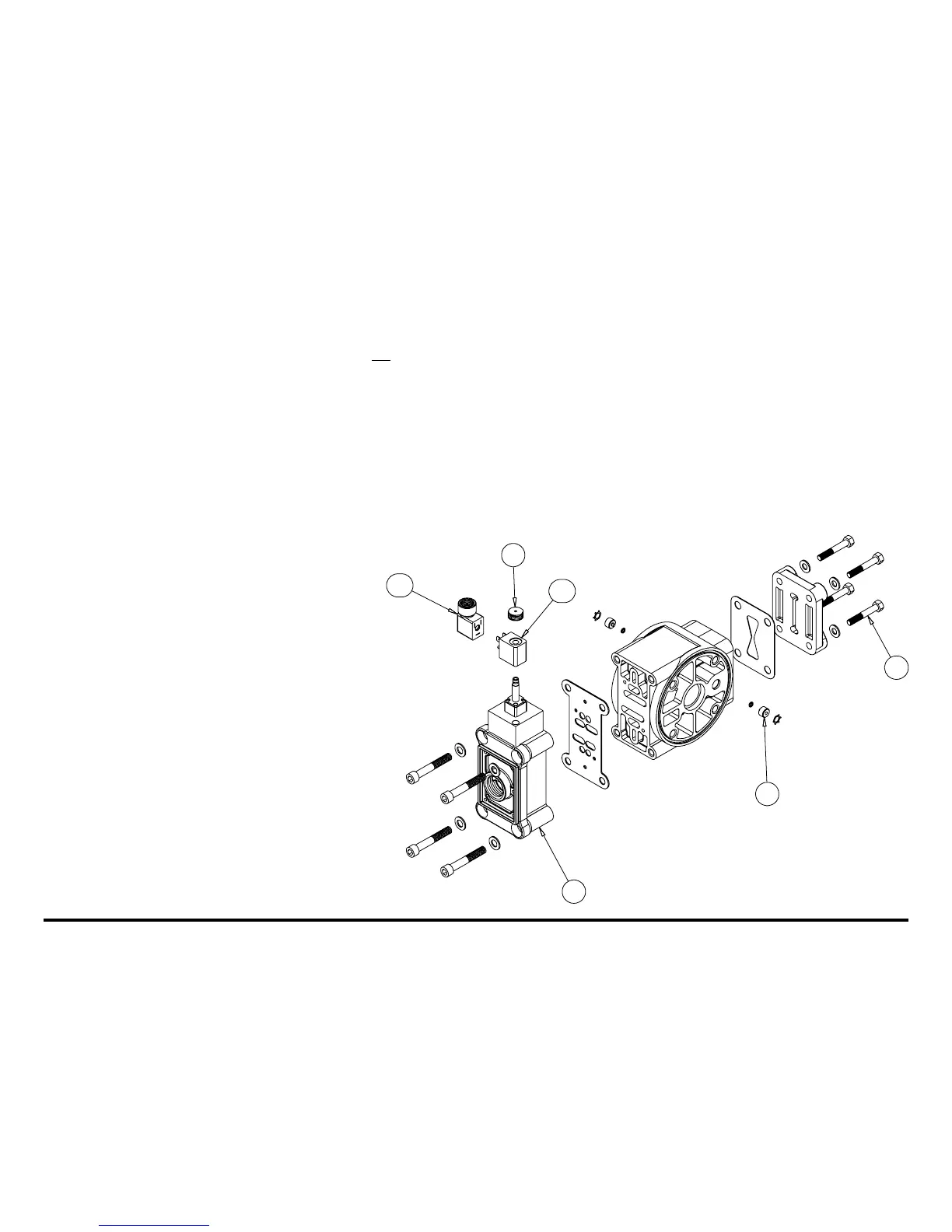

**Solenoid Shifted Air Valve Drawing
39
37
38
37
41
40
**Note: Pumps equipped with Integral Solenoid Valves are not ATEX compliant
