Sandpiper S30 Operating And Service Manual

520-222-000 1/04 Rev C Model S30 Metallic Design Level 1 Page 5
Air Inlet
3/4" NPT
1" NPT Exhaust Port
For Optional Piping Exhaust
Air In Submerged Applications
Suction Port
80 DIN (10 Bar) Flange
Ø19mm 8 Holes Equally Spaced
On A Ø160mm Bolt Circle
Discharge Port
80 DIN (10 Bar) Flange
Ø19mm 8 Holes Equally Spaced
On A Ø160mm Bolt Circle

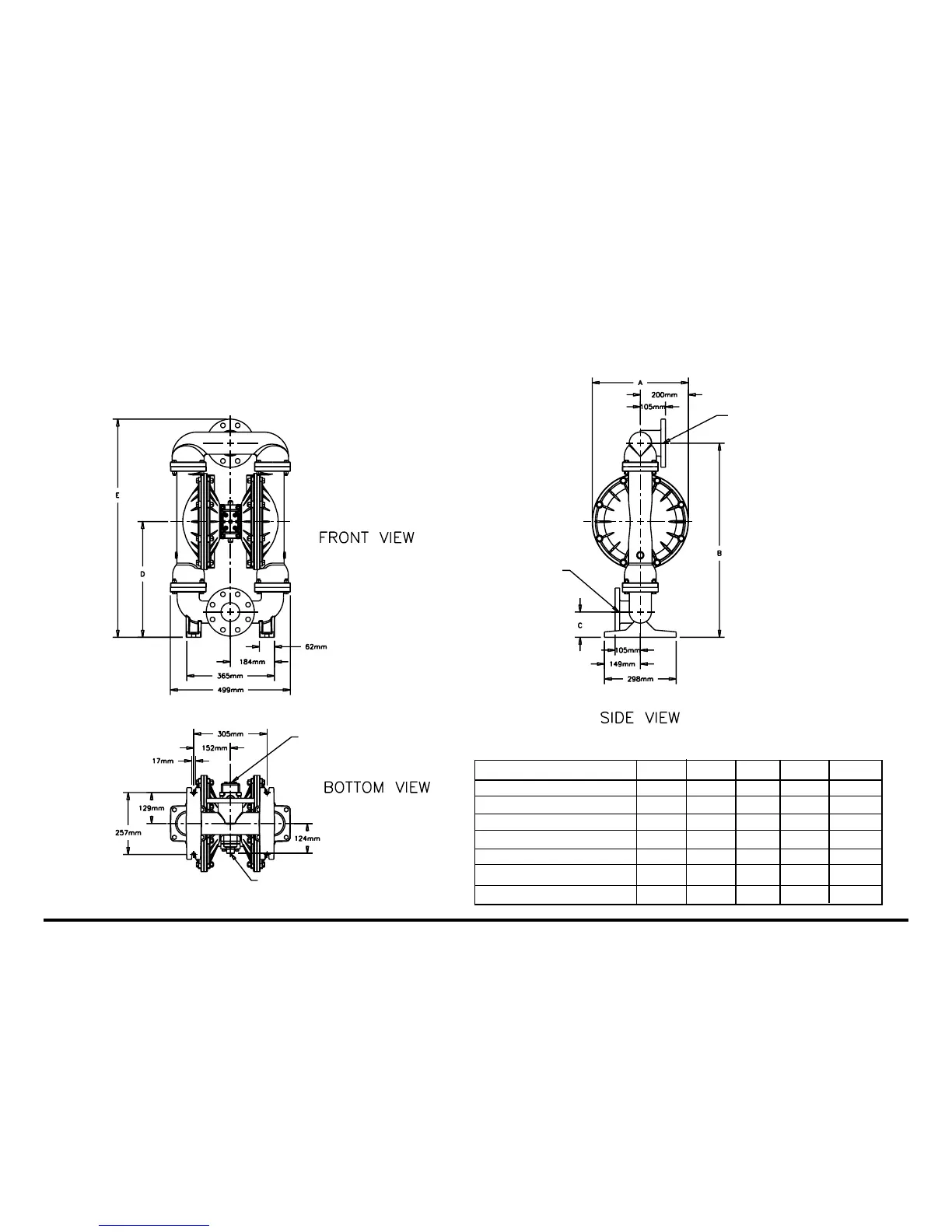

Metric Dimensions: S30 Metallic (Flanged)
Dimensions in Millimeters
Dimensional Tolerance:± 3mm
Pulse Output Kit
Aluminum
Sound Dampening Muffler
Encapsulated Muffler
Stainless Steel
Metal Muffler
DIMENSION
B
C
D E
400
407
806
105 481 906
808 107 483 908
Mesh Muffler
422
422
410
A
