Santerno SINUS MINI Series - The Shape and Mounting Dimensions of the Operating Panel（Unit：MM; Keyboard Tray

SINUS MINI High performance Vector Control Inverter User Manual
15
Three
-phase
380V
SINUS−0002 4T
78
188
126
55
178
4
1.5
SINUS−0003 4T
SINUS−0004 4T
SINUS−0005 4T
96
225
137
65
215
4
2
SINUS−0006 4T
Three
-phase
460V
SINUS−0002 5T
78
188
126
55
178
4
1.5
SINUS−0003 5T
SINUS−0004 5T
SINUS−0005 5T
96
225
137
65
215
4
2
SINUS−0006 5T

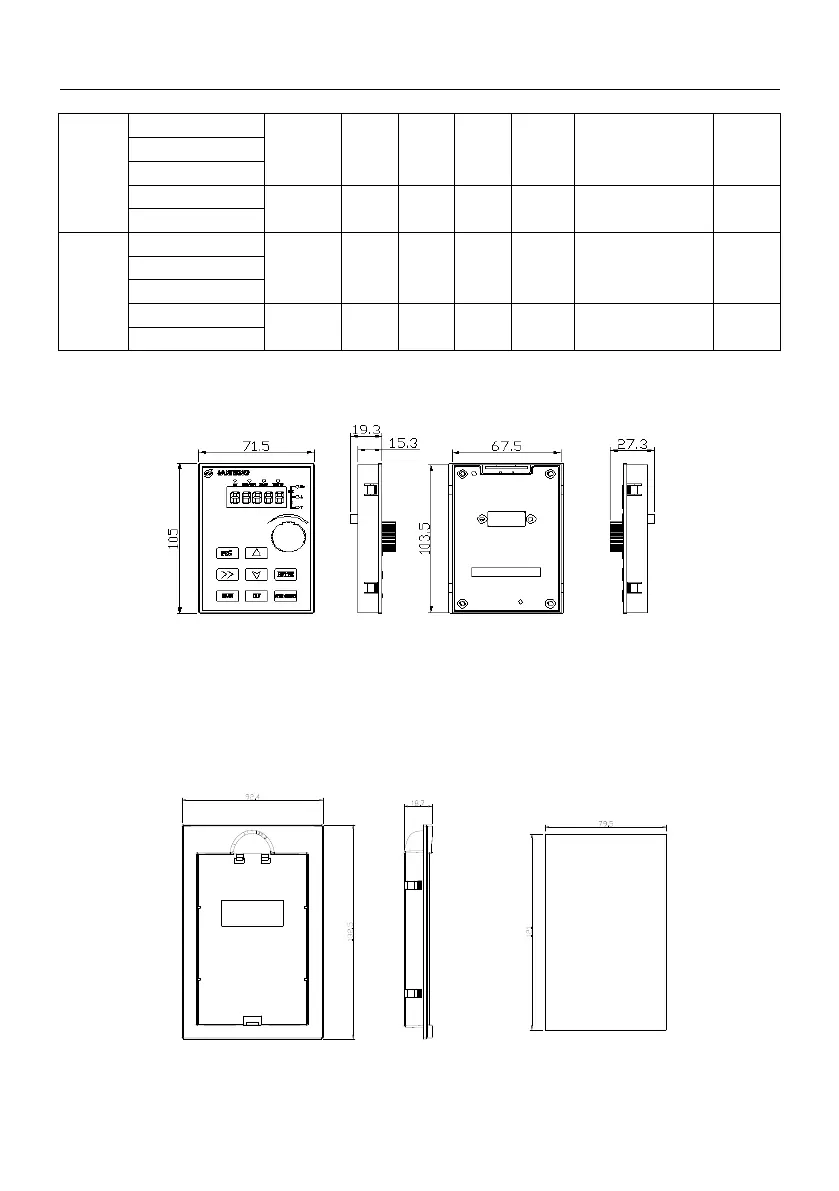

2.4 The shape and mounting dimensions of the operating panel（unit：mm）
Keyboard (SINUS MINI-DF01) Rear view of Keyboard
2.5 Keyboard tray
SINUS MINI−DF03 is the operation panel to install plate cabinet use, its shape and size are as follows:
