Sanwa CD731A - MEASUREMENT PROCEDURE; Start-up Inspection

−30−
3-2 Multimeter, Test leads

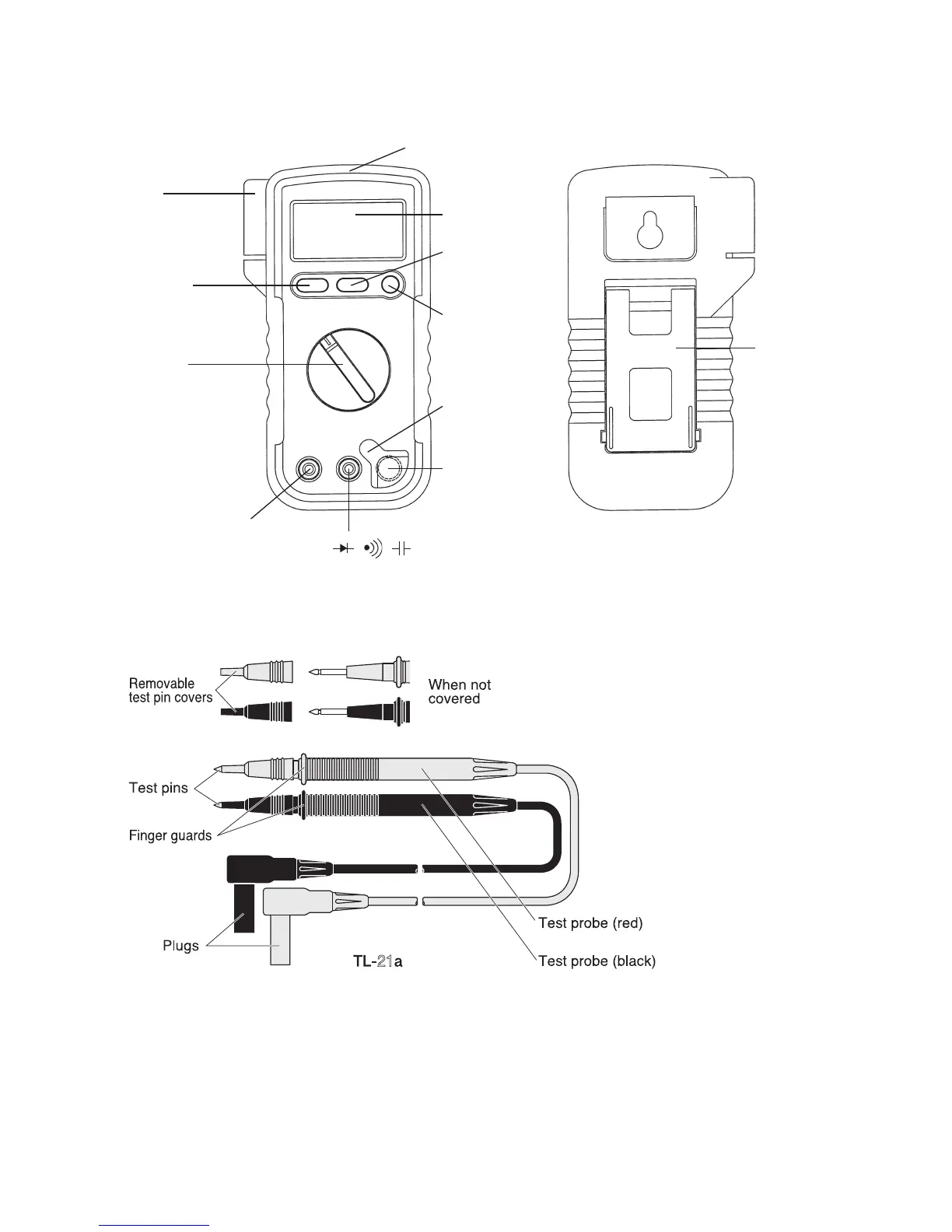

〔Fig 2〕
Stand
Test lead
Fix
Holster
Display
Data hold
switch
Select
switch
Safety cover
4･20 A input
terminal
COM − input
terminal
Range hold
switch
Power switch
and function
switch
V, Ω,● , ●, ●,μA,mA
＋ input terminal
Removabletestpincovers

Whennotcovered： CAT.ϩ1000V
(DC1000V/AC750V
formeter)
 Whencovered：CAT.Ϫ600V

