[2] Using the PC20TK
2-1 Intended uses and features
1. The PC20TK is a kit for a general-purpose digital multimeter (DMM), which has been designed for
educational uses. Once assembled, it may be used as a normal small-capacity DMM for low-
voltage measurements.
2. The PC20TK features the auto mode that automatically selects an appropriate measurement range
in accordance with the measured value. It may also be used in the manual mode (measurement
range fixed or manually selectable) that allows for faster measurements.
3. The PC20TK allows the user to measure electric capacitance of a capacitor, which is often used
with a resistor as a circuit component.
4. The current measurement connector is provided with a safety cover that prevents the user from
inserting a test lead into it by mistake.
5. If you connect the PC20TK to your PC by using the optionally available PC link (software) and PC
link cable, changes in electric quantity can be displayed as values or graphs on the PC monitor.
2-2 Names of various parts
Range Hold switch
Function switch
with power switch
Hole for VDC adjustment
(DCV ADJ.)
Panel
LCD
Select switch
Data Hold
switch
Safety cover
COM (-) connector
V,
Ω, , ,
(+) measurement connector
µA & mA
measurement
connector
Rear case
mounting
screw
Stand
LED

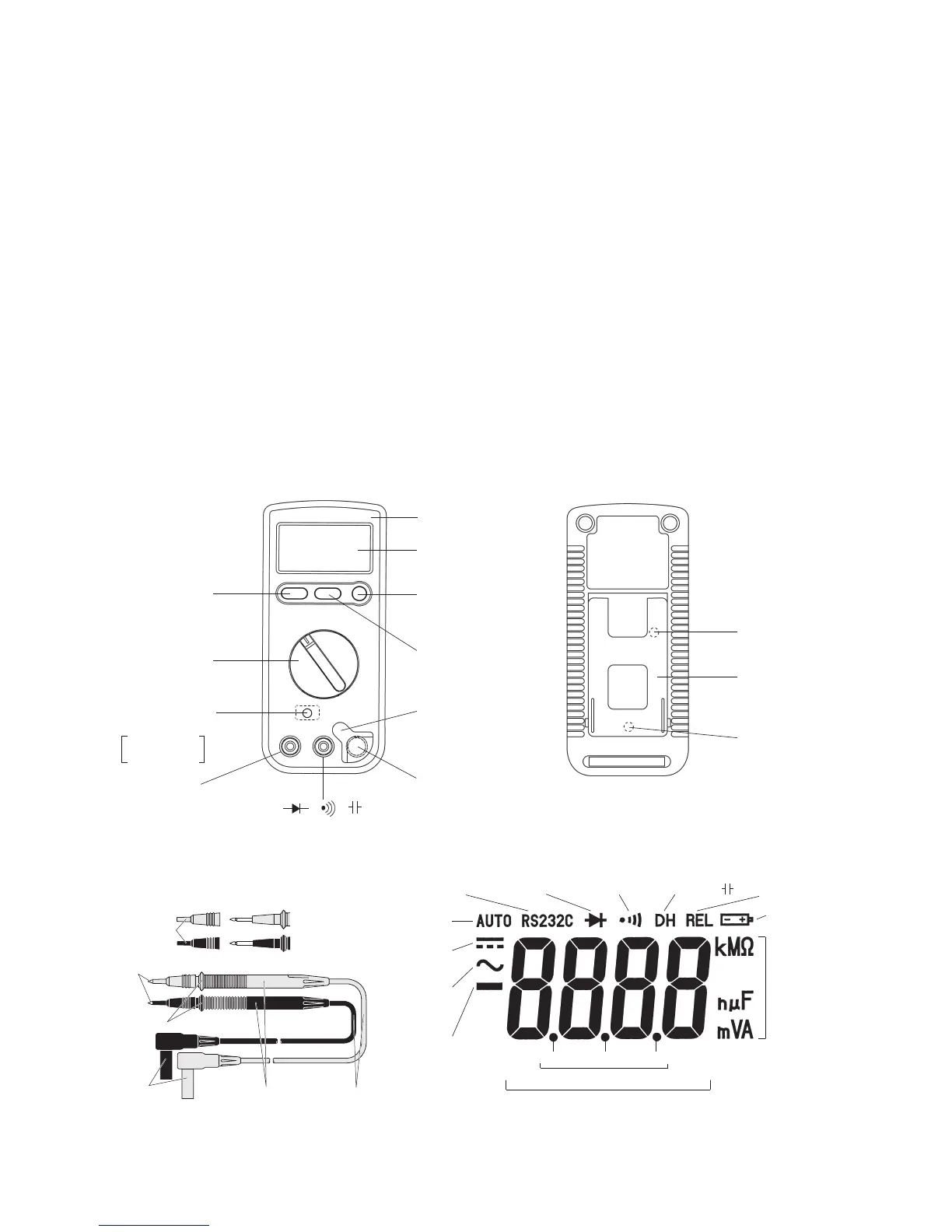

Fig. 1-1: Names of various parts
Fig. 1-2: Test leads (TL-21) Fig. 1-3: Readout
(a)
(b) (c)
Decimal point
Value displayed
Measurement
unit
Negative sign for
numeric data
AC measurement
indicator
DC measurement
indicator
Auto mode
RS232C mode
Diode test
mode
Continuity
check mode
Data hold
mode
Relative value
measurement mode
(
measurement only)
Battery level
warning
Put the seal after
adjustment.
Test pin
Flange
Pin plug
Grip Cord
When
not covered
Removable
test pin
covers
