Carefully check the terminals for position and type before making any connections.
The illustration of the external equipment may be different depending on your model.
Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their
terminals.
Refer to the operating manual of the external device as well.
When connecting an external device, turn the power off to avoid any issues.
Cautions Before Connecting
Connections

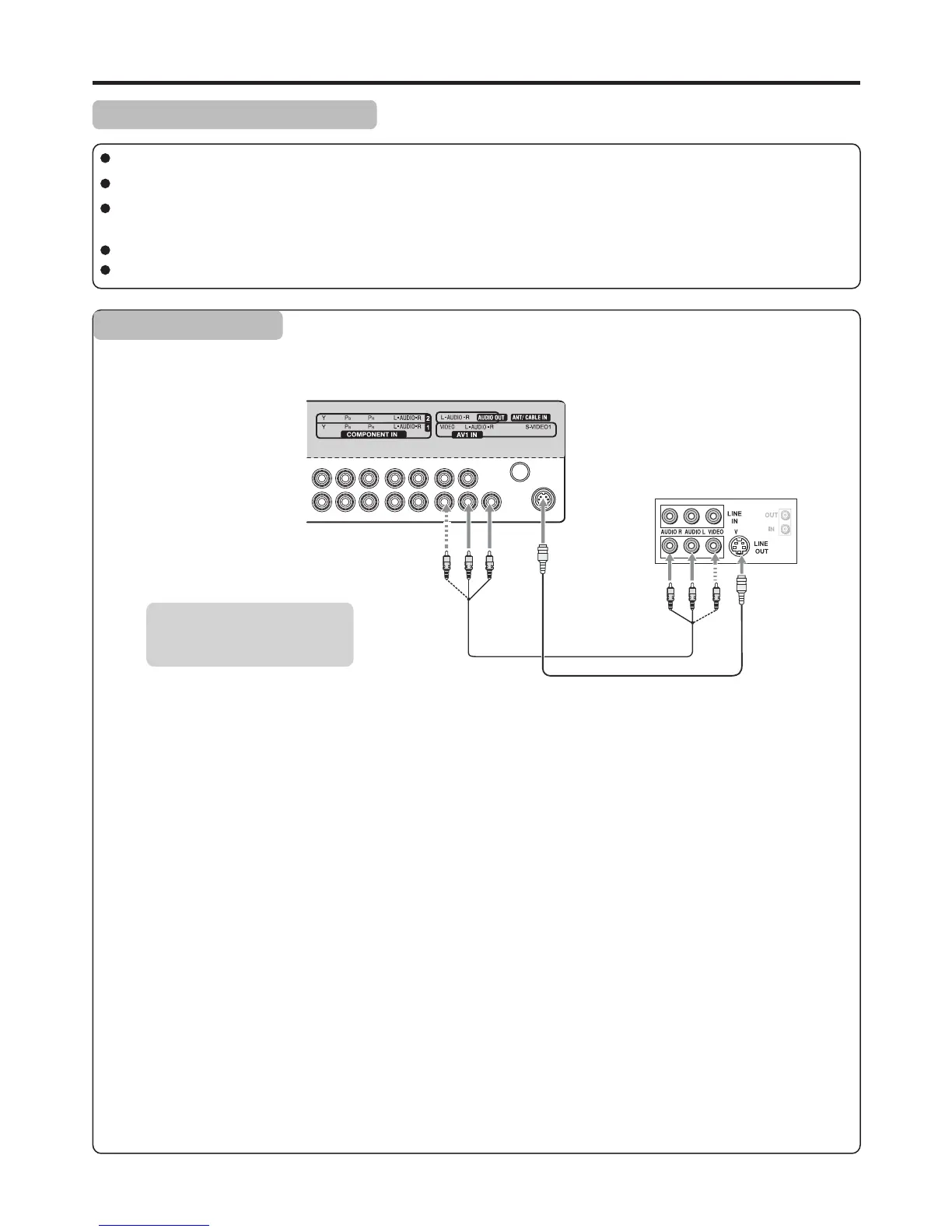

Connecting a VCR
Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.
Note: For better video, you can use the S-video terminal if your source supports it.
How to connect:
1. Turn on your TV, then press INPUT button. The INPUT SOURCE menu opens.
2. Press 5or6to select AV1or S-Video1, then press ENTER to confirm.
(Or you can press VIDEO button one or more times to select directly. )
3. Turn on your VCR , insert a videotape and press the Play button.
To play VCR
Note:
· AV1 and S-Video1 connection share the same audio jacks.
AV cable
TV REAR
VCR
S-VIDEO
S-VIDEO
cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
11
