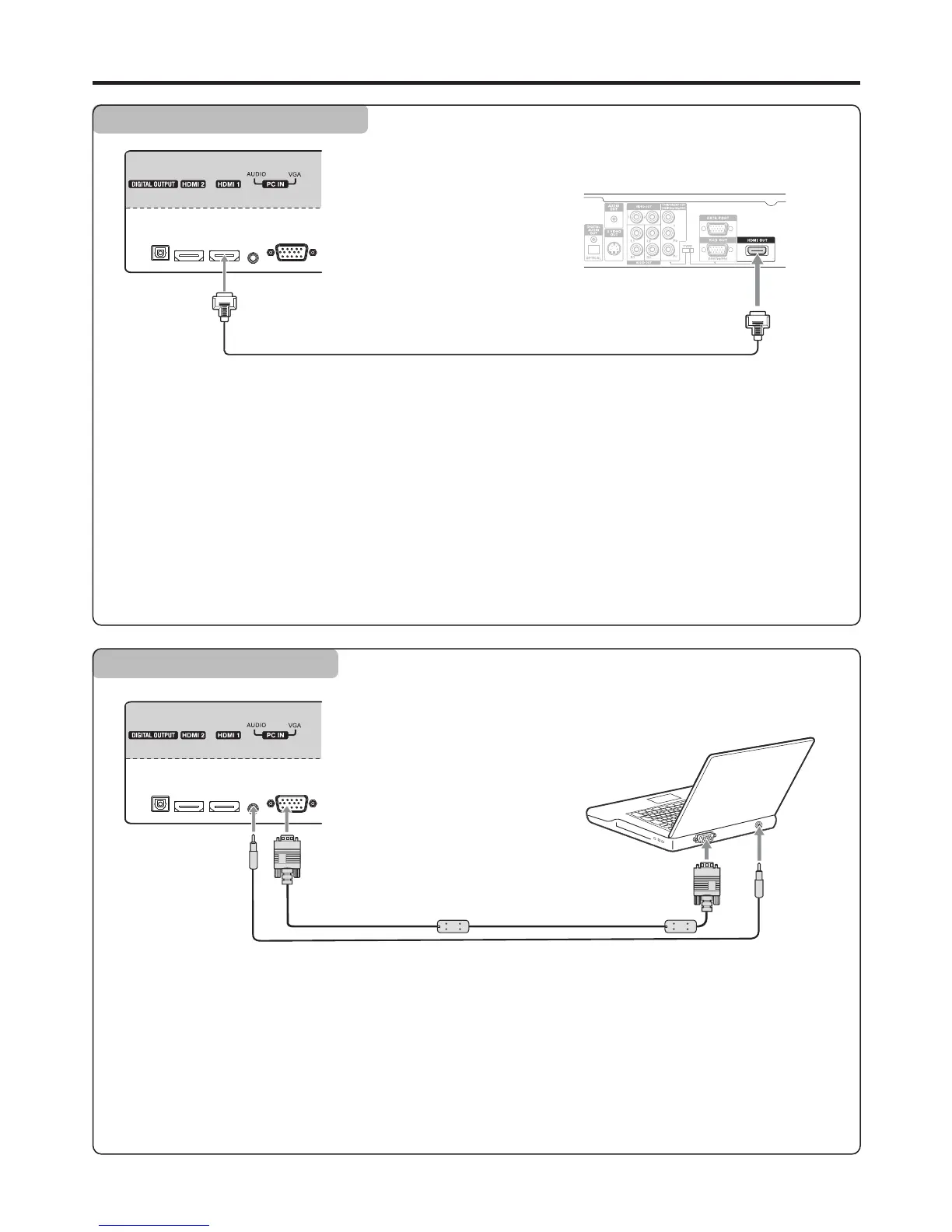

Connections (Continued)
Connecting an HDMI device
Connect the HDMI cable between the HDMI interface on the unit and HDMI output on the device.
To play from the device using HDMI:
How to connect a device using HDMI Connection:
1. Turn on your TV, then press INPUT button. The INPUT SOURCE menu opens.
2. Press 5or6to select HDMI 1, then press ENTER to confirm.
(Or you just press HDMI button to select directly.)
3. Turn on your device and set it to the correct mode. See the device’s user guide for more information.
! If HDMI2 interface is used, please select HDMI2 mode. If HDMI3 interface is used, then select HDMI3 mode correspondingly.
! If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio
cable to the VGA AUDIO IN jack on the TV rear.
Note:
HDMI cable
Device with HDMI output
TV REAR
Connecting a Computer
How to connect:
1. Turn on your TV, then press INPUT button. The INPUT SOURCE menu opens.
2. Press5or6to select VGA, then press ENTER to confirm.
(Or you just press VGA button to select directly.)
3. Turn on your computer, and adjust the display properties as required.
To play video from a computer
Connect a VGA cable between the VGA jack on the computer and the VGA input jack on the unit.
Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.
13
D-Sub cable
(analog RGB)
To monitor port
(15-pin D-Sub)
To audio output jack
Audio cable
(stereo mini plugs)
TV REAR
To Next Page
