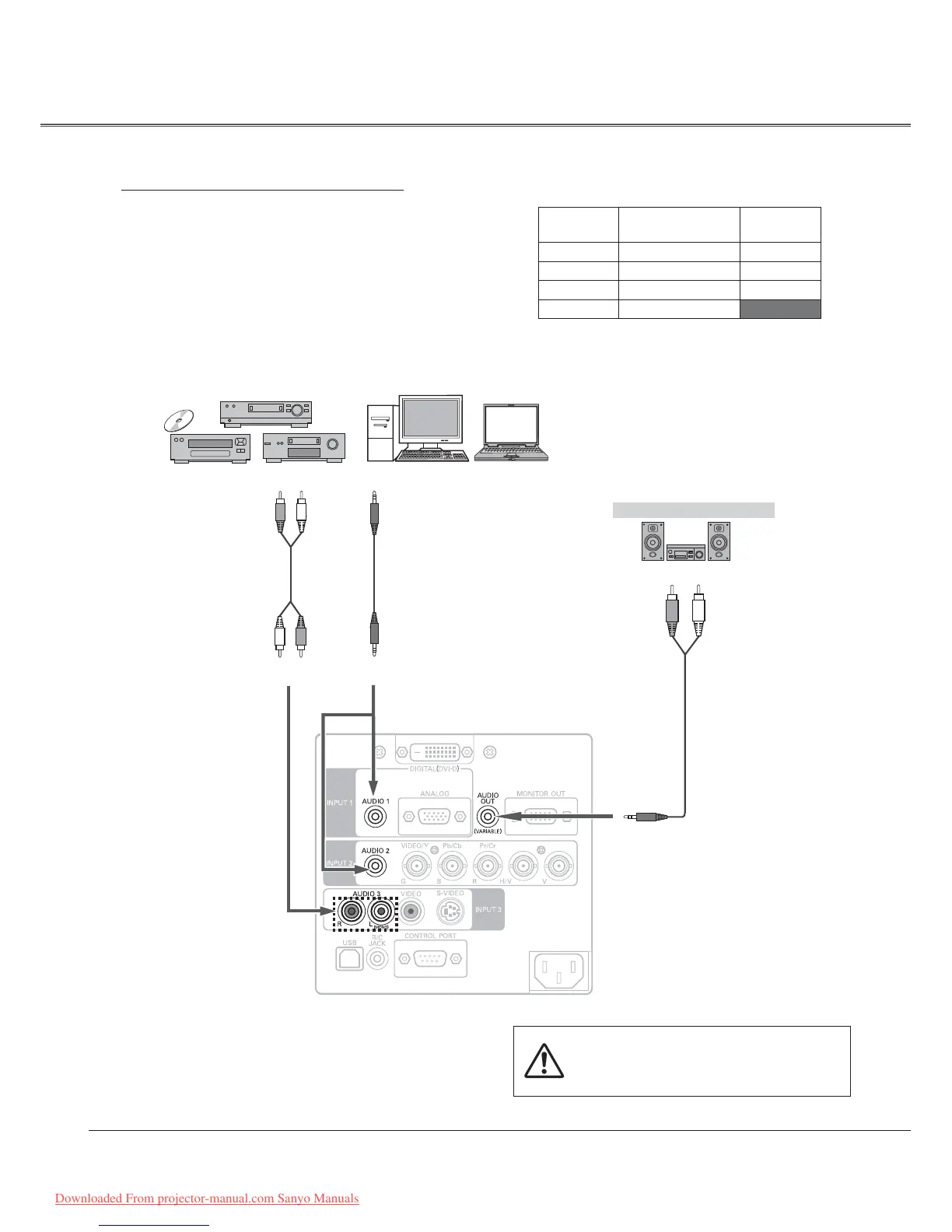

Connecting for Audio Signal
Cables used for connection
s!UDIO#ABLE-INI0LUG;STEREO=X
s!UDIO#ABLE2#!X
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
Audio Input
Audio Output
AUDIO OUT
(stereo)
Audio cable
(RCA)
AUDIO IN
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting cables.
Notes:
 s7HENTHE!5$)//54ISPLUGGEDINTHEPROJECTORSBUILT
INSPEAKERISNOTAVAILABLE
 s7HENTHE3TANDBYMODEISSETTOh%COhINTHE3ETTING
-/.)4/2/54AND!5$)//54AREDISABLEDP
Installation
Audio cable
(stereo)
Selected
Input
MONITOR OUT
Terminal
AUDIO OUT
Terminal
Input 1 Input 1(D-Sub) Input 1
Input 2 Input 2(5-BNC) Input 2
Input 3 Input 1 or Input 2
*
Input 3
Network Input 1 or Input 2
*
NIL
MONITOR OUT and AUDIO OUT Specifications
*
Between Input1 and Input2, the last selected
Input is output to MONITOR OUT terminal.
