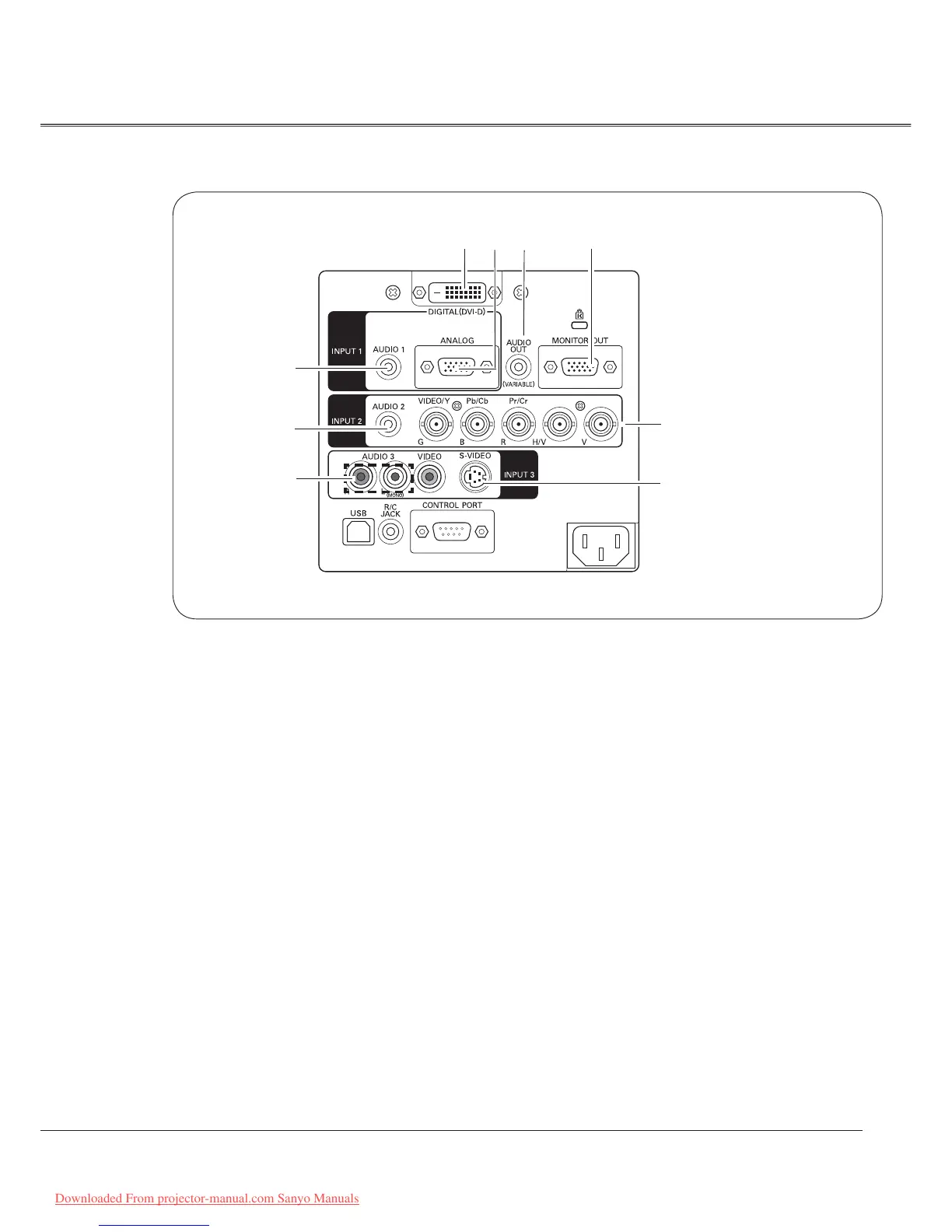

Side Terminal
D
J 8 E
G
<
H
LAUDIO 2 JACK
Connect the audio output (stereo) signal from a
computer or video equipment connected to < to
this jack (p.22).
GAUDIO 1 JACK
Connect the audio output (stereo) signal from a
computer or video equipment connected to D or
J to this jack (p.22).
HAUDIO 3 JACKS (L(MONO)/R)
Connect the audio output signal from video
equipment connected to B or to these jacks
(p.22). For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack.
<5 BNC INPUT JACKS
Connect the component or composite video output
signal from video equipment to VIDEO/Y, Cb/Pb,
and Cr/Pr jacks or connect the computer output
signal (5 BNC Type [Green, Blue, Red, Horiz. Sync,
and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.20-
21).
JCOMPUTER INPUT TERMINAL (ANALOG)
Connect the computer (or RGB scart) output signal
to this terminal (p.20).
DCOMPUTER INPUT TERMINAL (DIGITAL)
Connect the computer output signal (Digital DVI-D
type) to this terminal. The HDTV (HDCP compatible)
signal can also be connected (p.20).
B
Part Names and Functions
EMONITOR OUTPUT TERMINAL (ANALOG)
This terminal outputs the video signal from
computer to external video equipment (p.21).
8AUDIO MONITOR OUTPUT JACK (VARIABLE)
This jack outputs the audio signal from computer
or video equipment to external audio equipment
(p.22).
L
BS-VIDEO INPUT JACK
Connect the S-VIDEO output signal from video
equipment to this jack (p.21).
