DWARNING TEMP. indicator
– Lights red light when the projector detects an abnormal
condition or the filter cartridge is not installed.
– Blinks red when the internal temperature of the
projector exceeds the operating range (pp.66, 75).
EON/STAND-BY button
Turn the projector on or off (pp.24–25).
GINPUT button
Select an input source (pp.34–35).
HPOINT ! (VOLUME +/–) buttons
– Select an item or adjust the value in the On-Screen
Menu (p.26).
– Pan the image in Digital zoom + mode (p.47).
– Adjust the volume level (Point buttons) (p.29).
<SELECT button
–Execute the selected item (p.26).
– Expand or compress the image in the Digital zoom
mode (p.47).

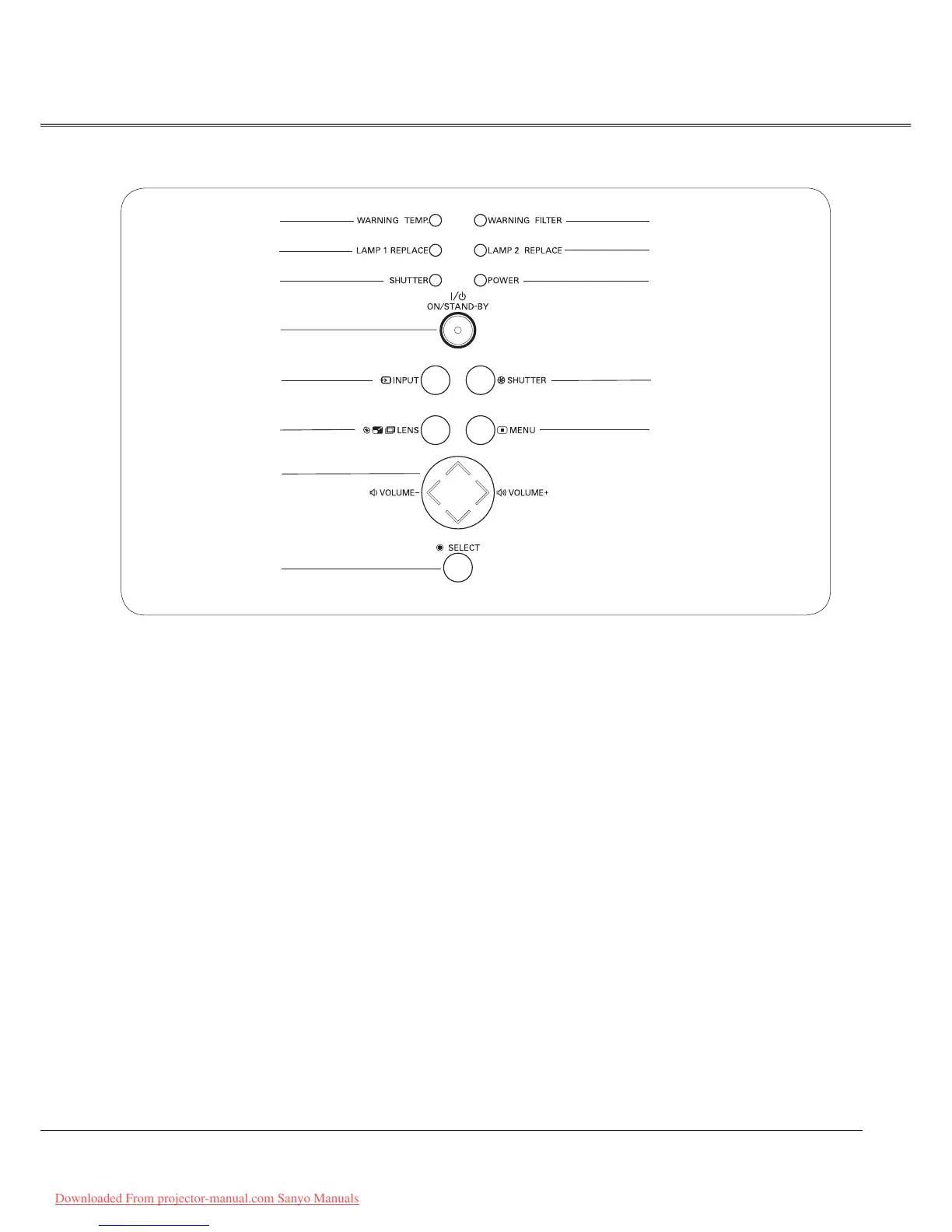

Top Control
E
L
LLENS button
Enter the focus, zoom, and lens shift adjustment mode
(p.28).
MENU button
Open or close the On-Screen Menu (p.26).
Part Names and Functions
SHUTTER button
Close and open up the built-in shutter.(pp.28, 56)
J
LAMP 1 REPLACE indicator
Turn yellow when the life of the projection lamp1 draws
to an end. (pp.63-64, 74)
LAMP 2 REPLACE indicator
Turn yellow when the life of the projection lamp2 draws
to an end. (pp.63-64, 74)
8
SHUTTER indicator
Light blue when the shutter is closed. (pp.73-75)
POWER indicator
– Light red while the projector is in stand-by mode.
– Light green during operations.
– Blink red during the cooling-off period.
– Blink green in the Power management mode or the
Shutter management mode(p.56).
B
WARNING FILTER indicator
– Blink slow when the filter is being scrolled (pp. 53, 73).
– Blink fast when the filter scroll is not working properly
or the filter cartridge is not installed (pp.59-60, 75).
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time set in the
timer setting, urging immediate filter/ filter cartridge
replacement (pp.59-60, 75).
