-17-
Mechanical Disassembly

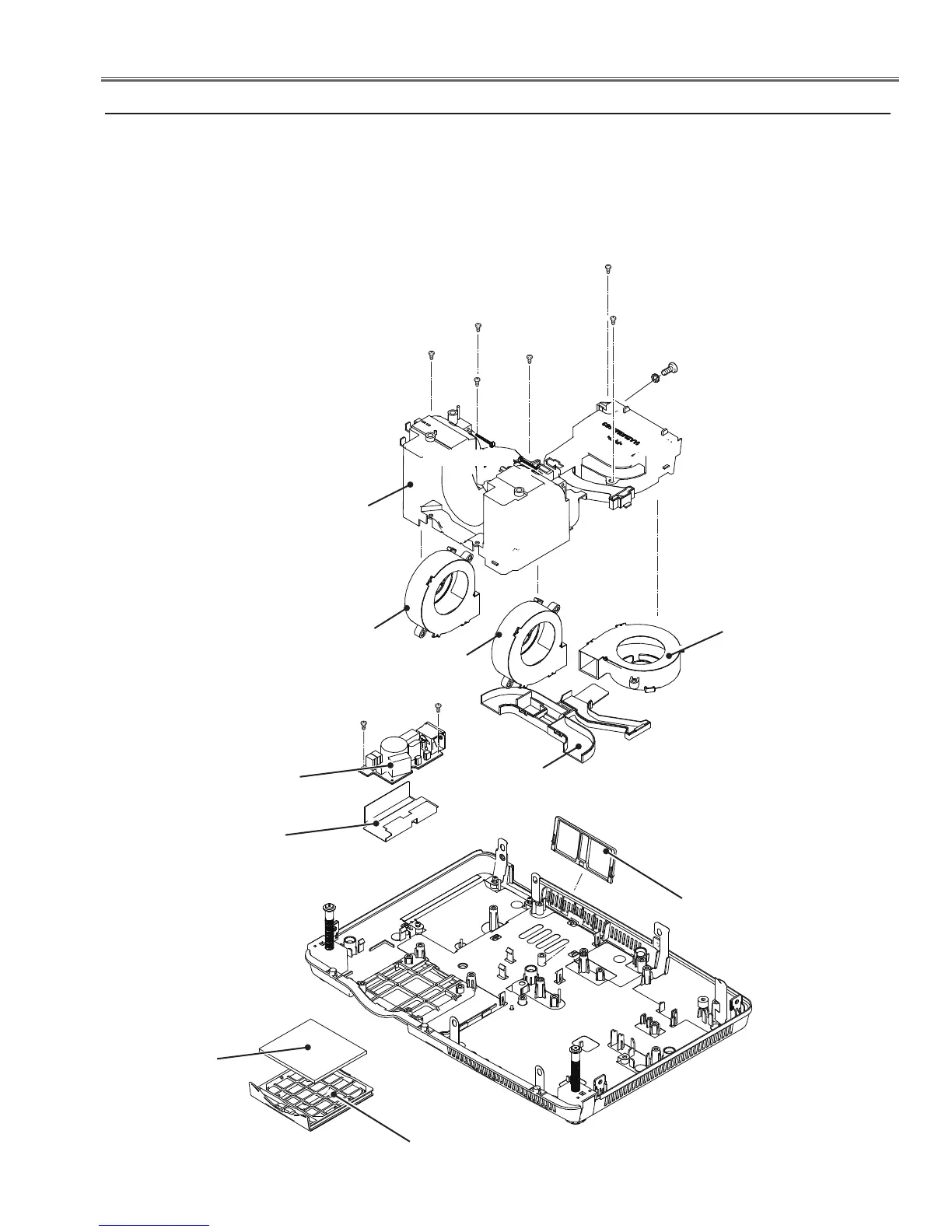

Fig.5
5.Mounting Duct, Fan(FN903, FN904, FN905) and Filter Board removal
Filter Board
F (M3x6)
1. Remove screw A (M4x4) , 2 screws B (T3x12) and 4screws C (T3x6) to remove the Mounting duct top,
Mounting duct bottom and fan (FN904).
2. Remove 2 screws D ( T3x12) to remove the fans (FN903 and FN905).
3. Remove screw E (T3x8) and screw F (M3x6) to remove the filter board.
4. Remove the Air filters.
A M4x4)
C T(3x6)x4
FN905
FN903
FN904
Mounting duct
bottom
Mounting duct top
Air filter
A
B (T3x12)x2
B
C
C
C
D(T3x12)x2
D
Air filter base
Filter Board spacer sheet
Air filter
E (T3x8)
To Next Page
