Sanyo PLC-XU355A User Manual

-20-
Optical Parts Disassembly
L3P06X-86G20
a03CA142I8
-86G20
L3P06X-85G20
a00ca146I8
-85G20
G-LCD PANEL
There are 2 types of LCD Panel/Prism Ass'y for this model. Either L-Type or R-Type LCD Panel/Prism Ass'y is used
on the projector. Check which type of LCD Panel/Prism Ass'y is used with the figure below.
When replacing the LCD Panel/Prism Ass'y, you need to take "Panel Type Check and Setting" on the Electrical Adjust-
ment for the replaced LCD Panel/Prism Ass'y.
The gamma-characteristics is different between L-Type and R-Type LCD Panel/Prism Ass'y.

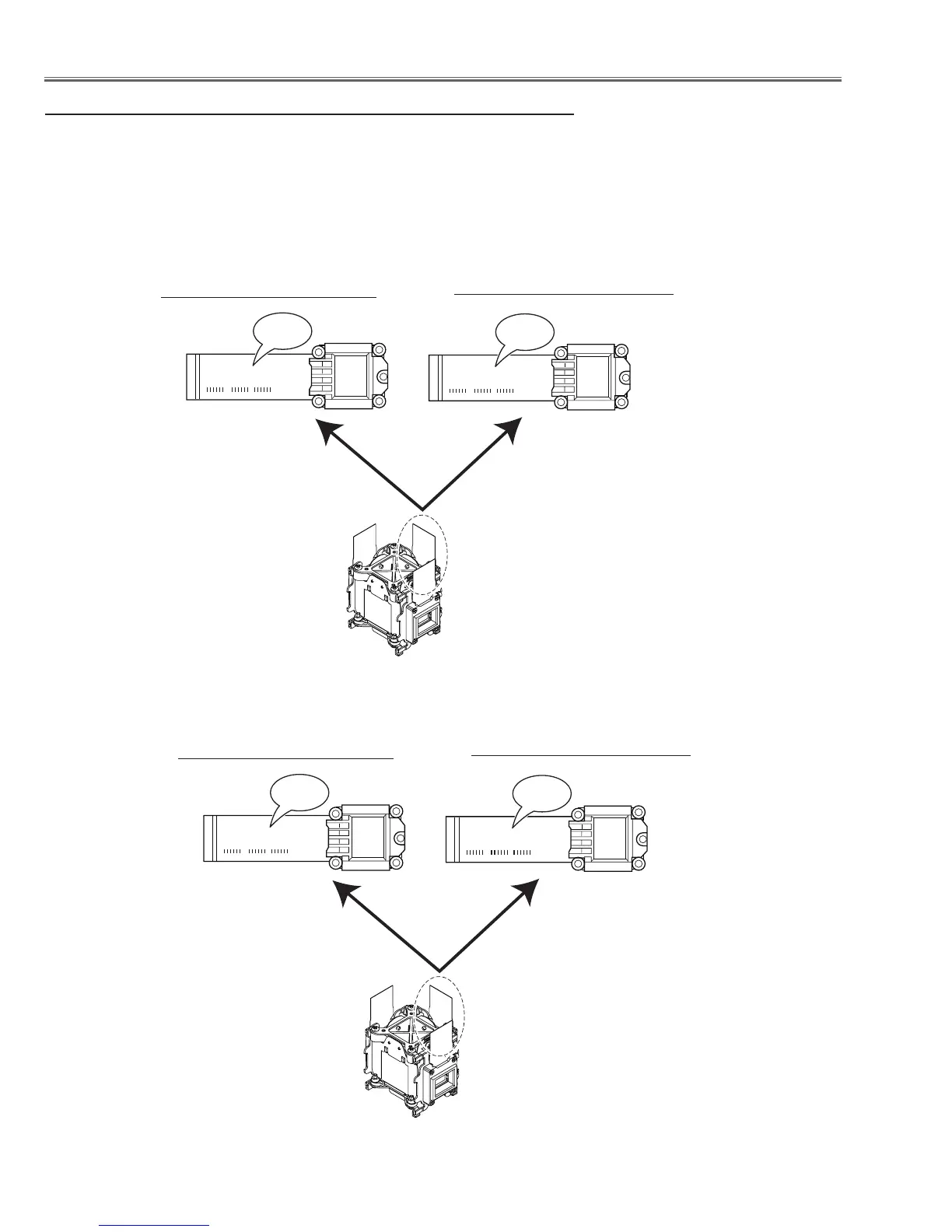

How to check the type of LCD Panel/Prism Ass'y
Check the printed number on the flat cable of the G-LCD Panel.
L-Type LCD Panel/Prism Ass'y
R-Type LCD Panel/Prism Ass'y
Fig.3-2
Panel Type Check
For PLC-XU355A
L3P06X-82G20
a03CA142I8
-82G20
L3P06X-81G20
a00ca146I8
-81G20
G-LCD PANEL
L-Type LCD Panel/Prism Ass'y
R-Type LCD Panel/Prism Ass'y
For PLC-XU305A
