KG5-XU355A00 , KB5-XU305A00

-73-

Electrical Parts List

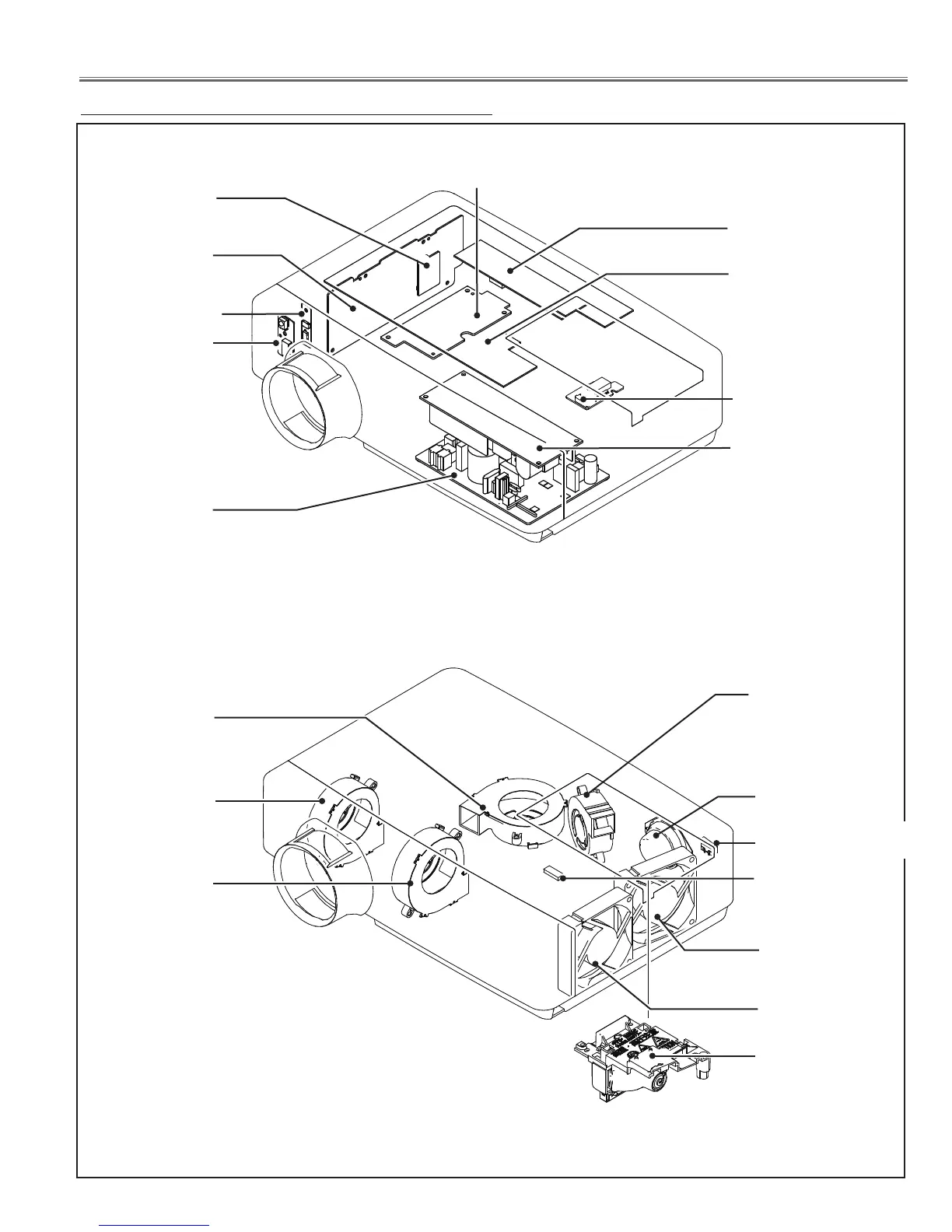

Electrical Parts Location

● Assemblied Boards

A2800

R/C Board

● Out Of Circuit Board

A2300

Network Board

A1000

Main Board

A901

Ballast Board

A601

Power Board

FN903

Cooling Fan

FN906

Cooling Fan

LP900

Lamp Ass’y

FN905

Cooling Fan

SP901

Speaker

FN901

Cooling Fan

FN904

Cooling Fan

SW902

Thermal Switch

A2200

Antenna Board

A2400

Module Board

A8700

CONNECT ID Board

A1001

AV Board

A602

Filter Board

FN902

Cooling Fan

SW901

Lamp Cover Switch
