- 19 -
Mechanical disassemblies
5

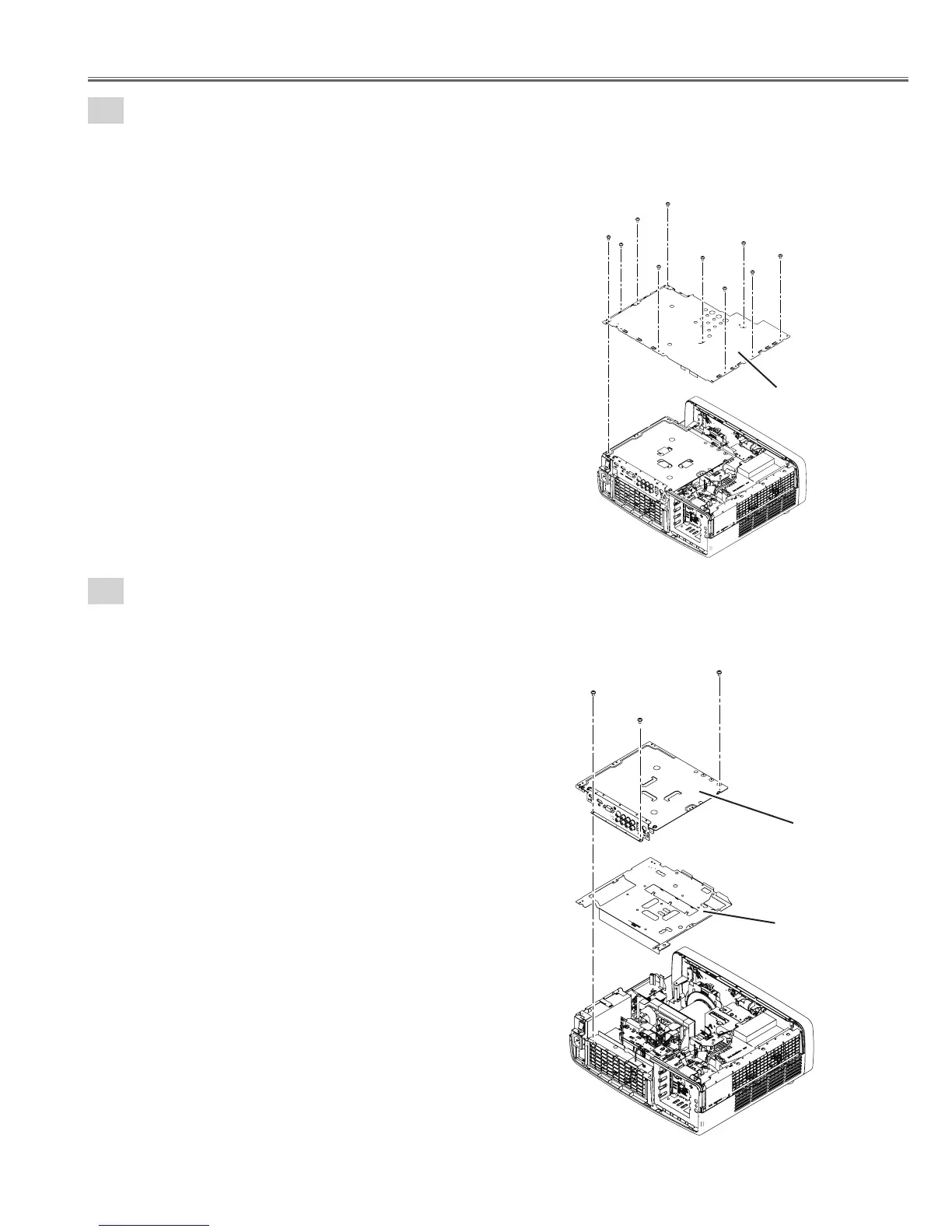

Main PWB shield plata(top) removal.
1. Remove the10 screws-A(M3x6) and remove the Shield plate (Main board-top) .
6
Main PWB removal.
1. Remove the 3 screws (M3x6), remove the Main board and remove the Shield plate (Main board-BTM).
Shield plate
(Main board TOP)
Shield plate
(Main board BTM)
Main board
