Sanyo SAP-KRV91EH User Manual

8

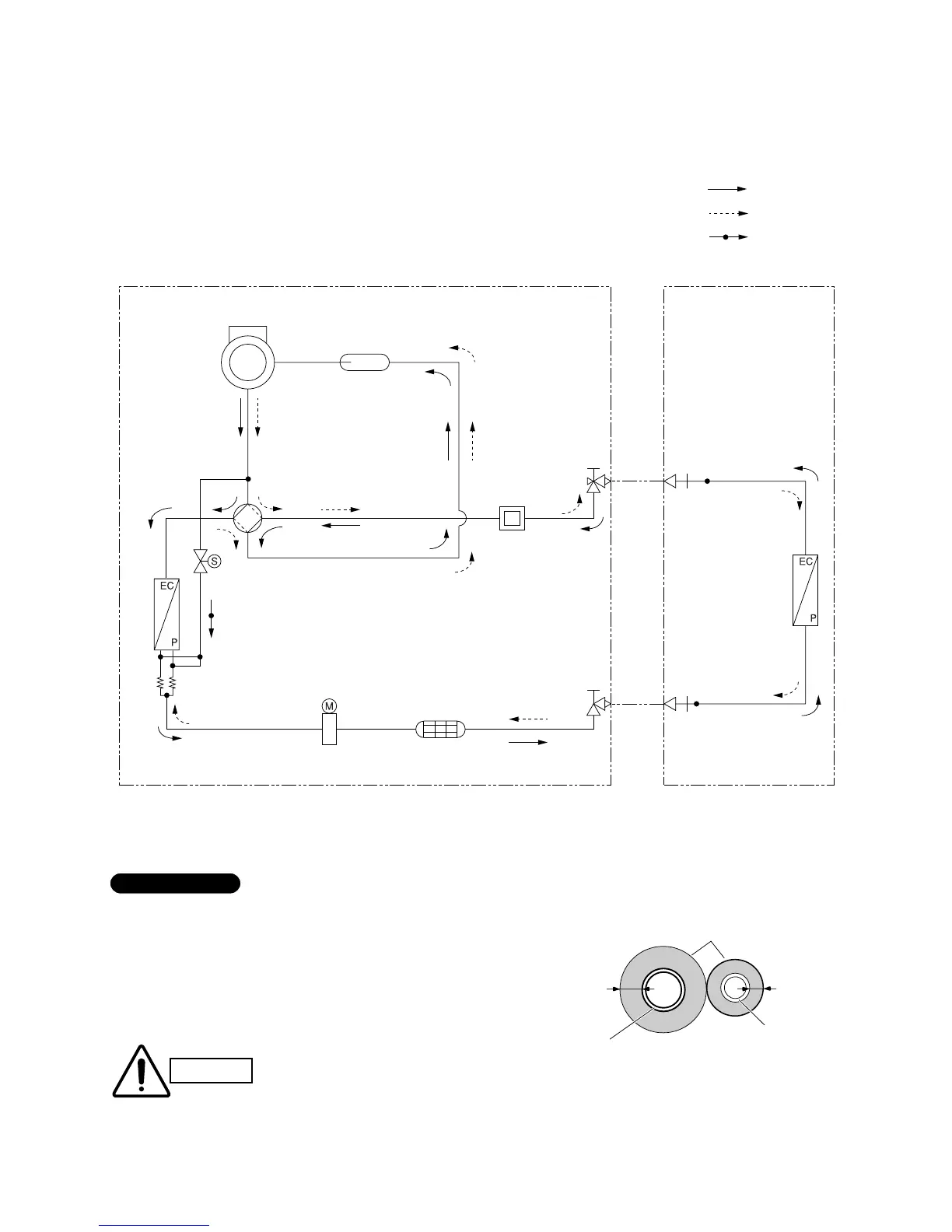

4. REFRIGERANT FLOW DIAGRAM
4-1. Refrigerant Flow Diagram
Indoor unit SAP-KRV91EH
Outdoor unit SAP-CRV91EH
ø9.52
ø6.35
Indoor heat
exchanger
Outdoor heat exchanger
Outdoor unit Indoor unit
Wide tube
service valve
Narrow tube
service valve
Wide tube
nipple
Narrow tube
nipple
Accumulator
Muffler
Capillary
tube for distribution
EM valve
4-way valve
Cooling cycle
Heating cycle
Defrosting
Compressor
Strainer
Electronic expansion valve
Modulator
Insulation of Refrigerant Tubing
Because capillary tubing is used in the outdoor unit, both the
wide and narrow tubes of this air conditioner become cold. To
prevent heat loss and wet floors due to dripping of condensa-
tion, both tubes must be well insulated with a proper insu-
lation material. The thickness of the insulation should be a
minimum 8 mm.
IMPORTANT
CAUTION
After a tube has been insulated,
never try to bend it into a narrow
curve because it can cause the
tube to break or crack.
Wide tube
Thickness:
Min. 8 mm
Insulation
Narrow tube
Thickness:
Min. 8 mm
