7-3-1. Mounting on a Wall
a) Remote Control Unit
When attaching to wall
(1) Confirm the indoor unit beeps when the ON/OFF
button is pressed at the wall location where the
remote control unit is to be attached, then attach
the holder to the wall. (Fig. 13)
(2) When taking out the remote control unit, pull it
from the holder. (Fig. 14)
When using the remote control unit
●
Point the transmission portion of the remote control
unit at the receiver area of the indoor unit when
operating the remote control unit, and during opera-
tion of the air conditioner.
●
Do not place objects which may block the transmit-
ted signals between the receiver and the remote
control unit.
b) People Sensor
How to use the remote control unit holder
Turn the power source switch ON at the spot where
you intend to install the holder, and confirm the
indoor unit beeps. (Figs. 14 and 15)

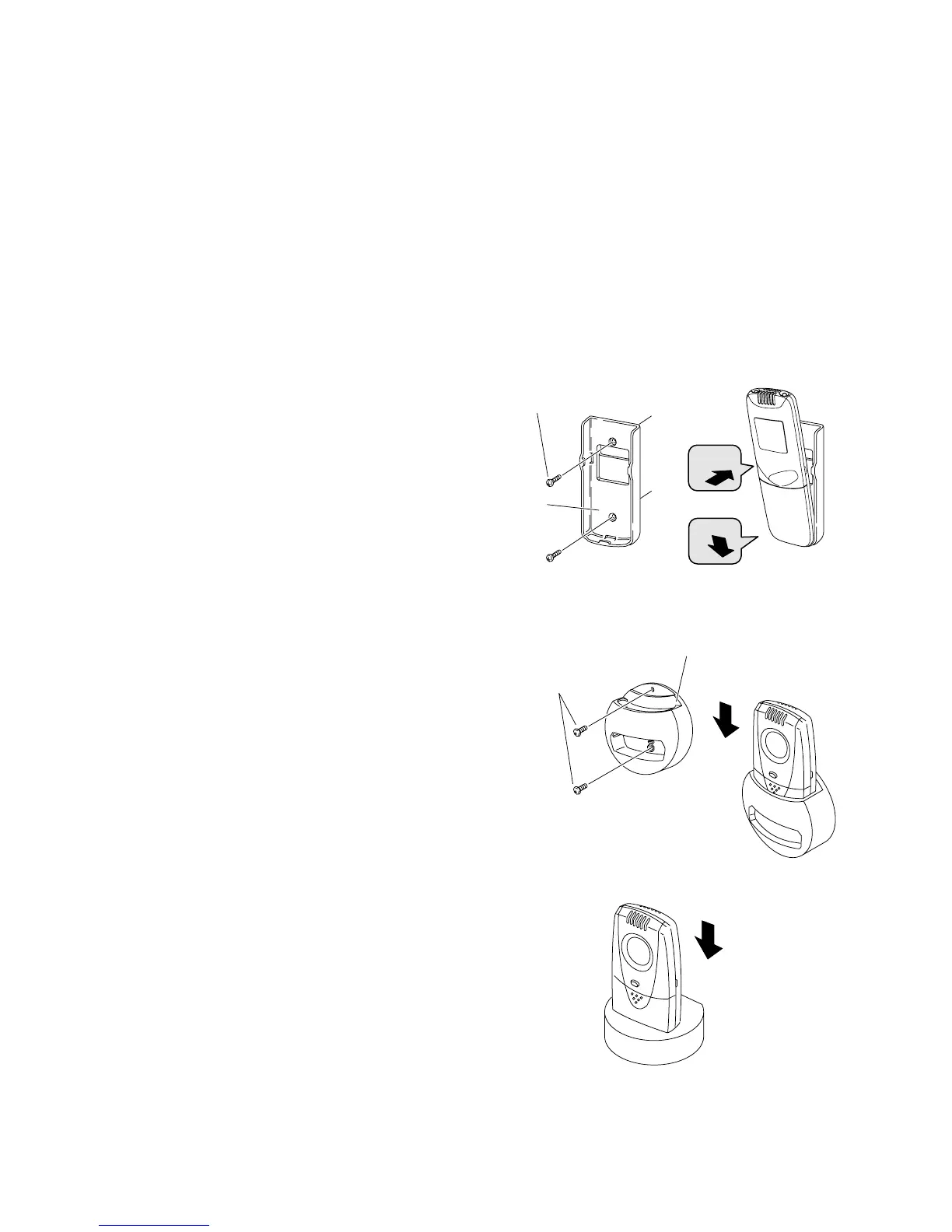

Truss-head tapping screws
4 × 16 mm (supplied)
Holder for People Sensor-type
remote control unit
Insert
Fig. 14
When attaching to wall
Fig. 15
When placed on table, etc.
7-3. Remote Control Unit Installation Position
The remote control unit can be operated from either a non-fixed position or a wall-mounted position.
To ensure that the air conditioner operates correctly, do not install the remote control unit in the following places:
●
In direct sunlight
●
Behind a curtain or other place where it is covered
●
More than 8 m away from the air conditioner
●
In the path of the air conditioner’s airstream
●
Where it may become extremely hot or cold
●
Where it may be subject to electrical or magnetic interference
●
Where the temperature changes rapidly (near heater, etc.)
●
Where strong vibration or shock occurs
●
Where there are obstacles which may block or inter-
fere with the infrared signal, such as glass
●
Near telephone, computer or radio
●
Outside the detectable range, such as on top of
refrigerator
1
2
Truss-head
tapping screws
4 × 16 mm (supplied)
Remote
control
unit holder
Press
Hook
