11. REFRIGERANT R410A:
SPECIAL PRECAUTIONS WHEN SERVICING UNIT
11-1. Characteristics of New Refrigerant R410A
11-1-1. What is New Refrigerant R410A?
R410A is a new refrigerant that contains two types of pseudo-non-azeotropic refrigerant mixture which
do not adversely affect the earth’s ozone layer. Its refrigeration capacity and energy efficiency are about
the same level as the conventional refrigerant, R22.
11-1-2. Components (mixing proportions)
HFC32 (50%) / HFC125 (50%)
11-1-3. Characteristics
●
Less toxic, more chemically stable refrigerant
●
The composition of refrigerant R410A changes whether it is in a gaseous phase or liquid phase. Thus, when
there is a refrigerant leak the basic performance of the air conditioner may be degraded because of a change
in composition of the remaining refrigerant.
Therefore, do not add new refrigerant.
Instead, recover the
remaining refrigerant with the refrigerant recovery unit. Then, after evacuation, totally recharge the specified
amount of refrigerant with the new refrigerant at its normal mixed composition state (in liquid phase).
●
When refrigerant R410A is used, the composition will differ depending on whether it is in gaseous or liquid
phase, and the basic performance of the air conditioner will be degraded if it is charged while the refrigerant is
in gaseous state.
Thus, always charge the refrigerant while it is in liquid phase.

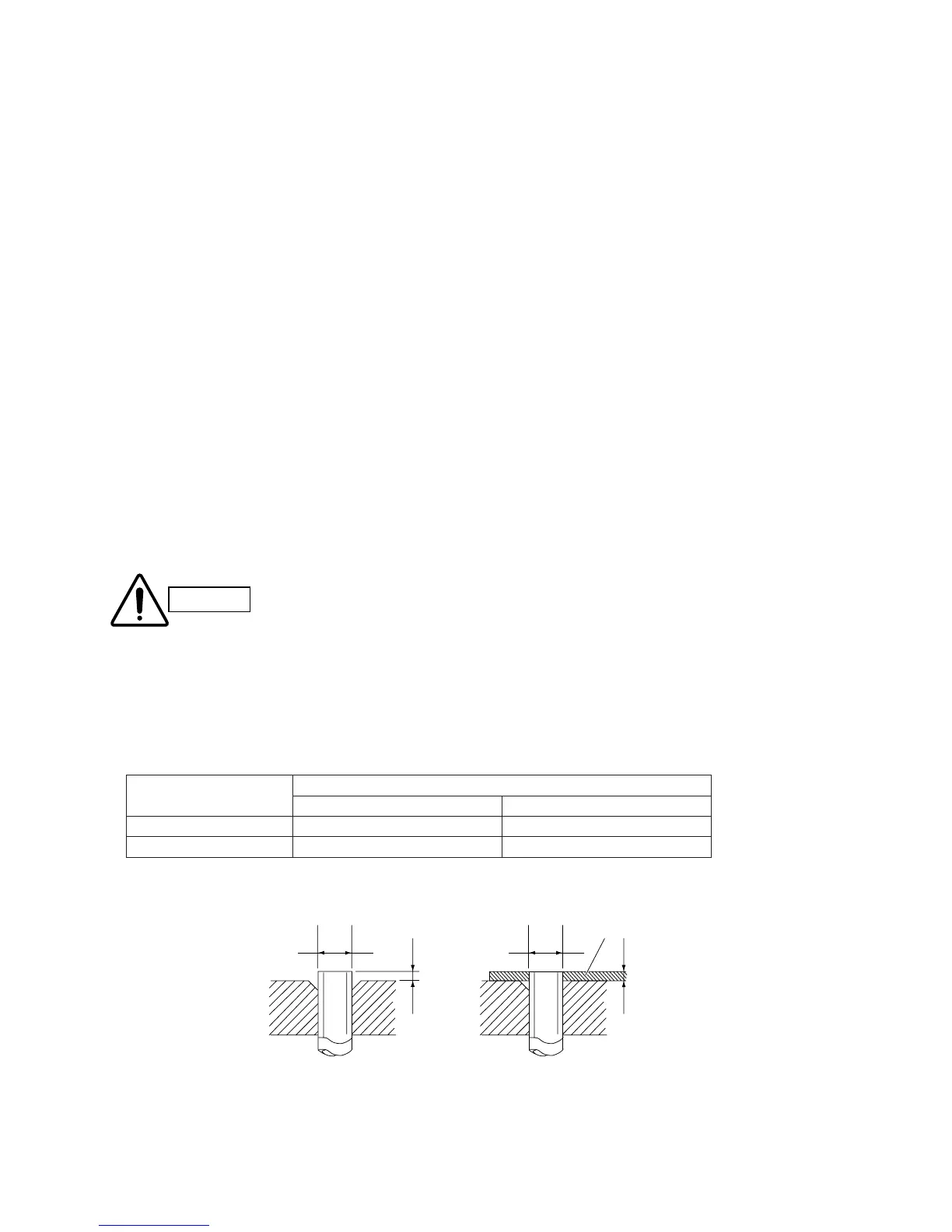

11-2. Checklist Before Servicing
Use a clutch-type flare tool for R410A or the conventional flare tool. Note that sizes of the resultant flares differ
between these two tools. Where a conventional flare tool is used, make sure to observe A Specification (amount
of extrusion) by using the flare spacer supplied with the indoor unit.
●
Size of flare
Ether-type oil is used for compressor oil for R410A-type units, which is different
from the mineral oil used for R22. Thus more attention to moisture prevention and
faster replacement work compared with conventional models are required.
Diameter of tube (ø) D
A Specification
Flare tool for R410A Conventional flare tool (for R22)
ø6.35 (1/4") 0 – 0.5 mm 1.0 – 1.5 mm
ø9.52 (3/8") 0 – 0.5 mm 1.0 – 1.5 mm
