Before Operation
(PEOPLE SENSOR)
Mounting Position and
Detection Area
Sensitivity Adjustment
The sensitivity of the People sensor can vary depending on the wall
temperature and other conditions. Adjust the sensitivity if people cannot
be detected in the required area.
Adjusting the Sensitivity 1. Set the Power ON/OFF switch to ON.
Make sure that a beeping sound is heard from the indoor unit.
2. Wait for approximately one minute.
3. Then, adjust the sensitivity adjustment knob within the next five
minutes so that the monitor lamp lights up when someone is
detected in the required area.
The People sensor lamp on the indoor unit lights up.
•
If the sensitivity adjustment knob is set to CONTINUOUS, the People
Sensor is constantly activated, regardless of the movement of
people.
Using the PEOPLE
SENSOR Mount
Set the Power ON/OFF switch to ON at the desired usage location, and
make sure that a beeping sound is heard from the indoor unit.
Do not mount (place) the People sensor in the following locations.
•
Places exposed to direct sunlight or strong sources of light
•
Places exposed to high humidity or water
•
Places subject to sudden changes in temperature (such as near a
stove)
•
Places subject to strong vibrations or jolts
•
Places having glass or other objects which can block infrared signals
•
Places where blinds or curtains are contained within the detection
area
•
In the vicinity of telephones, computers, radios, or other devices
which can generate noise
•
On top of refrigerators or other places outside of the detection area
NOTE
•
The People Sensor does not work until about one minute has
elapsed after the Power switch is turned on. When it is on, the
People Sensor sends signals at about 10-minute intervals if it detects
that people are present. If people are not detected, it sends signals
at up to 15-minute intervals.
•
The sensitivity of the People sensor varies depending on the wall
temperature, amount of clothing worn by people, and the quickness
of their movement.
•
The People sensor cannot detect people when they are not moving.
If there is little movement of people, set the sensitivity adjustment
knob to the CONTINUOUS position. The sensor also detects the
movement of pets.
V
e
r
t
i
c
a
l
6
0
°
H
o
r
i
z
o
n
t
a
l
1
0
0
°
(Example)
(Example)

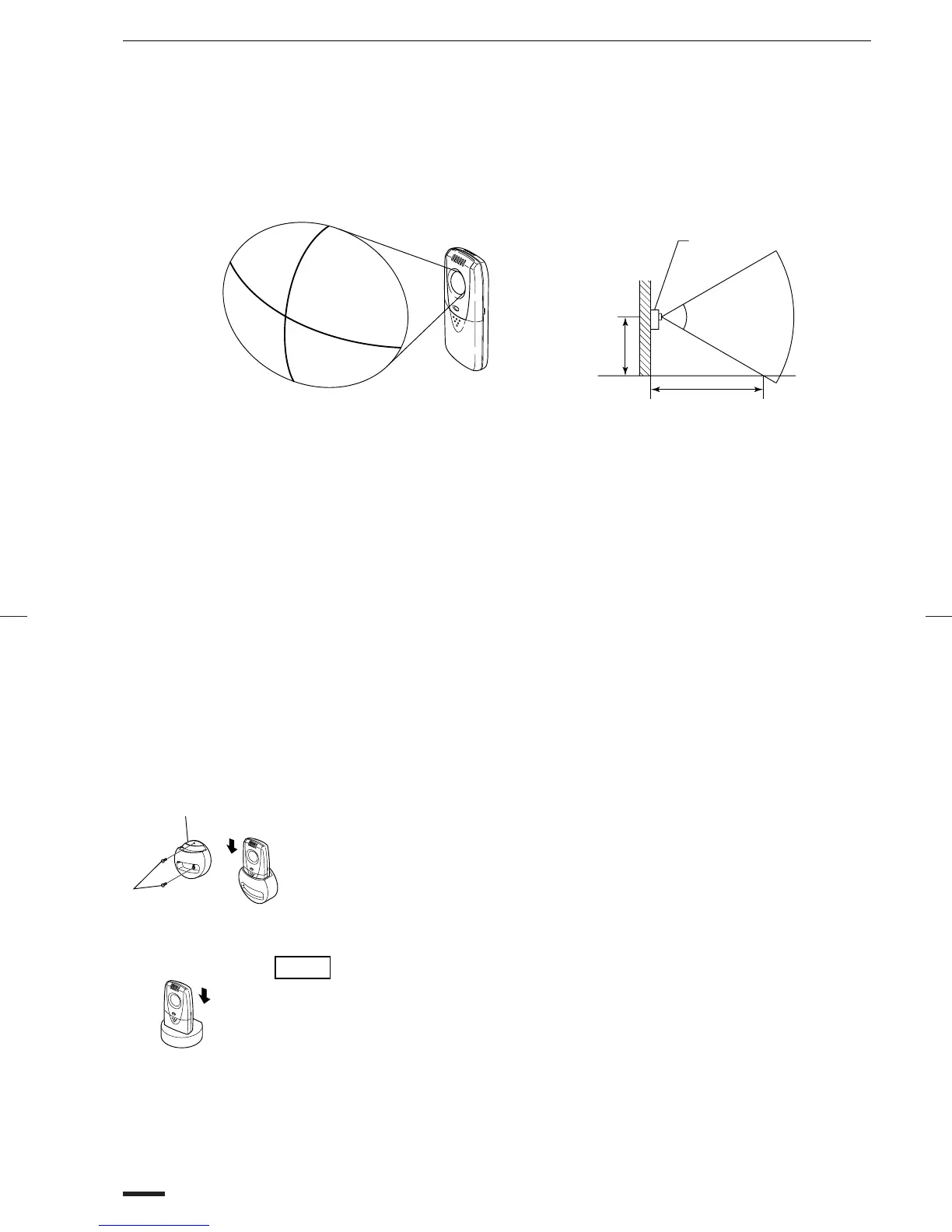

The detection area can be adjusted
using the sensitivity adjustment knob.
Wall
Floor
PEOPLE SENSOR
60°
1.7 m
1m
Using in a wall-
mounted position
Mounting
screws4x16
(included)
People
Sensor
mount
Set in
place
Using in a stand-
alone position
Set in
place
16 OI-275-16EG
OI275000
To Next Page
