Unit Display and Operation Selector
Remote Control receiver This section picks up infrared signals from the remote control
unit (transmitter).
Operation selector
ON position This position is for operating the air conditioner with the
wireless remote control unit.
Set the selector normally in this position.
OFF position Switch the selector to the OFF position if you are not going to
use the air conditioner for a few days or longer.
The OFF position does not disconnect the power. Use the main
power switch to turn off power completely.
TEST and DEMO.
position
This position is used only when servicing the air conditioner.
CAUTION
Do not set at the TEST and DEMO. position for normal
operation.
OPERATION lamp This lamp lights when the system is in the continuous DRY,
COOL, FAN and HEAT mode.
TIMER lamp This lamp lights when the system is being controlled by the
timer.
DEMO.
TEST
ON
OFF
RESET
FILTER
CHECK
PEOPLE
SENSOR
TIMER
OPERATION
POWER

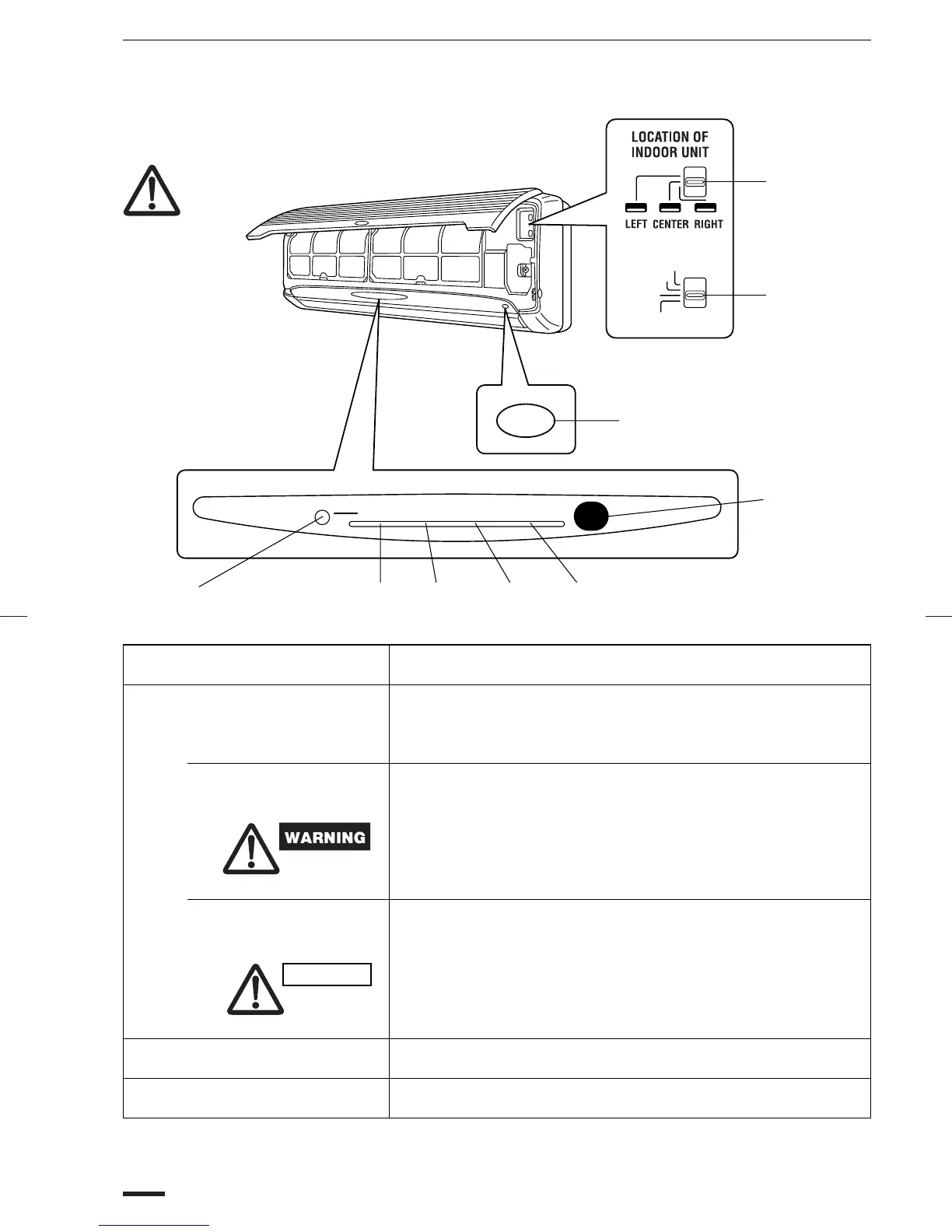

OPERATION lampFILTER CHECK
lamp
Operation
selector
Remote
Control
receiver
INDOOR UNIT
TIMER lamp
IMPORTANT
Avoid using radio
equipment such as
mobile phone near
(within 1 m) the indoor
unit. Some radio equip-
ment may cause mal-
function of the unit.
If the trouble happens,
disconnect power and
restart the air conditioner
after a few minutes.
Filter RESET button PEOPLE
SENSOR
lamp
Air Conditioner
Mounting
Location
selector
POWER switch
6 OI-275-06EG
