Sartorius Cubis MCA225P Series User Manual

Operating Instructions Cubis
®
MCA 117
Technical Data
15.11 Interfaces

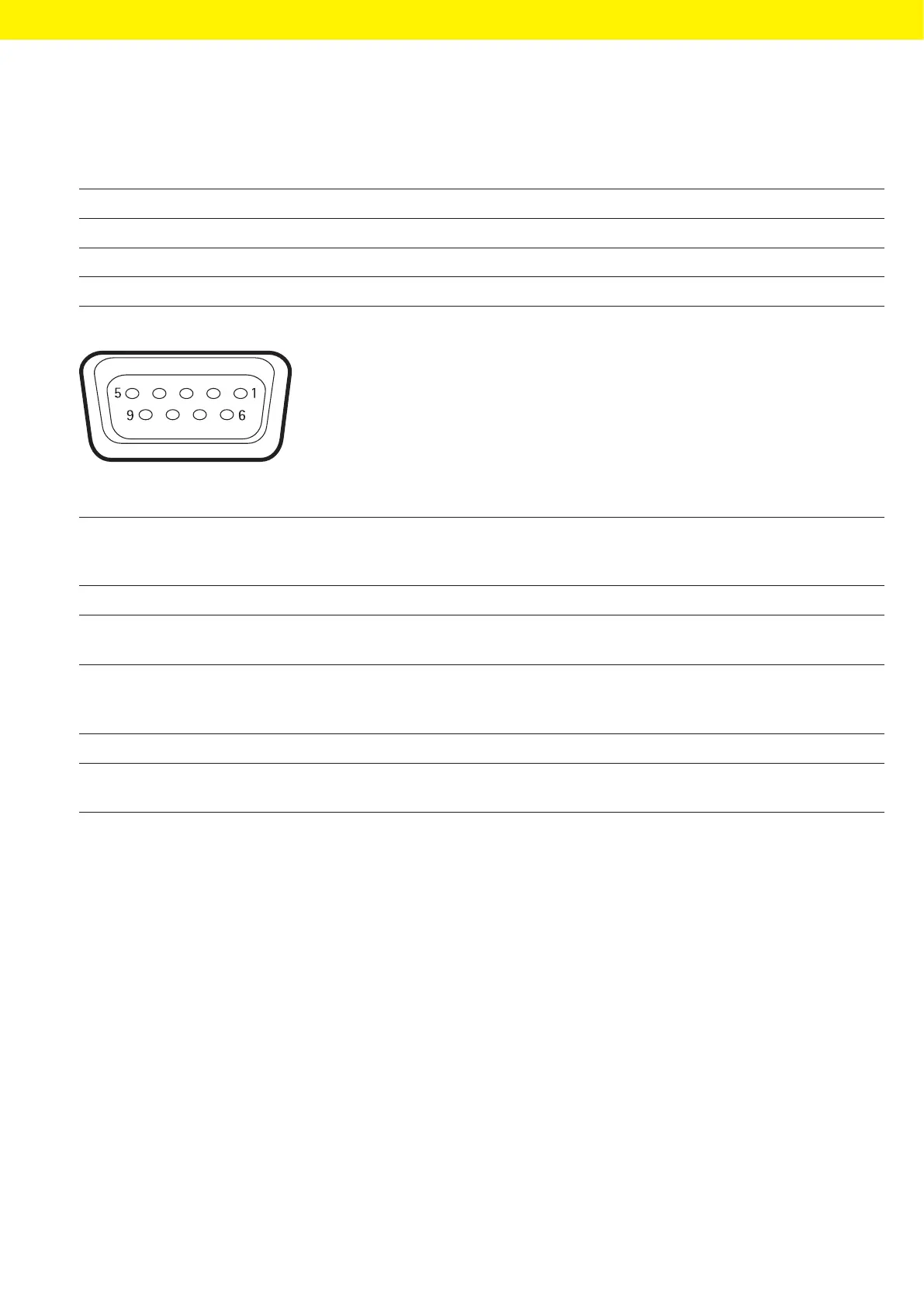

15.11.1 Specifications for the COM-RS232 Interface
Type of interface Serial interface
Interface operation Serial interface
Level RS232
Connection D-sub connector, 9-pin
Pin assignment
Pin 1: Not used
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Not used
Pin 5: Internal ground
Pin 6: Not used
Pin 7: Clear to Send (CTS)
Pin 8: Request to Send (RTS)
Pin 9: Not used
15.11.2 Specifications for the USB-A Interface
Communication USB host (master)
Connectable devices Sartorius printers, USB memory sticks, USB barcode scanners,
USBkeyboards
15.11.3 Specifications for the USB-B Interface
Communication USB device (slave)
Type of interface Virtual serial interface (virtual COM-port, VCP) and “PC direct”
communication
