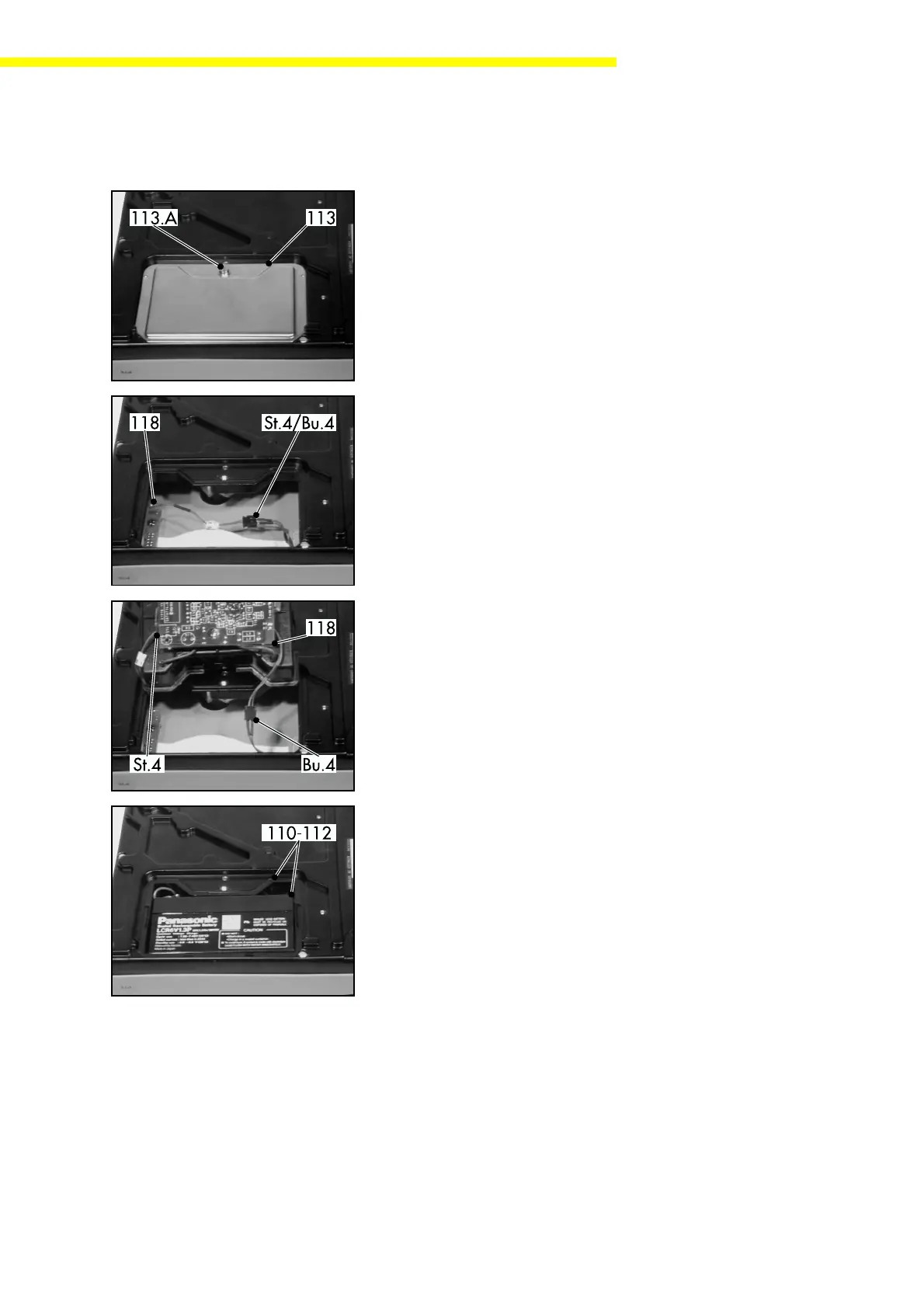

Installing the Rechargeable Battery Pack YRB 01 PT
- Disconnect the balance/scale from AC power.
- Turn the balance/scale over and place it with the pan side facing
downward on a padded surface.
- Remove the screw (113.A) and remove the battery cover plate (113) from
the housing base (115).
- Disconnect the cable (St.4/Bu.4) between the power supply PCB (109)
and the main PCB (118).
- Connect the female connector (Bu.4) and plug (St.4) with the
corresponding male connector and socket on the battery PCB (110).
- Insert the rechargeable battery pack (110 to 112) into the opening of the
housing base (115) and snap into position.
