Chapter 5 Configuring T H E P M 1 3 0 P L U S
Configuring C O M M U N I C A T I O N P R O T O C O LS
106 PM130 PLUS Powermeter Series
The 32-bit Modbus registers are factory-set to integer format. To change
the register format:
1. Select Protocol Setup from the Meter Setup menu, and click on
the Modbus Registers tab.
2. Change the 32-bit register format in the Modbus Options pane.
3. Click Send to download your setup to the meter.
Configuring DNP3
Refer to the PM130 DNP3 Reference guide for information on the DNP3
protocol implementation and a list of the available data points.
DNP Options
Select Protocol Setup from the Meter Setup menu and click on the DNP
Options tab.

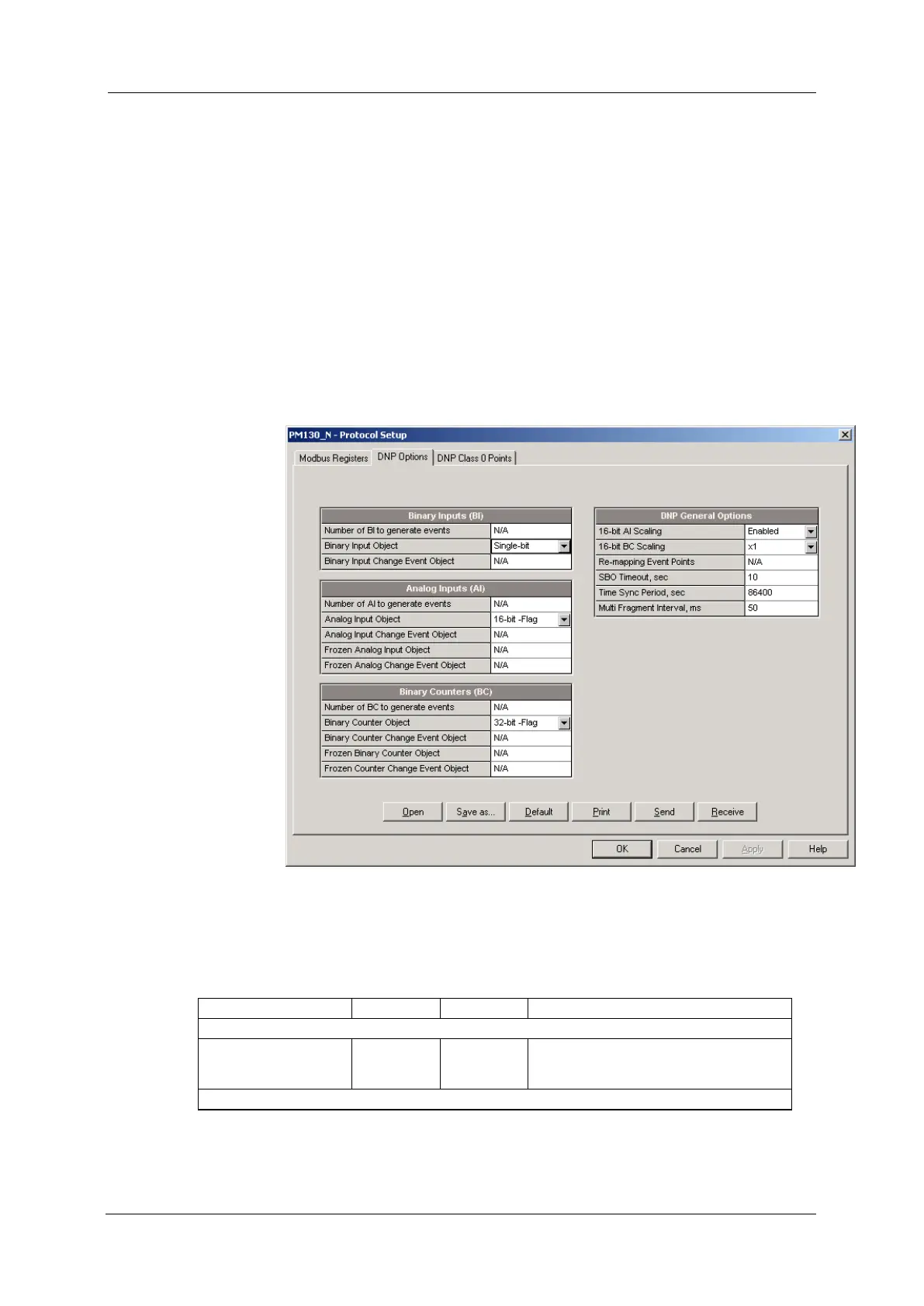

Figure 5-21: Protocol Setup Dialog Box – DNP Options Tab
The following table describes available options. Refer to the DNP3 Data
Object Library document available from the DNP User’s Group on the
DNP3 object types.
Table 30: DNP Options
The default BI object variation for
requests with qualifier code 06 when no
specific variation is requested
