Satec PM130 PLUS User Manual

Chapter 3 Using F R O N T D I S P L A Y Data D I S P L A Y
PM130 PLUS Powermeter Series 49
To stop auto scrolling, press briefly the UP or DOWN button.
Brightness
The PM130 display has a 3-level adjustable brightness. It is normally
preset at the factory to the highest level. You can adjust the display
through the display setup (see Configuring the Display).
Navigation Buttons

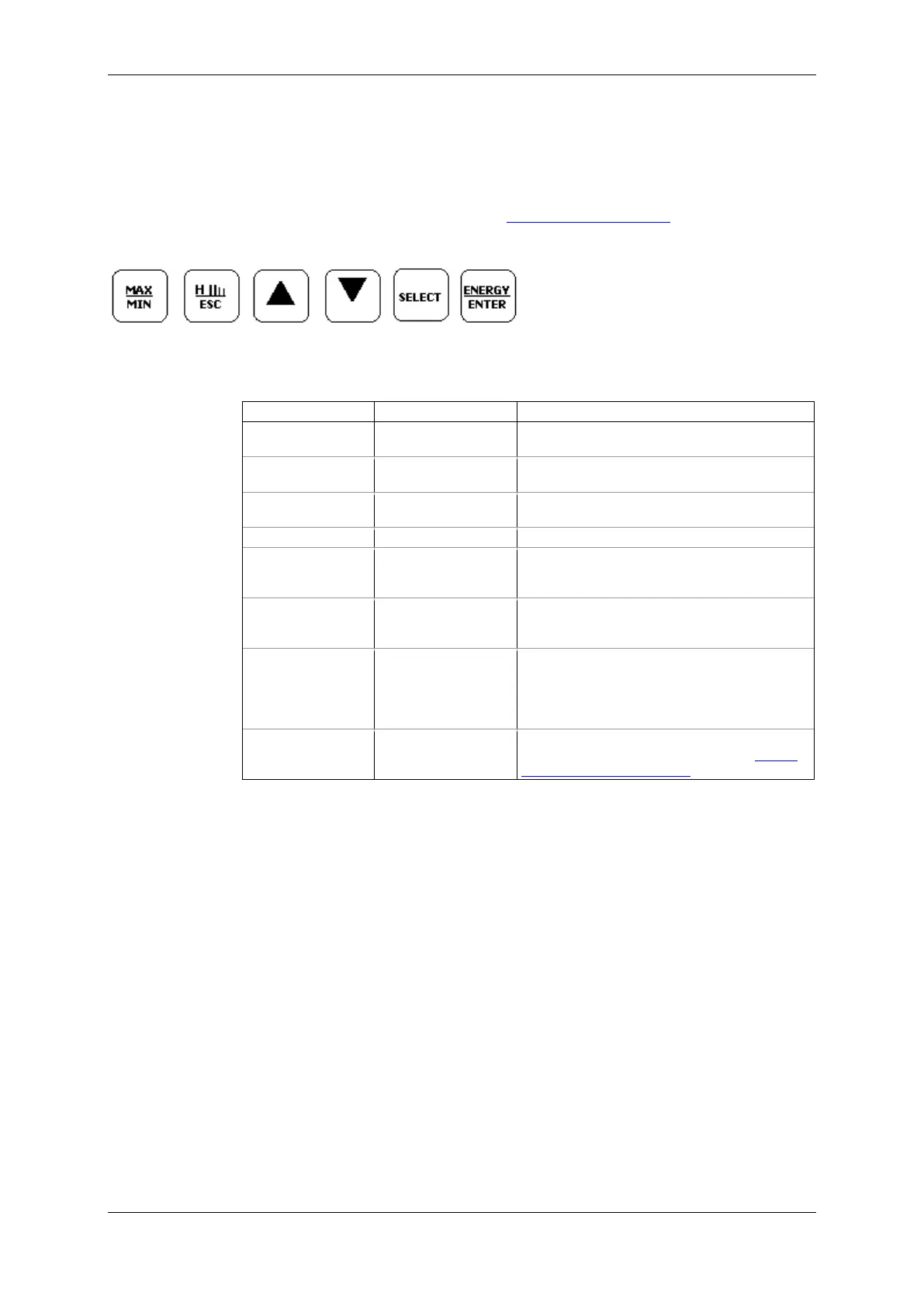

Figure 3-2: Navigation Buttons
See the following table for button operations in data display mode.
Button
Action
Operations
UP
Press and release
Scroll through pages backwards. Hold down
the button for continuous scrolling.
DOWN
Press and release
Scroll through pages forwards. Hold down the
button for continuous scrolling.
UP + DOWN
Press and release
Return to the start page within a present
display.
SELECT
Press and release
Enter programming mode.
MAX/MIN
Press and release
Enter (return from) the minimum/maximum
display. Switch between the Max/Min and
Maximum Demands displays.
H/ESC
Press and release
Enter (return from) the harmonics display.
Switch between the Total Harmonics and
Individual Harmonics displays.
ENERGY/ENTER
Press and release
Enter (return from) the energy display.
Switch between the total and per phase
energy display and TOU registers display (if
configured). The button is not operational in
the PM130P.
SELECT +
ENERGY/ENTER
(in selected pages)
Press and hold for 5
seconds or longer
Reset accumulators or minimum/maximum
on the currently displayed page (see Simple
Reset of Accumulated Data below).
Simple Reset of Accumulated Data
You can clear the Min/Max log, maximum demands or energies from the
data display mode without accessing the reset menu with the simple “two-
button” reset option:
1. Select a display page where the data you want to reset is displayed:
 Min/Max log: select a Min/Max page from the Min/Max Display
 Ampere and volt maximum demands: select the Ampere or Volt
maximum demand page from the Min/Max Display.
 Power maximum demands: select the power maximum demand page
from the Min/Max Display.
 Total and phase energies: select a total energy, or a phase energy
page from the Energy Display.
2. While holding the SELECT button down, press and hold the ENTER
button for about 5 seconds.
The displayed data is reset to zero.
