Chapter 2 Installation Electrical I N S T A L L A T I O N

32 PM130 PLUS Powermeter Series

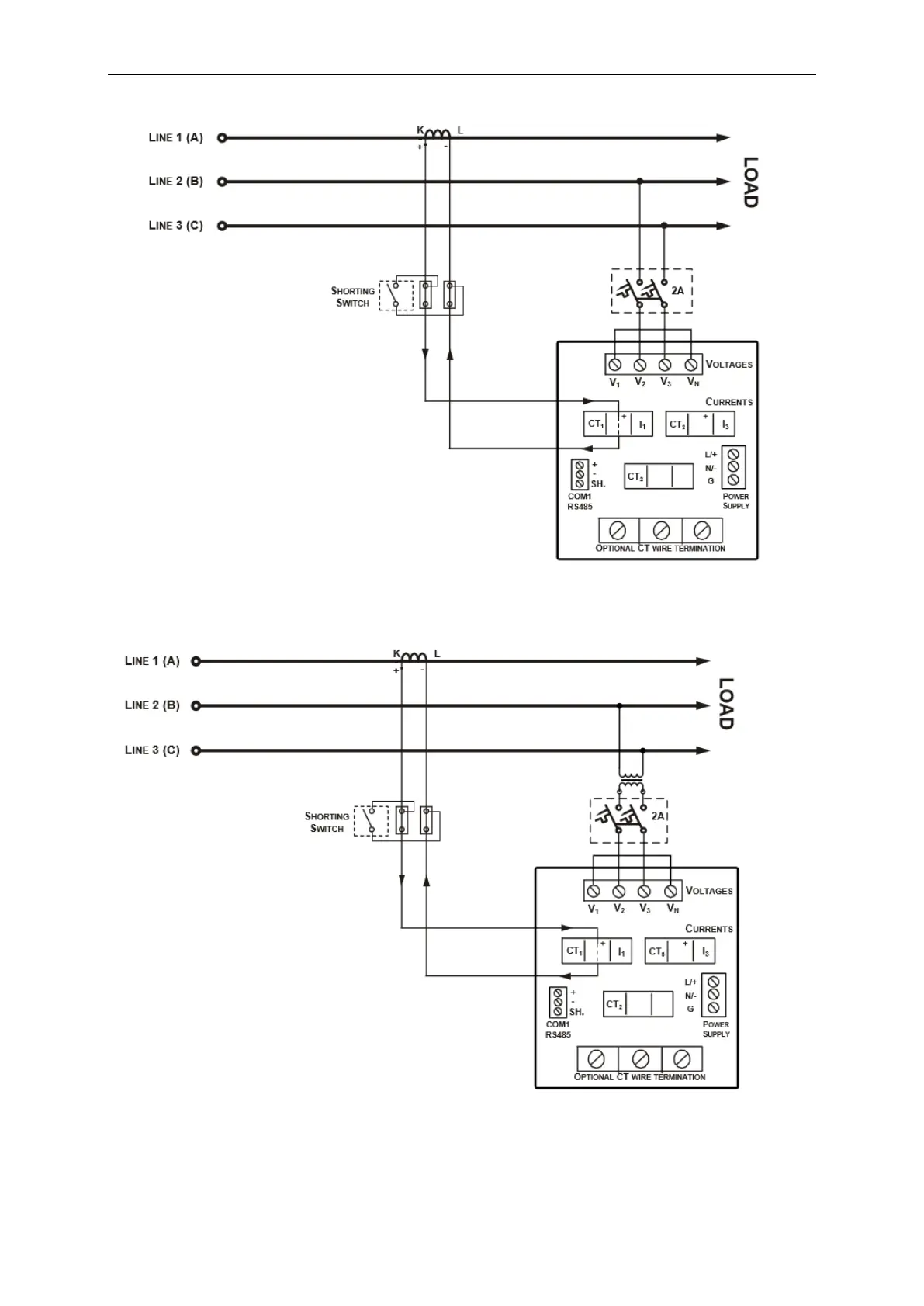

Figure 19: 3-wire/4-wire connection using the current from one phase (1 CT) and the V23

voltage with V1 connected to Neutral (Wiring mode = 1LL3)

Figure 20: 3-wire/4-wire connection with PT using the current from one phase (1 CT) and the

V23 voltage with V1 connected to Neutral (Wiring mode = 1LL3)
