4 PM130 PLUS Powermeter Series
Quick Start Guide
This section can be used by a licensed electrician to install and perform basic PM130 PLUS setup.
For more detailed PM130 PLUS setup and use instructions, see the following chapters in this
manual.
This quick start guide will assist you to have the unit running for the first time.
During the operation of the meter, hazardous voltages are present in the input terminals. Failure to
observe precautions can result in serious or even fatal injury, or damage to equipment.
For complete and accurate in-depth instructions, refer to the following chapters in this manual.
1. Installing the PM130 PLUS
Mounting the PM130 PLUS Unit
To mount the PM130 PLUS:
1. Position the PM130 PLUS unit in the square or round cutout. If two PLM130
PLUS are positioned side by side, take care of proper interval between
them.
2. Attach the PM130 PLUS unit using washers and nuts. Make sure that the
unit is securely attached into the wall or cabinet fixture.

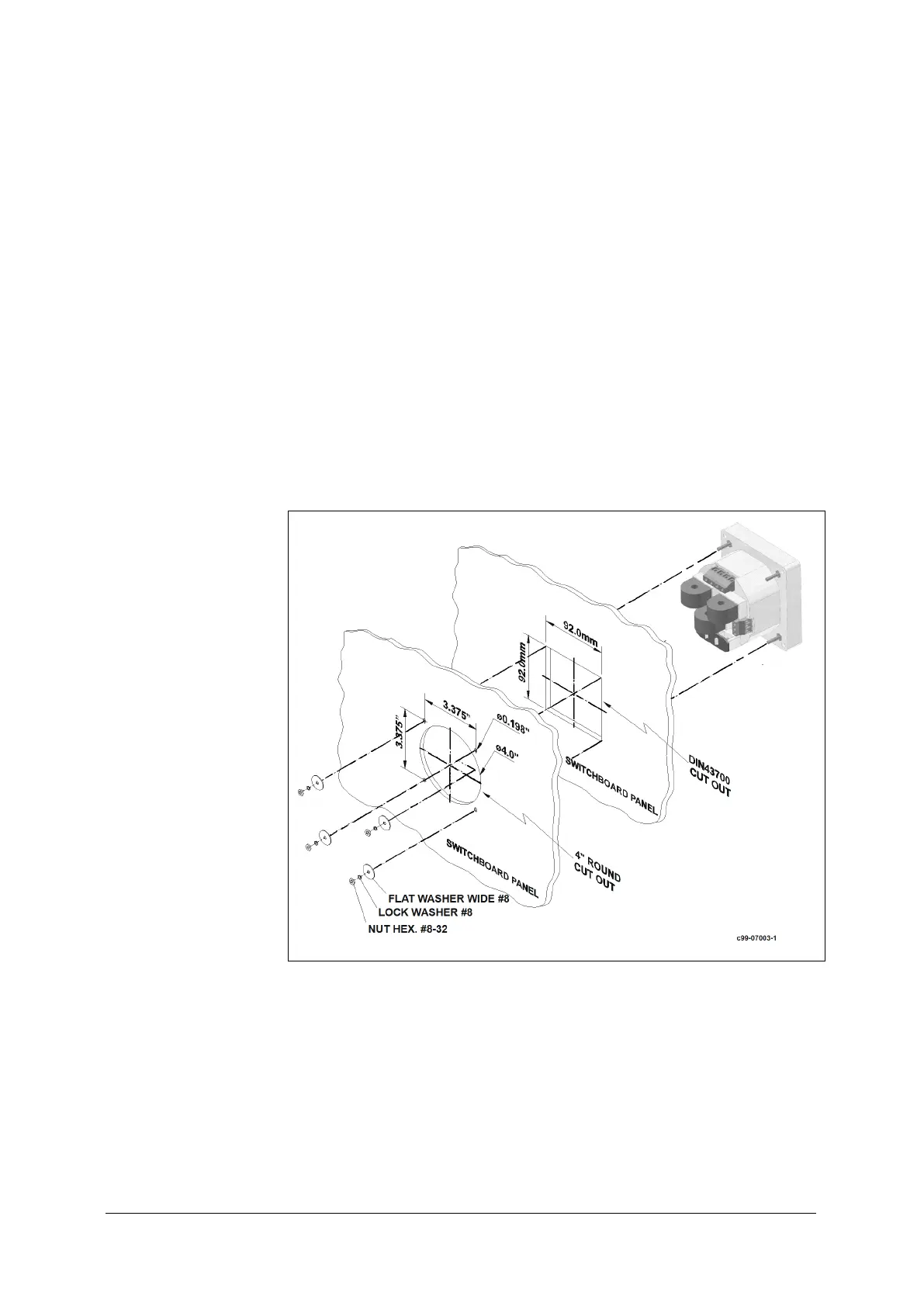

Mounting the PM130 PLUS (Square or Round Cut-out)
