Chapter 4 Using P A S S O F T W A R E Creating A N E W S I T E F O R Y O U R M E T E R
62 PM130 PLUS Powermeter Series

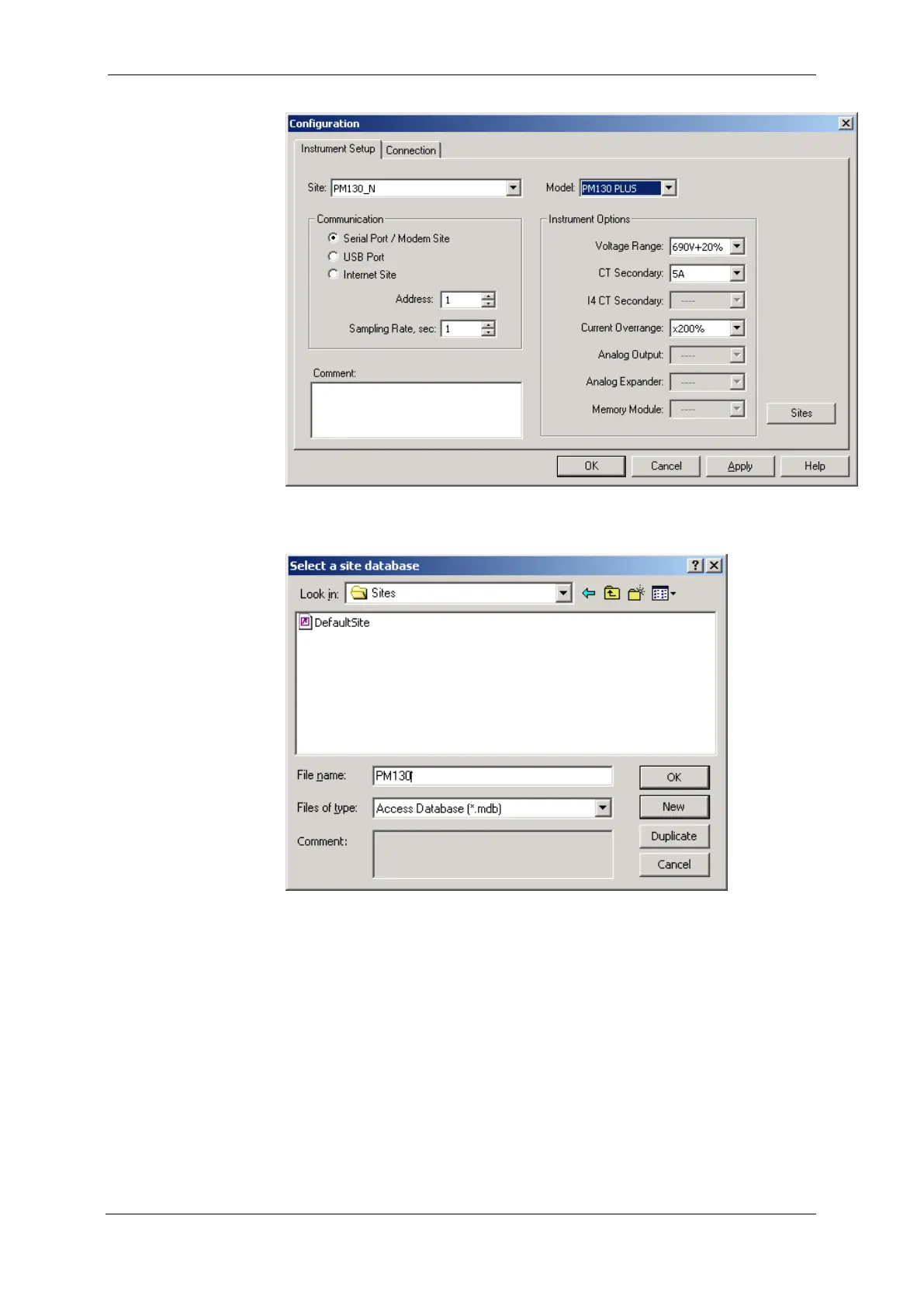

Figure 4-1: Configuration Dialog Box – Instrument Setup Tab
2. Click the Sites button on the right-hand-side.
3. From the Look in box, select the directory where a new database will
be stored. By default, it is the Sites directory.
4. Type a site name for your device in the File name box, click New,
and then click OK.
5. On the Instrument Setup tab, select PM130 PLUS in the Model
box. PAS automatically selects the appropriate instrument options for
your meter.
6. Select a correct CT secondary current (5A or 1A) for your meter.
7. If you wish to add any comments for your meter, type the comments
in the Comment box.
