4 PM135 Powermeter Series
Quick Start Guide
This section can be used by a licensed electrician to install and perform basic
PM135 setup. For more detailed PM135 setup and use instructions, see the
following chapters in this manual.
This quick start guide will assist you to have the unit running for the first
time.
During the operation of the meter, hazardous voltages are present in
the input terminals. Failure to observe precautions can result in
serious or even fatal injury or damage to equipment.
For complete and accurate in-depth instructions, refer to the following
chapters in this manual.
1. Installing the PM135
Mounting the PM135 Unit
To mount the PM135:
1. Position the PM135 unit in the square or round
cutout. If two PM135 are positioned side by side,
take care of proper interval between them.
2. Attach the PM135 unit using washers and nuts. Make
sure that the unit is securely attached into the wall
or cabinet fixture.

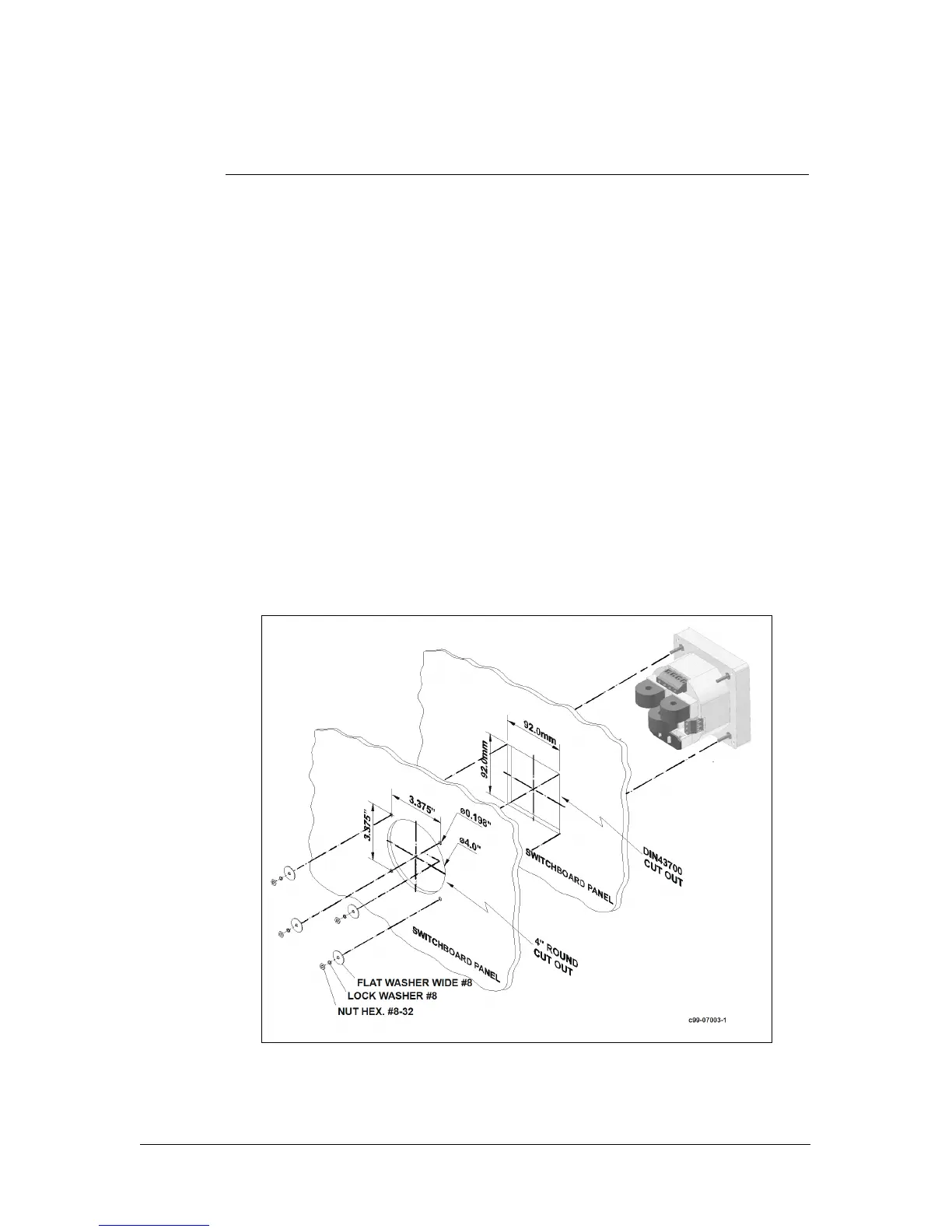

Mounting the PM135 (Square or Round Cut-out)
