Satel ETHM-1 Plus User Manual

8 ETHM-1 Plus SATEL
Gateway – IP address of the network device through which the other devices in the local
network can communicate with devices in other networks.
Obtain DNS server address automatically [DHCP-DNS] – if this option is enabled, the
DNS server IP address is downloaded automatically from the DHCP server. The option is
available, when the OBTAIN IP ADDRESS AUTOMATICALLY (DHCP) option is enabled.
DNS server – IP address of the DNS server which is to be used by the module. It can be
programmed, if the OBTAIN DNS SERVER ADDRESS AUTOMATICALLY option is disabled.

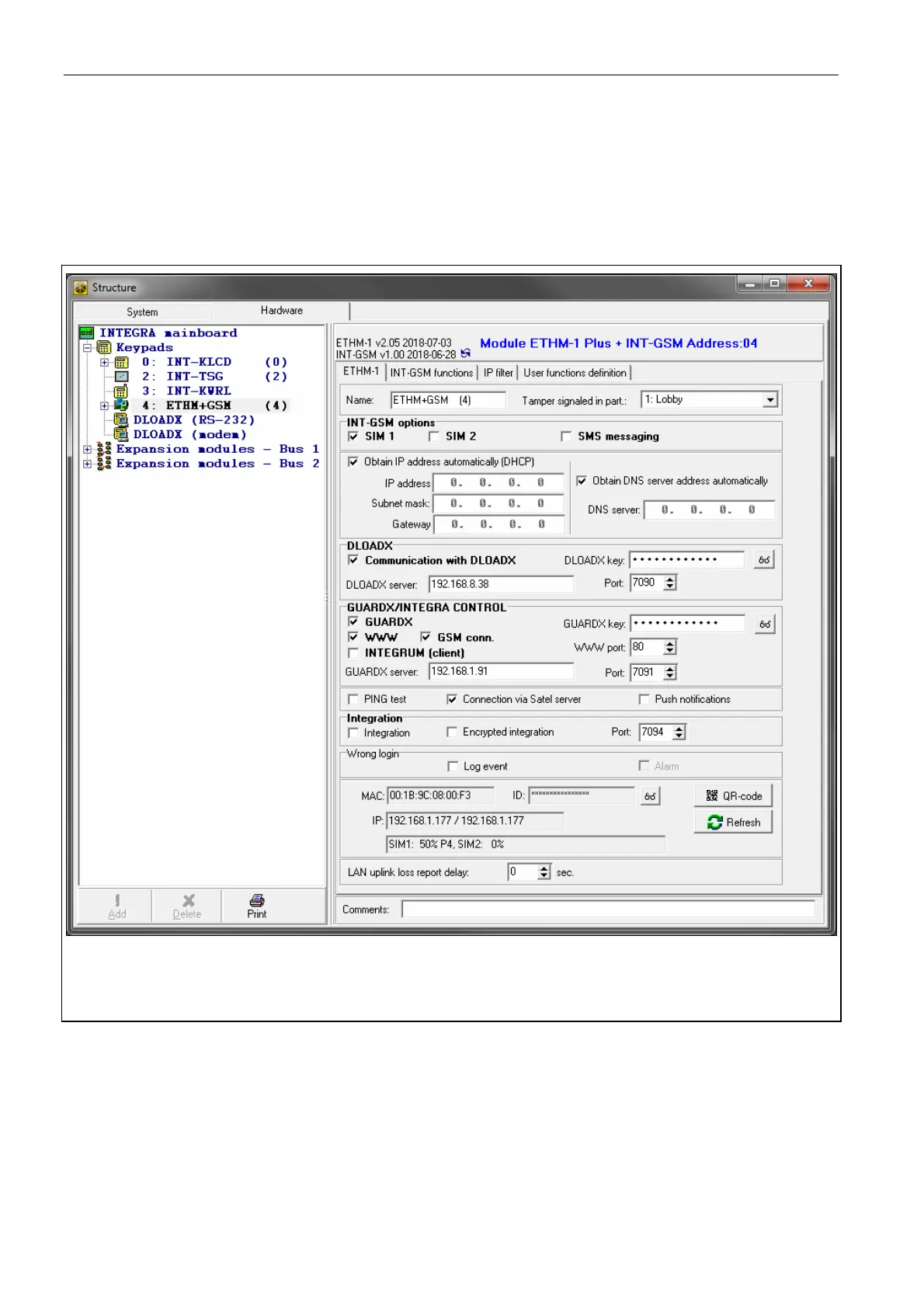

Fig. 6. DLOADX program: settings of the module connected to INTEGRA / INTEGRA Plus
control panel (module is identified as “ETHM+GSM” – INT-GSM module is connected to
ETHM-1 Plus module).
DLOADX
Communication with DLOADX [Connect DLOADX] – if this option is enabled, connection
can be established between the DLOADX program and the alarm control panel via the
module.
DLOADX key [Key (DLOADX)] – a string of up to 12 alphanumeric characters (digits, letters
and special characters) used for data encryption during communication with the DLOADX
program via module.

Satel ETHM-1 Plus Specifications

Power

supply voltage	12 V DC ±15%
standby current consumption	70 mA
maximum current consumption	80 mA

Operating Environment

environmental class	II
operating temperature range	-10 to +55 °C
maximum humidity	93±3%

Weight and Dimensions

dimensions	68 x 140 mm
weight	64 g
